Switch - 2nd Row - LH (6 Seat) - Remove And Replace: Remove

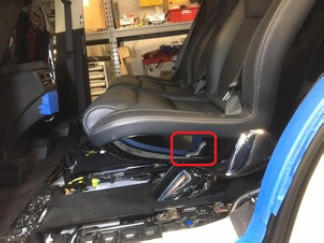

Remove the LH 2nd row seat underbelly trim. See TRIM - UNDERBELLY - 2ND ROW SEAT - LH (6 SEAT) (REMOVE AND REPLACE) .

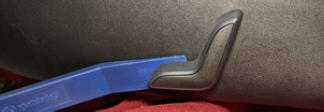

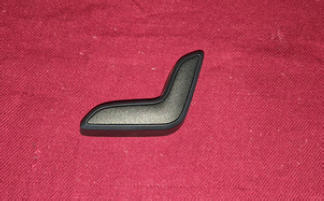

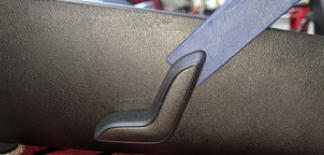

Use a plastic trim tool to release the LH 2nd row seat adjust button from the underbelly trim, and then remove the button from the trim.
NOTE: Release the button from both ends.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

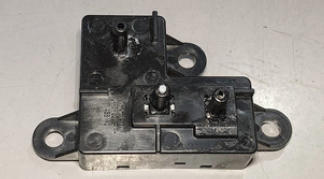

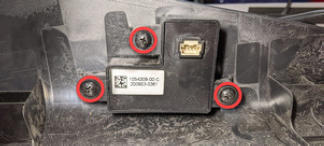

Remove the screws (x2) that attach the LH 2nd row switch to the underbelly trim, and then remove the switch from the trim.
2 N.m (1.5 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- PH2 screwdriver
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
