Slider - Seat - 2nd Row - LH (6 Seat) - Remove And Replace: Remove
- Open all the doors and lower the front windows.
- Remove the LH 2nd row seat assembly from the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (WITHOUT 2ND ROW BENCH SEATS) (REMOVE AND REPLACE) .

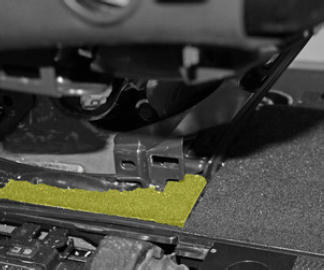

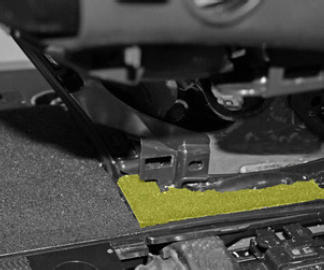

- Remove and discard the LH 2nd row seat surround carpets from the surround trim.

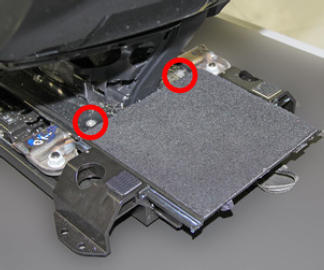

- Remove the screws (x2) that attach the LH 2nd row seat magic carpet to the seat assembly.
2.5 N.m (1.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket

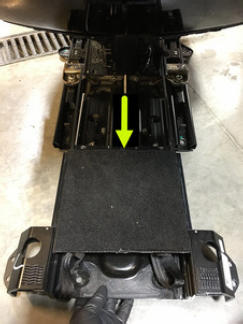

- Release the plastic guides (x2) that attach the magic carpet to the LH 2nd row seat slider, and then remove the carpet from the seat slider.
