Slider - Seat - 2nd Row - LH (6 Seat) - Remove And Replace: Install

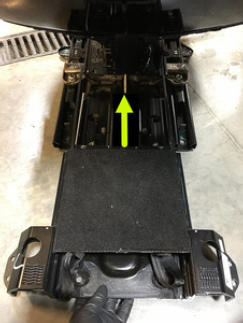

- Position the LH 2nd row seat magic carpet onto the LH 2nd row seat slider, and then align the guides into the surround trim channels.

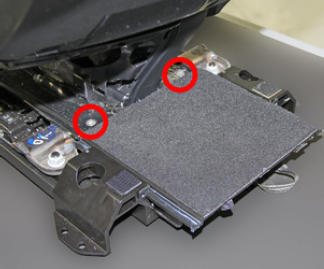

- Install the screws (x2) that attach the LH 2nd row seat magic carpet to the seat assembly.
2.5 N.m (1.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket

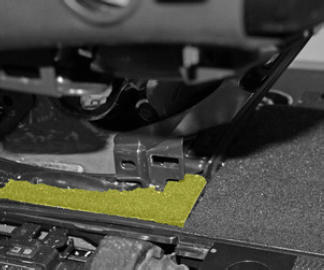

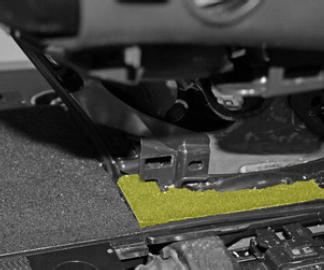

- Install new LH 2nd row seat surround carpets to the surround trim.
- Install the LH 2nd row seat assembly into the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (WITHOUT 2ND ROW BENCH SEATS) (REMOVE AND REPLACE) .
- Raise the front windows and close all the doors.
