Slider - Actuator - 2nd Row (5/7 Seat) - Remove And Replace: Install

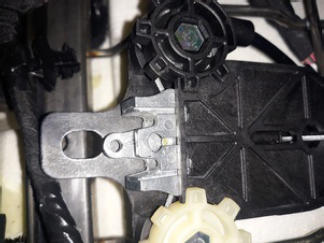

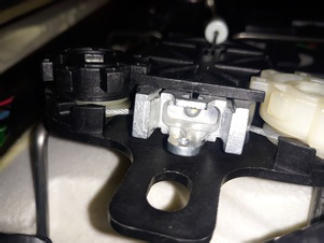

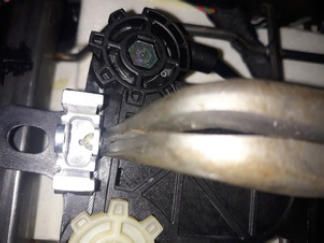

- Position the 2nd row actuator slider vertically on the vehicle, and then install the cable end fitting into the slider opening.CAUTION: Do not kink or damage the cable.NOTE: Use the pliers to hold the cable end fitting in place during slider installation.
Tip: Use of the following tool(s) is recommended:
- Needle nose long bent pliers

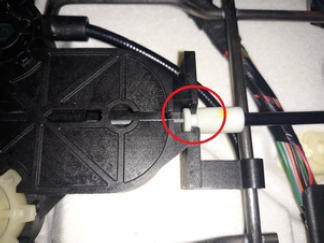

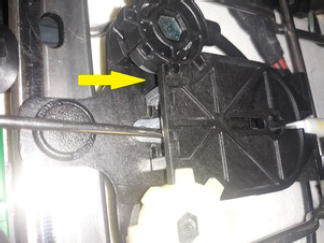

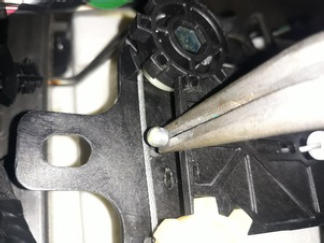

- Attach the 2nd row actuator slider cable to the slider.CAUTION: Do not kink or damage the cable.

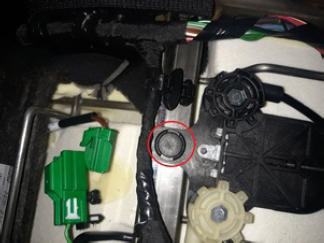

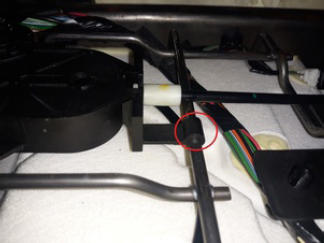

- Install the clips (x2) that attach the 2nd row actuator slider to the seat frame.

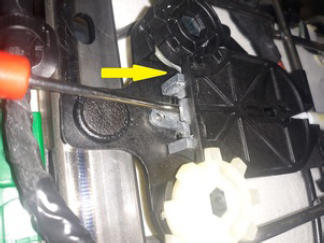

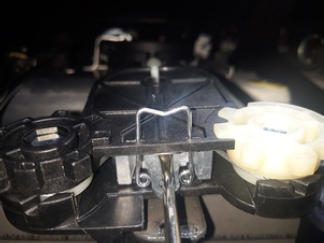

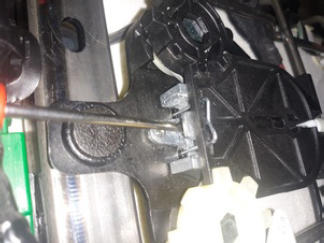

- Apply forward pressure to the 2nd row actuator slider, and then install the new metal clip on the slider.NOTE: Do not deform or damage the clip.NOTE: Use the flat side of the plastic trim tool to aid clip installation. Verify slider operation, ensure proper functionality.
Tip: Use of the following tool(s) is recommended:
- Plastic trim tool
- Small flat head screwdriver

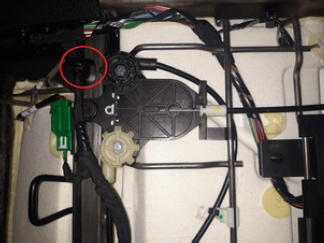

- Install the clip that attaches the seat harness to the seat frame.

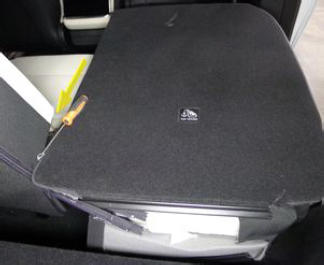

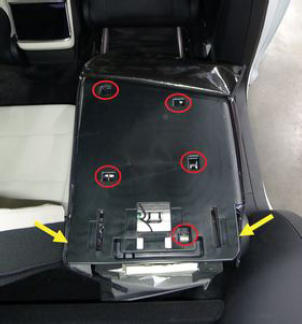

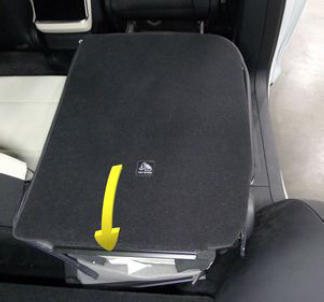

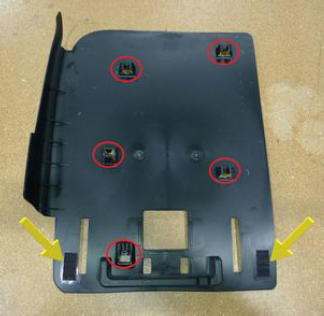

- Position the 2nd row plastic seat back on the seat assembly, and then install the clips (x5) and Velcro strips (x2) that attach the seat back to the seat.NOTE: Fold the backrest cover and attach the corners of the Velcro strips.

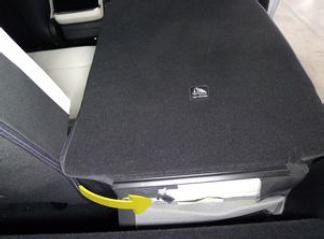

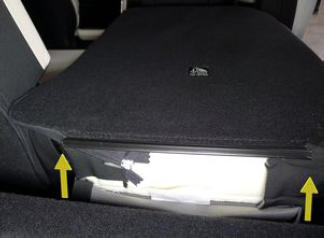

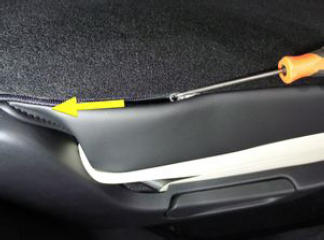

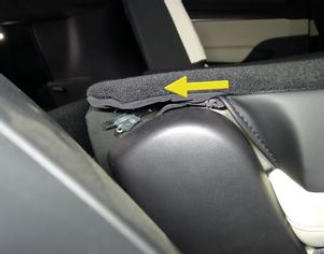

- Zip the 2nd row 40 seat back upholstery on the LH and RH sides of the backrest cover.NOTE: Ensure the ends of the zippers are tucked underneath the seat upholstery. Use a pick to aid in tucking the zippers.
Tip: Use of the following tool(s) is recommended:
- 6 in 90 degree tip miniature soft grip pick

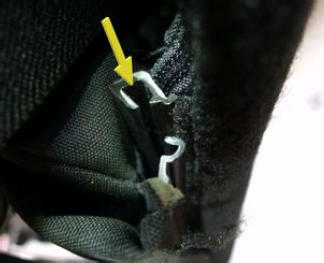

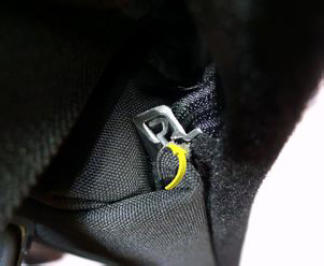

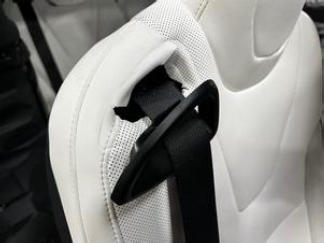

- Install the J-hook that attaches the 2nd row 40 seat back upholstery to the seat.

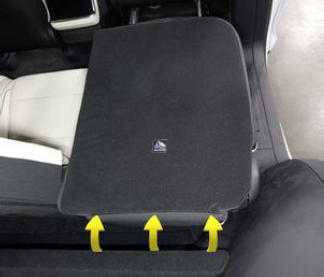

- Unfold the 2nd row 40 seat into original position.

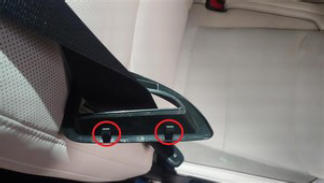

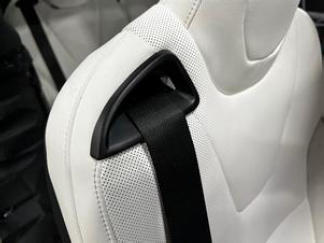

- Starting at the top, carefully install the clips (x2) that attach the 2nd row escutcheon to the seat.
- Close the RH falcon wing door.
- Move the RH front seat into original position.
- Raise the RH front window.
- Close the RH front door.
