Shaft - Inboard - Seat Track Motor - 2nd Row - LH (6 Seat) - Remove And Replace: Install

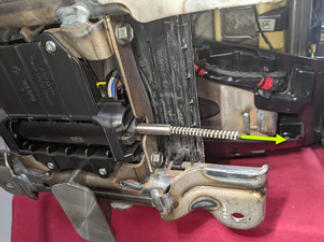

Position the LH 2nd row seat track motor inboard shaft into the seat track motor.

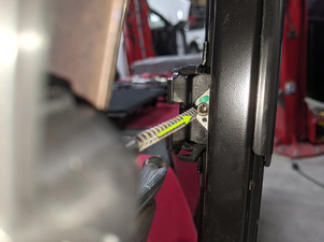

NOTE: The cable is keyed and needs to be installed to align with the seat track motor.

Courtesy of TESLA, INC.

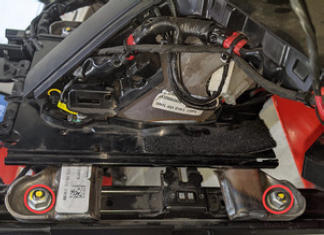

Position the LH 2nd row seat outer track onto the seat assembly, maneuver the track to engage the seat track cable, guide the studs into position, and then install the nuts (x2) that attach seat track to the seat assembly.
30 N.m (22.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 15 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
With assistance, position the LH 2nd row seat upright.
Install the LH 2nd row seat slider. See SLIDER - SEAT - 2ND ROW - LH (6 SEAT) (REMOVE AND REPLACE) .
Install the LH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - LH (WITHOUT 2ND ROW BENCH SEATS) (REMOVE AND REPLACE) .
Raise LH and RH front windows
Close all four doors
