Release Cable - EZ Entry - 2nd Row - RH (7 Seat) - Remove And Replace: Remove

  1. Remove the RH 2nd row seat assembly from the vehicle. See SEAT ASSEMBLY - 2ND ROW - RH (7 SEAT) (REMOVE AND REPLACE) .
  2. Fold the RH 2nd row seat back to the upright position.
  3. Remove the RH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
  4. Remove the RH 2nd row recliner cover. See COVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .

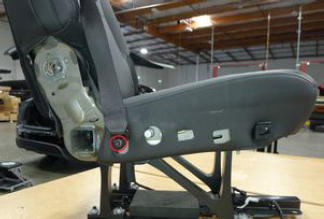

  5. Remove and discard the bolt that attaches the RH 2nd row seatbelt to the seat assembly, and then remove the seatbelt from the assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T50 socket
    G15402443Courtesy of TESLA, INC.

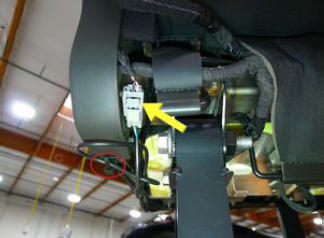

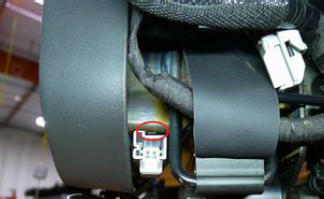

  6. Disconnect the RH 2nd row seatbelt buckle harness connector, and then release the clips (x2) that attach the connector and harness to the seat assembly.
    G15402444Courtesy of TESLA, INC.
    G15402445Courtesy of TESLA, INC.

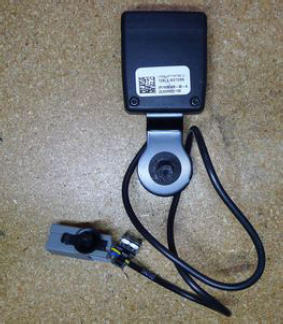

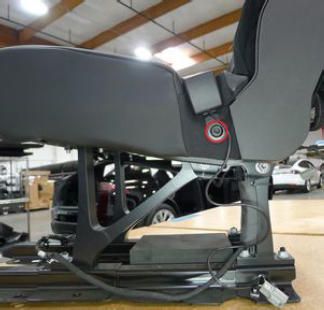

  7. Remove the bolt that attaches the RH 2nd row seatbelt buckle to the seat assembly, and then remove the buckle from the assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T50 socket
    G15402446Courtesy of TESLA, INC.
    G15402447Courtesy of TESLA, INC.

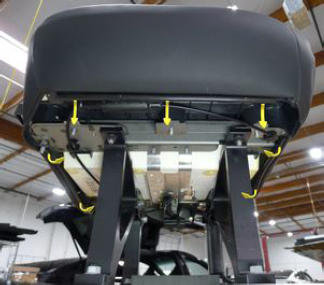

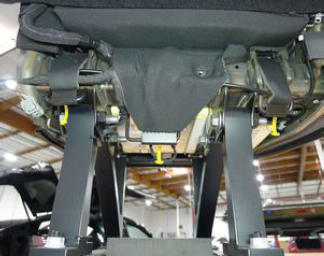

  8. Release the J-clips (x6) that attach the RH 2nd row seat cushion trim to the seat bracket assembly, and then release the trim from the bracket.
    G15402448Courtesy of TESLA, INC.
    G15402449Courtesy of TESLA, INC.

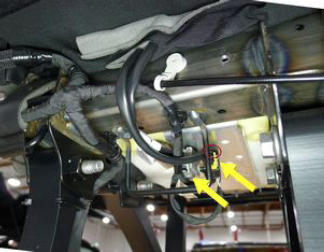

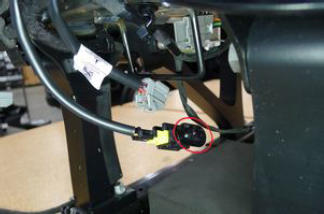

  9. Disconnect the RH 2nd row heater and seat belt reminder electrical connectors, and then release the clip that attaches the harness to the seat assembly.
    G15402450Courtesy of TESLA, INC.
    G15402451Courtesy of TESLA, INC.

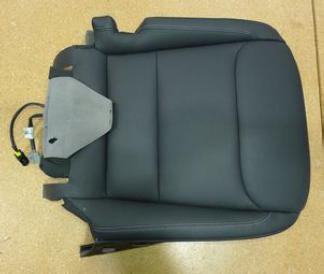

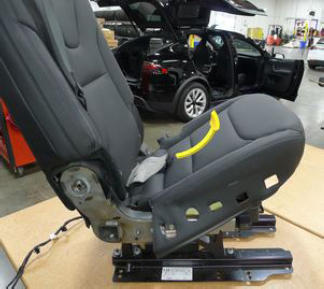

  10. Remove the RH 2nd row seat cushion sub-assembly from the seat assembly.
    NOTE: Guide the harness and tension flaps underneath the seat back.
    G15402452Courtesy of TESLA, INC.
    G15402453Courtesy of TESLA, INC.

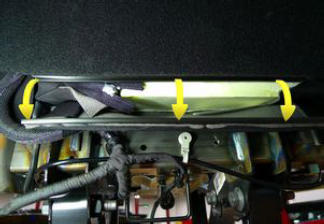

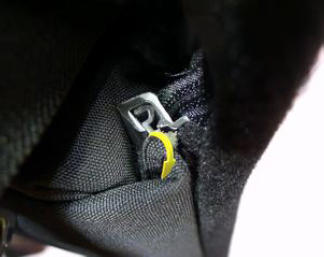

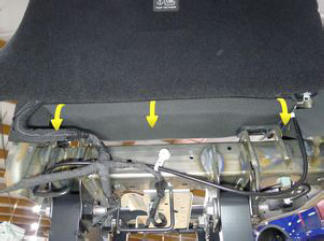

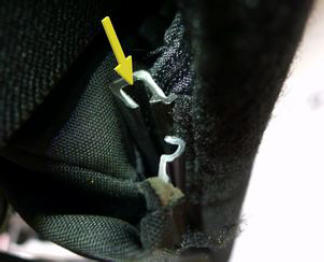

  11. Release the J-hook that attaches the RH 2nd row seat back upholstery to the seat assembly.
    G15402454Courtesy of TESLA, INC.
    G15402455Courtesy of TESLA, INC.
    G15402456Courtesy of TESLA, INC.
    G15402457Courtesy of TESLA, INC.

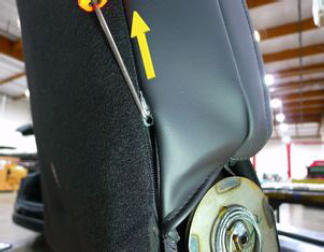

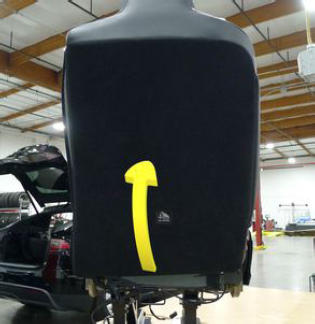

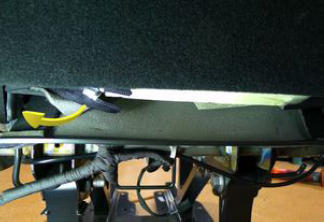

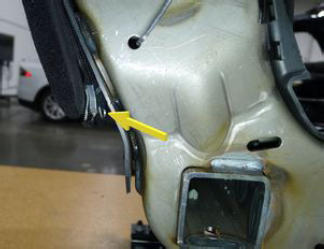

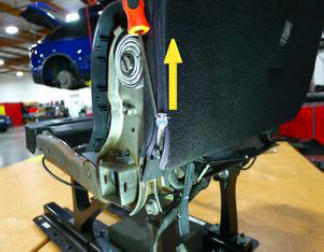

  12. Unzip the RH 2nd row seat back upholstery on LH and RH sides of the backrest cover, release the Velcro strips (x2) that attach the upholstery to the seat back, and then fold the seat back over the headrest for access.
    NOTE: The ends of zippers are tucked underneath the upholstery.

    Tip: Use a pick to help move the zipper.

    G15402458Courtesy of TESLA, INC.
    G15402459Courtesy of TESLA, INC.
    G15402460Courtesy of TESLA, INC.
    G15402461Courtesy of TESLA, INC.
    G15402462Courtesy of TESLA, INC.

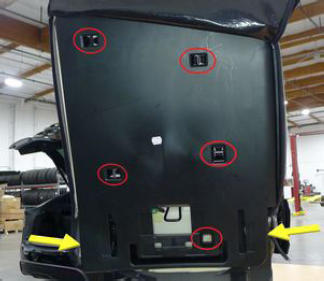

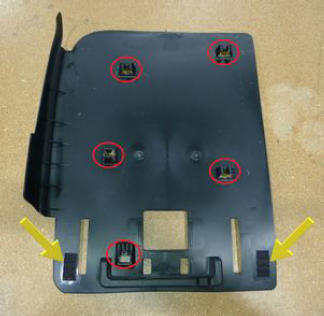

  13. Release the clips (x5) that attach the RH 2nd row seat back plastic to the seat back assembly, and then remove the seat back plastic from the assembly.
    G15402463Courtesy of TESLA, INC.
    G15402464Courtesy of TESLA, INC.
  14. Release the clip that attaches the RH 2nd row seat harness to the seat frame.
    G15402465Courtesy of TESLA, INC.

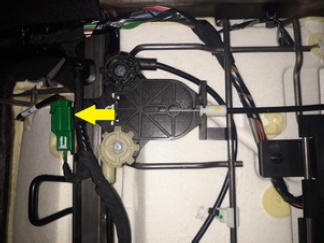

  15. Disconnect the RH 2nd row seat heater electrical connector.
    G15402466Courtesy of TESLA, INC.

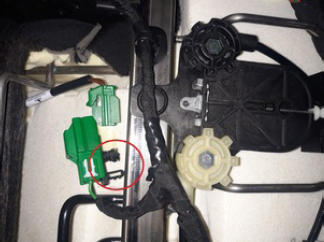

  16. Release the clip that attaches the RH 2nd row seat heater connector to the seat frame.
    G15402467Courtesy of TESLA, INC.

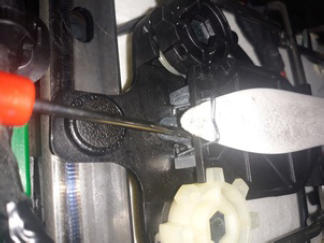

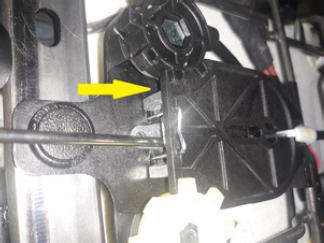

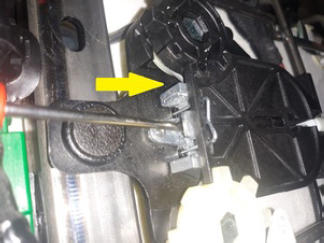

  17. Remove and discard the metal clip from the RH 2nd row seat actuator slider assembly.
    NOTE: Relieve tension on the metal clip by moving the slider inwards into the housing.
    G15402468Courtesy of TESLA, INC.
    G15402469Courtesy of TESLA, INC.
    G15402470Courtesy of TESLA, INC.

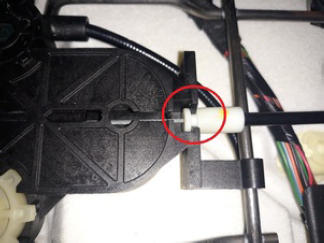

  18. Release the actuator cable from the actuator slide assembly.
    CAUTION: Be careful not to damage the cable locating plastic.
    G15402471Courtesy of TESLA, INC.

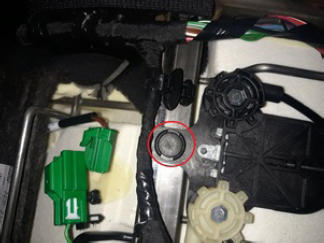

  19. Remove the clip that attaches the RH 2nd row seat actuator slider assembly to the seat frame.
    G15402472Courtesy of TESLA, INC.

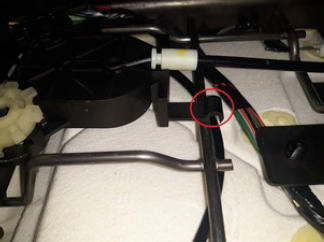

  20. Release the clip that attaches the RH 2nd row seat actuator slider assembly to the seat frame.
    G15402473Courtesy of TESLA, INC.

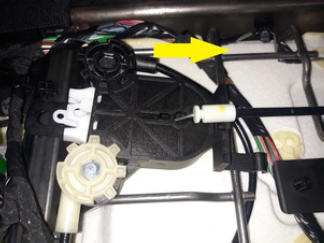

  21. Move the RH 2nd row actuator slider assembly closer to the cable to relieve tension.
    CAUTION: Be careful not to kink or damage the cable.
    G15402474Courtesy of TESLA, INC.

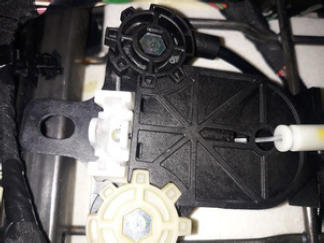

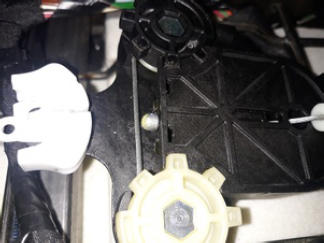

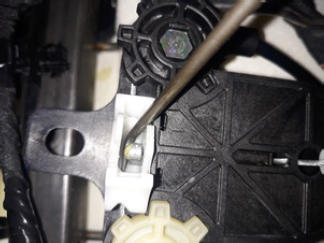

  22. Release the cable end fitting from the slider.
    CAUTION: Be careful not to kink or damage the cable.
    NOTE: Flip slider vertically. Use a 90 degree pick to release the end fitting from the open slot.
    G15402475Courtesy of TESLA, INC.
    G15402476Courtesy of TESLA, INC.
    G15402477Courtesy of TESLA, INC.
    G15402478Courtesy of TESLA, INC.
  23. Fold the RH 2nd row seat back to the upright position.

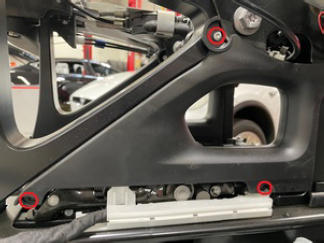

  24. Remove the screws (x3) that attach the inboard seat riser cover to the RH 2nd row outboard seat riser.

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    G15402479Courtesy of TESLA, INC.

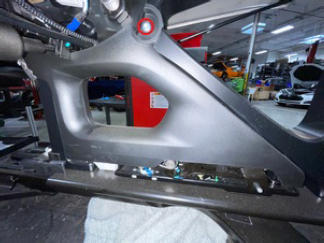

  25. Remove the screw that attaches the outboard seat riser cover to the RH 2nd row outboard seat riser.

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    G15402480Courtesy of TESLA, INC.

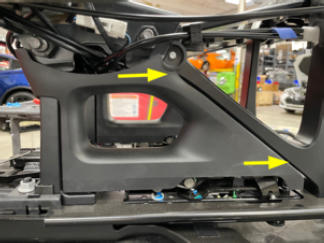

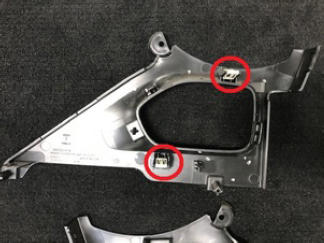

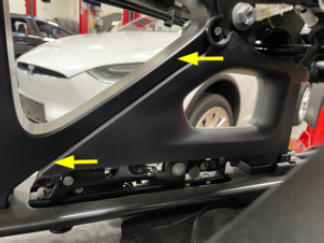

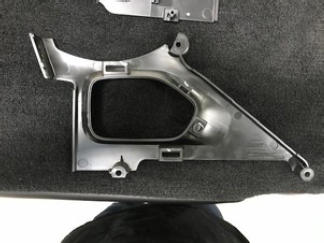

  26. Release the clips (x2) that attach the outboard seat riser cover to the RH 2nd row outboard seat riser, and then remove the inboard and outboard covers from the seat riser.
    G15402481Courtesy of TESLA, INC.
    G15402482Courtesy of TESLA, INC.
    G15402483Courtesy of TESLA, INC.
    G15402484Courtesy of TESLA, INC.

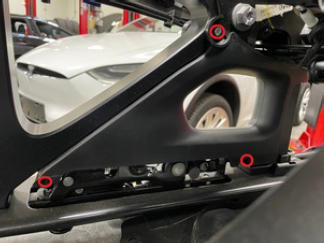

  27. Remove the screws (x3) that attach the inboard seat riser cover to the RH 2nd row inboard seat riser.

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    G15402485Courtesy of TESLA, INC.

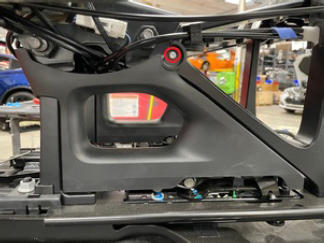

  28. Remove the screw that attaches the outboard seat riser cover to the RH 2nd row inboard seat riser.

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    G15402486Courtesy of TESLA, INC.

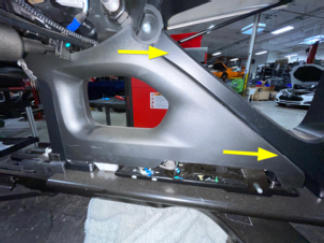

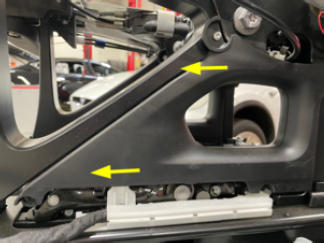

  29. Release the clips (x2) that attach the outboard seat riser cover to the RH 2nd row inboard seat riser, and then remove the inboard and outboard covers from the seat riser.
    G15402487Courtesy of TESLA, INC.
    G15402488Courtesy of TESLA, INC.
    G15402489Courtesy of TESLA, INC.
    G15402490Courtesy of TESLA, INC.

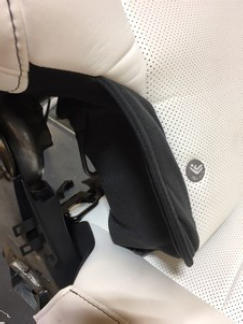

  30. Release the lower portion of the back cushion from the seat frame.
    G15402491Courtesy of TESLA, INC.

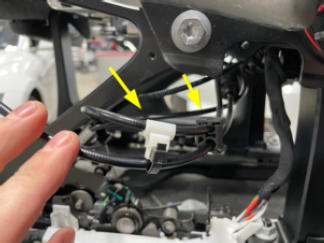

  31. Release the cable clips (x2) from the RH 2nd row seat RH side of the seat riser.
    G15402492Courtesy of TESLA, INC.

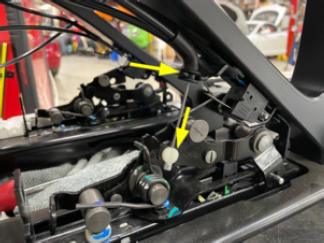

  32. Release the clips (x2) that attach the RH 2nd row EZ entry release cable to the outer track actuator.

    Tip: Use a plastic trim tool to pry the cable clip away from the cable retainer.

    G15402493Courtesy of TESLA, INC.

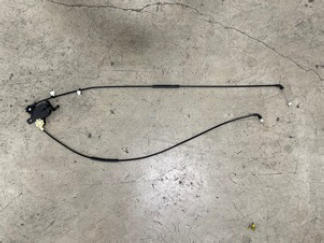

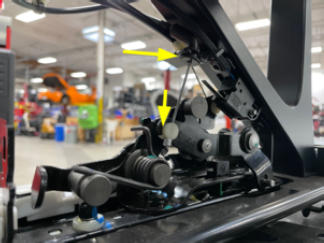

  33. Release the clips (x2) that attach the RH 2nd row EZ entry release cable to the inner track actuator, and then remove the release cable from the seat assembly.

    Tip: Use a plastic trim tool to pry the cable clip away from the cable retainer.

    G15402494Courtesy of TESLA, INC.
    G15402495Courtesy of TESLA, INC.
