Motor - Seat Track - 2nd Row - LH (6 Seat) - Remove And Replace: Remove
- Open all the doors and lower the front windows.
- Remove the LH 2nd row seat assembly from the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (WITHOUT 2ND ROW BENCH SEATS) (REMOVE AND REPLACE) .
- Remove the LH 2nd row seat slider. See SLIDER - SEAT - 2ND ROW - LH (6 SEAT) (REMOVE AND REPLACE) .

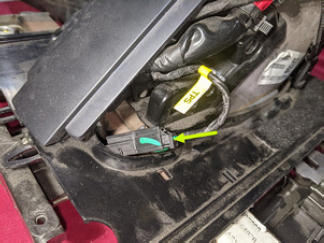

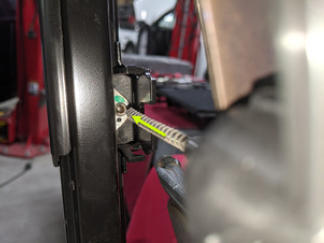

- Disconnect the LH 2nd row seat outer track position sensor electrical connector.

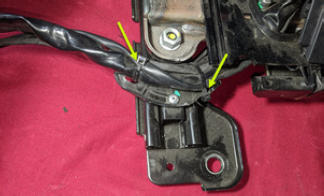

- Cut the zip ties that attach the LH 2nd row seat harness to the harness bracket.
- With assistance, position the LH 2nd row seat onto the seat back.CAUTION: Protect the seat back as necessary.NOTE: Place weight on the upper portion of seat back.

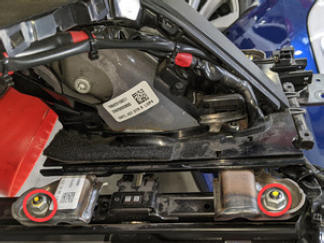

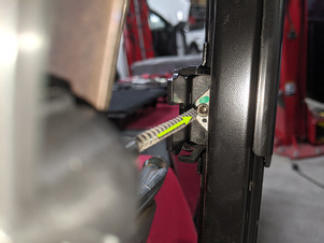

- Remove the nuts (x2) that attach the LH 2nd row seat outer track to the seat assembly, maneuver the track to clear the studs, and then pull the track outward to release the seat track cable.
30 N.m (22.1 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 15 mm socket

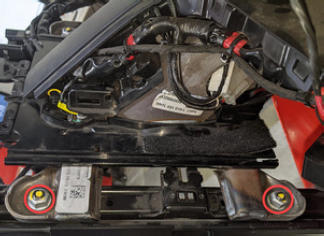

- Remove the nuts (x2) that attach the LH 2nd row seat inner track to the seat assembly, maneuver the track to clear the studs, and then pull the track outward to release the seat track cable.
Tip: Use of the following tool(s) is recommended:
- 15 mm socket

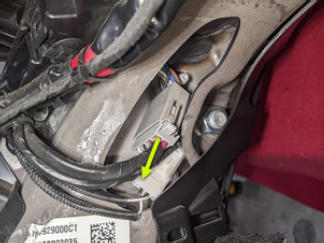

- Disconnect the LH 2nd row seat track motor electrical connector.

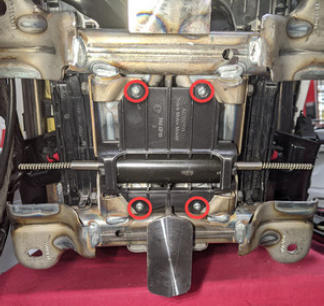

- Remove the screws (x4) that attach the LH 2nd row seat track motor assembly to the angle brackets, and then remove the seat track motor from the brackets.NOTE: Feed the harness through the base of the seat.
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket

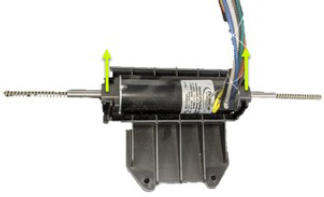

- Lift the LH 2nd row seat track motor assembly upward to remove it from the track motor mount.

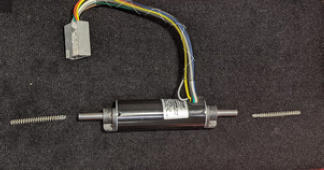

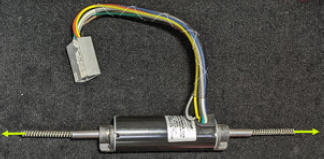

- Pull the track motor cables (x2) outward to remove them from the LH 2nd row seat track motor.
- Remove the rubber grommets (x2) from the LH 2nd row seat track motor.
