Motor - Seat Track - 2nd Row - LH (6 Seat) - Remove And Replace: Install
- Install the rubber grommets (x2) into the LH 2nd row seat track motor.

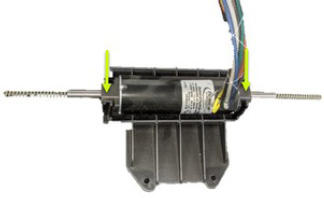

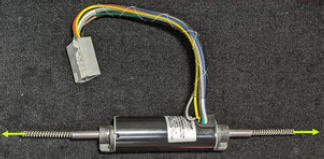

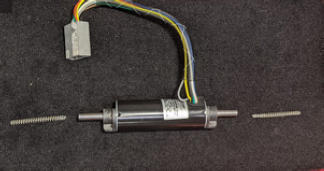

- Install the track motor cables (x2) into the LH 2nd row seat track motor.NOTE: The cables are keyed and need to be installed to align with seat track motor.
- Position the LH 2nd row seat track motor onto the track motor mount, and then slide the motor downward to install it into the motor mount.

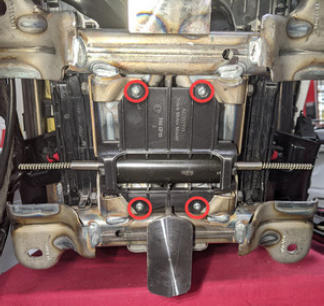

- Install the LH 2nd row seat track motor assembly into the angle brackets, and then install the screws (x4) that attach the seat track motor to the brackets.
4 N.m (2.9 ft-lbs)
NOTE: Feed the harness through the base of the seat.Tip: Use of the following tool(s) is recommended:
- Torx T20 socket

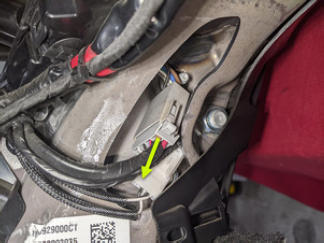

- Connect the LH 2nd row seat track motor electrical connector.

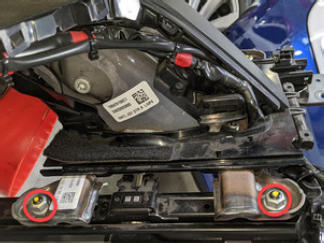

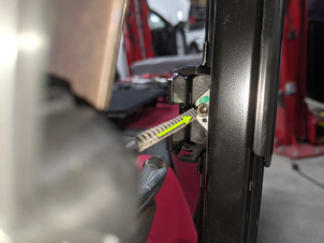

- Position the LH 2nd row seat inner track onto the seat assembly, maneuver the track to engage the seat track cable, guide the studs into position, and then install the nuts (x2) that attach seat track to the seat assembly.
Tip: Use of the following tool(s) is recommended:
- 15 mm socket

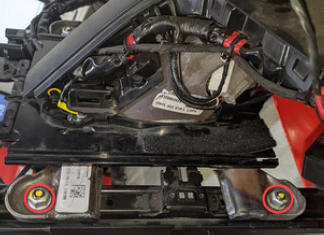

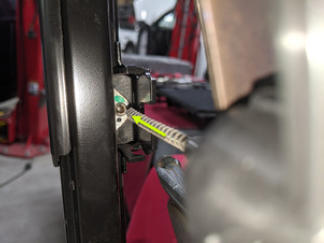

- Position the LH 2nd row seat outer track onto the seat assembly, maneuver the track to engage the seat track cable, guide the studs into position, and then install the nuts (x2) that attach seat track to the seat assembly.
Tip: Use of the following tool(s) is recommended:
- 15 mm socket
- With assistance, position the LH 2nd row seat upright.

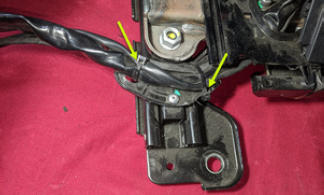

- Install zip ties that attach the LH 2nd row seat harness onto the harness bracket.

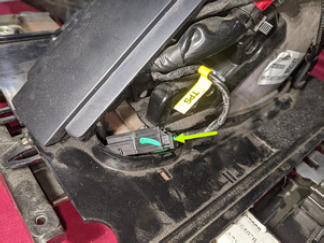

- Connect the LH 2nd row seat outer track position sensor electrical connector.NOTE: Tuck the connector under the front strip to avoid damage when installing the outer cover.
- Install the LH 2nd row seat slider. See SLIDER - SEAT - 2ND ROW - LH (6 SEAT) (REMOVE AND REPLACE) .
- Install the LH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - LH (WITHOUT 2ND ROW BENCH SEATS) (REMOVE AND REPLACE) .
- Raise the front windows and close all the doors.
