Microswitch - EZ Entry - 2nd Row - RH (7 Seat) - Remove And Replace: Remove

  1. Remove the RH 2nd row seat assembly from the vehicle. See SEAT ASSEMBLY - 2ND ROW - RH (7 SEAT) (REMOVE AND REPLACE) .
  2. Fold the RH 2nd row seat back to the upright position.
  3. Remove the RH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
  4. Remove the RH 2nd row recliner cover. See COVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .

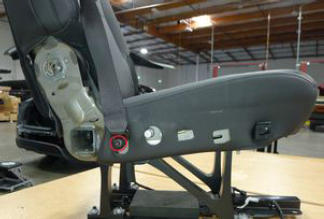

  5. Remove and discard the bolt that attaches the RH 2nd row seatbelt to the seat assembly, and then remove the seatbelt from the assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T50 socket
    G15402254Courtesy of TESLA, INC.

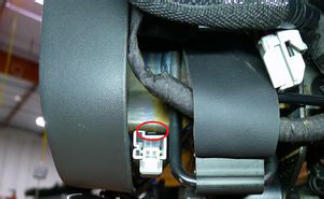

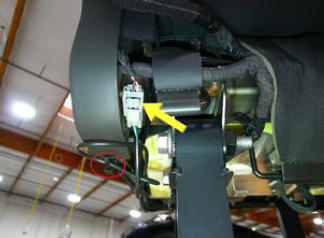

  6. Disconnect the RH 2nd row seatbelt buckle harness connector, and then release the clips (x2) that attach the connector and harness to the seat assembly.
    G15402255Courtesy of TESLA, INC.
    G15402256Courtesy of TESLA, INC.

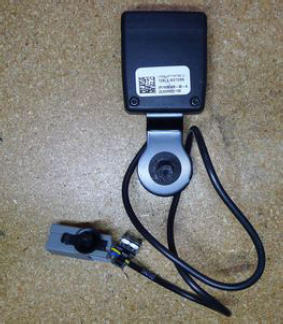

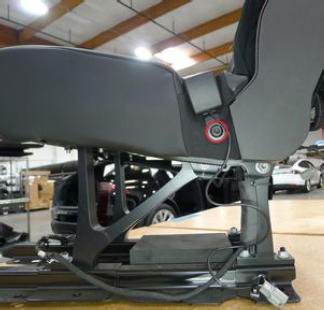

  7. Remove the bolt that attaches the RH 2nd row seatbelt buckle to the seat assembly, and then remove the buckle from the assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T50 socket
    G15402257Courtesy of TESLA, INC.
    G15402258Courtesy of TESLA, INC.

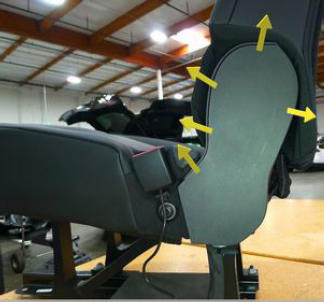

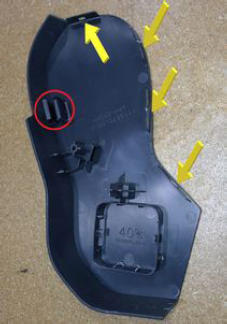

  8. Pull the RH 2nd row seat inner hinge cover away from the seat assembly to release the clip, release the tabs (x4) from bottom up, lift the cover to release top edge from seat frame, and then remove the cover from the seat assembly.
    G15402259Courtesy of TESLA, INC.
    G15402260Courtesy of TESLA, INC.

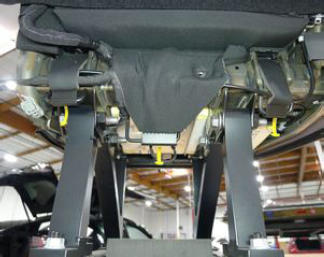

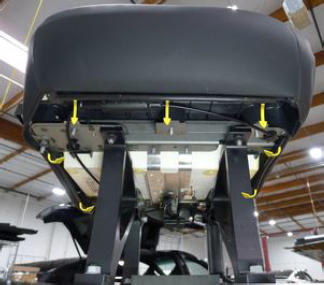

  9. Release the J-clips (x6) that attach the RH 2nd row seat cushion trim to the seat bracket assembly, and then release the trim from the bracket.
    G15402261Courtesy of TESLA, INC.
    G15402262Courtesy of TESLA, INC.

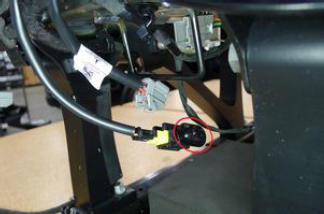

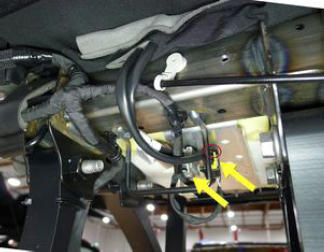

  10. Disconnect the RH 2nd row heater and seat belt reminder electrical connectors, and then release the clip that attaches the harness to the seat assembly.
    G15402263Courtesy of TESLA, INC.
    G15402264Courtesy of TESLA, INC.

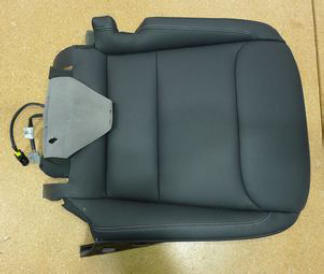

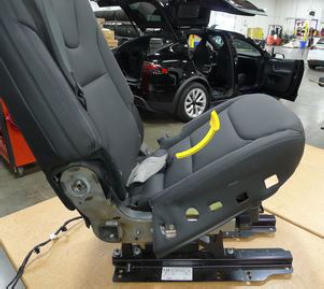

  11. Remove the RH 2nd row seat cushion sub-assembly from the seat assembly.
    NOTE: Guide the harness and tension flaps underneath the seat back.
    G15402265Courtesy of TESLA, INC.
    G15402266Courtesy of TESLA, INC.

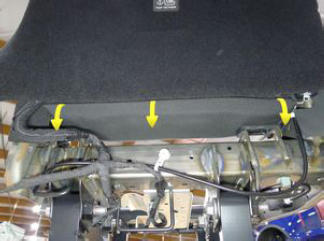

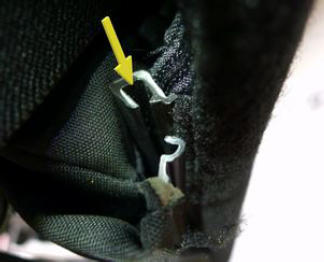

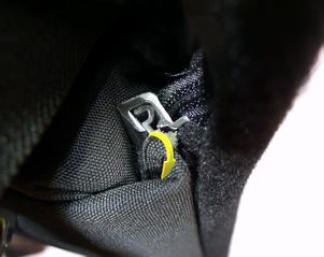

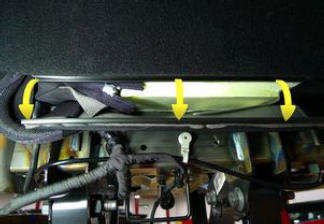

  12. Release the J-hook that attaches the RH 2nd row seat back upholstery to the seat assembly.
    G15402267Courtesy of TESLA, INC.
    G15402268Courtesy of TESLA, INC.
    G15402269Courtesy of TESLA, INC.
    G15402270Courtesy of TESLA, INC.

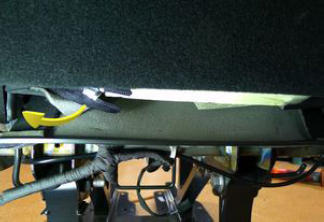

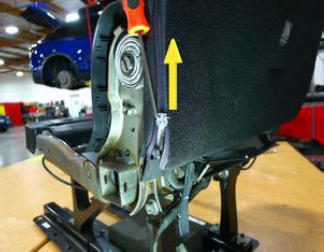

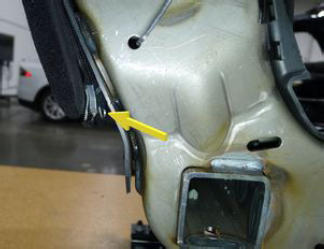

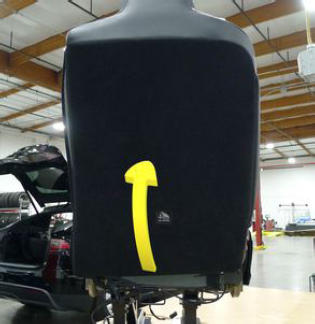

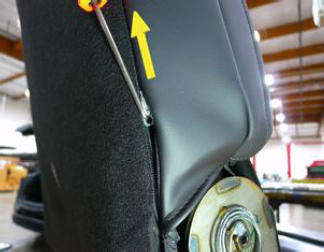

  13. Unzip the RH 2nd row seat back upholstery on the LH and RH sides of the backrest cover, release the Velcro strips (x2) that attach the upholstery to the seat back, and then fold the seat back over the headrest for access.
    NOTE: The ends of zippers are tucked underneath the upholstery.

    Tip: Use a pick to help move the zipper.

    G15402271Courtesy of TESLA, INC.
    G15402272Courtesy of TESLA, INC.
    G15402273Courtesy of TESLA, INC.
    G15402274Courtesy of TESLA, INC.
    G15402275Courtesy of TESLA, INC.

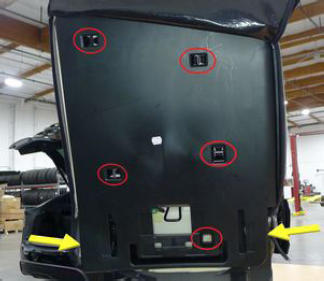

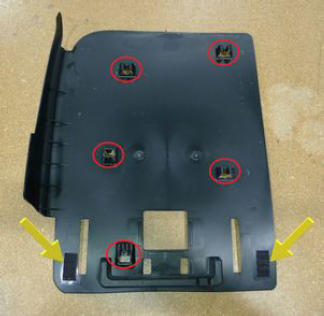

  14. Release the clips (x5) that attach the RH 2nd row seat back plastic to the seat back assembly, and then remove the seat back plastic from the assembly.
    G15402276Courtesy of TESLA, INC.
    G15402277Courtesy of TESLA, INC.

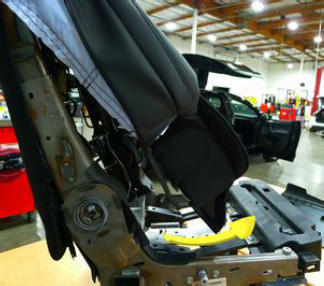

  15. Release the lower portion of the RH 2nd row seat back assembly from the seat frame.
    NOTE: Guide the harness and tension flaps through the seat back frame.
    G15402278Courtesy of TESLA, INC.

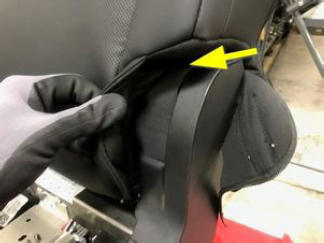

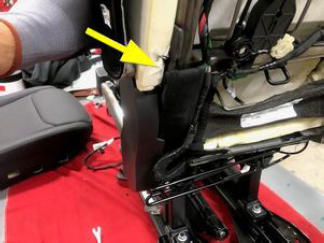

  16. Release the elastic bands (x2) at the RH 2nd row seat inboard outer hinge cover.
    G15402279Courtesy of TESLA, INC.
    G15402280Courtesy of TESLA, INC.

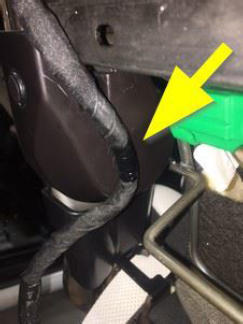

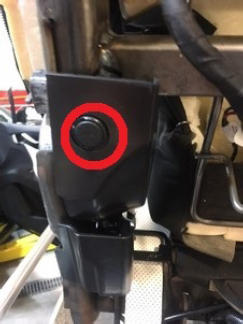

  17. Remove the push clip and release the harness clip that attach the LH A-cover to the seat assembly, and then remove the cover from the assembly.
    G15402281Courtesy of TESLA, INC.
    G15402282Courtesy of TESLA, INC.

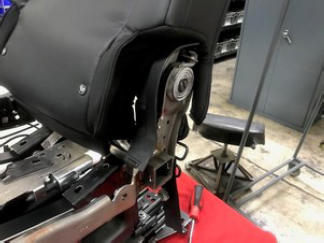

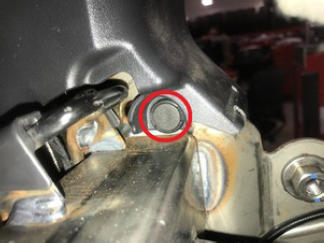

  18. Remove the clip that attaches the LH inner B-cover to the seat frame.
    G15402283Courtesy of TESLA, INC.
    G15402284Courtesy of TESLA, INC.

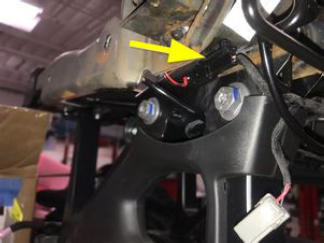

  19. Disconnect the EZ entry microswitch electrical connector.
    G15402285Courtesy of TESLA, INC.

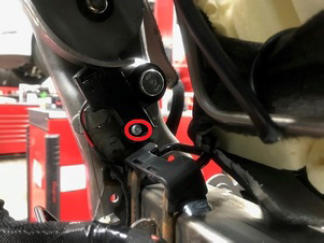

  20. Remove the screw that attaches the RH 2nd row EZ entry microswitch bracket to the seat frame.

    3.5 N.m (2.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    G15402286Courtesy of TESLA, INC.

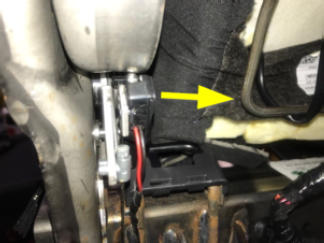

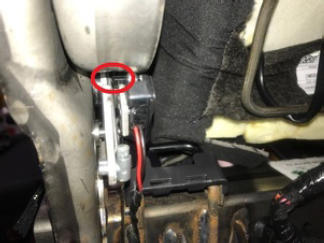

  21. Release the clip that attaches the RH 2nd row EZ entry microswitch bracket to the seat assembly, and then remove the bracket from the seat assembly.
    G15402287Courtesy of TESLA, INC.
    G15402288Courtesy of TESLA, INC.

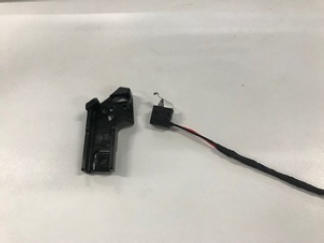

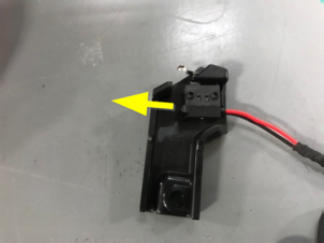

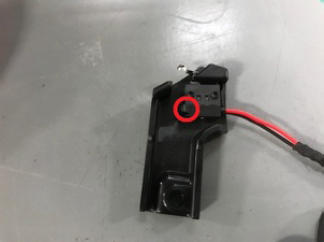

  22. Gently press the clip on the side of the RH 2nd row EZ entry microswitch to release it from the bracket.
    G15402289Courtesy of TESLA, INC.
    G15402290Courtesy of TESLA, INC.
    G15402291Courtesy of TESLA, INC.
