Microswitch - EZ Entry - 2nd Row - RH (7 Seat) - Remove And Replace: Install

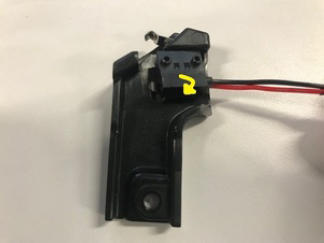

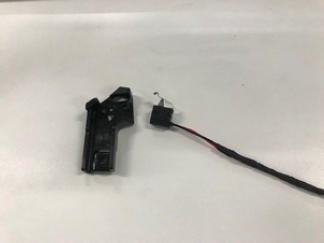

  1. Position the RH 2nd row EZ entry microswitch into the bracket, and then secure the clip that attaches the microswitch to the bracket.
    NOTE: Make sure the microswitch seats to the bracket properly.
    G15402292Courtesy of TESLA, INC.
    G15402293Courtesy of TESLA, INC.

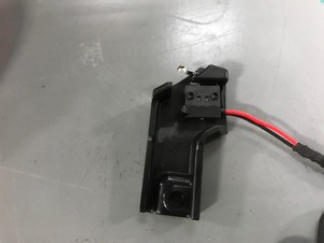

    G15402294Courtesy of TESLA, INC.

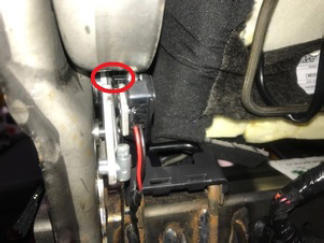

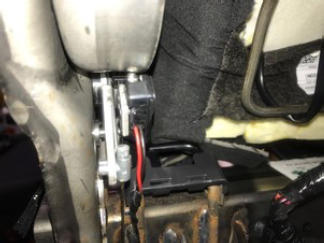

  2. Position the RH 2nd row EZ entry microswitch bracket to the seat assembly, and then secure the clip that attaches the bracket to the seat assembly.
    NOTE: Make sure the microswitch bracket clip seats to the recliner sensor bracket.
    G15402295Courtesy of TESLA, INC.
    G15402296Courtesy of TESLA, INC.

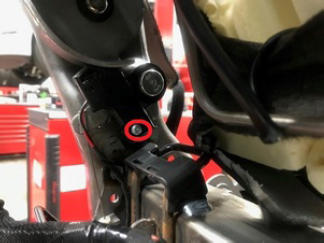

  3. Install the screw that attaches the RH 2nd row EZ entry microswitch bracket to the seat frame.

    3.5 N.m (2.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    G15402297Courtesy of TESLA, INC.

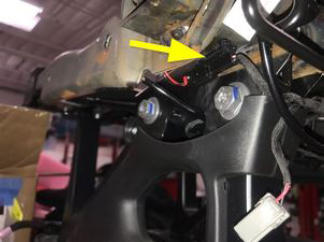

  4. Connect the EZ entry microswitch electrical connector.
    G15402298Courtesy of TESLA, INC.

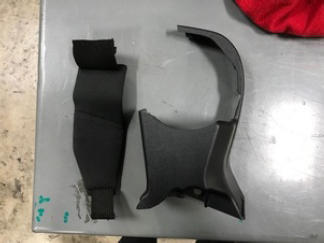

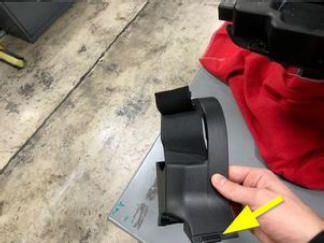

  5. Install the elastic band to the LH inner B-cover.
    G15402299Courtesy of TESLA, INC.
    G15402300Courtesy of TESLA, INC.

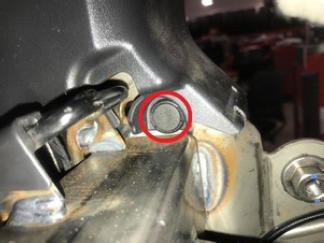

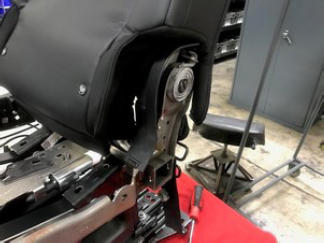

  6. Install the clip that attaches the LH inner B-cover to the seat frame.
    G15402301Courtesy of TESLA, INC.
    G15402302Courtesy of TESLA, INC.

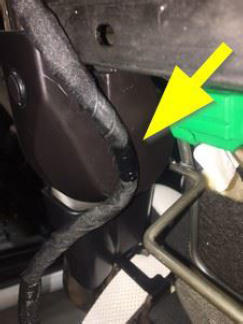

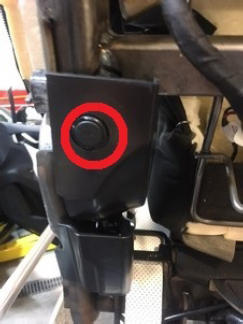

  7. Install the push clip and secure the harness clip that attach the LH A-cover to the seat assembly.
    G15402303Courtesy of TESLA, INC.
    G15402304Courtesy of TESLA, INC.

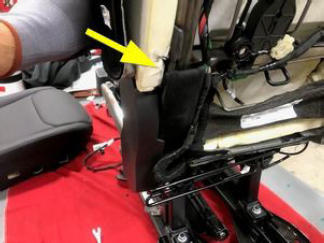

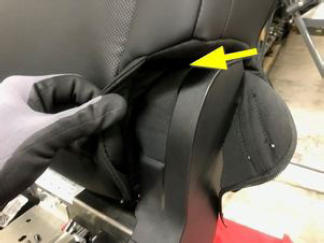

  8. Secure the elastic bands (x2) at the RH 2nd row seat inboard outer hinge cover.
    G15402305Courtesy of TESLA, INC.
    G15402306Courtesy of TESLA, INC.
  9. Secure the lower portion of the RH 2nd row seat back cushion to the seat frame.
    NOTE: Guide harness and tension flaps through seat back frame.

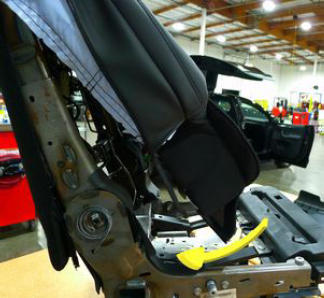

    G15402307Courtesy of TESLA, INC.

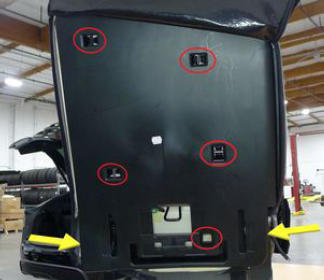

  10. Position the RH 2nd row seat back plastic to the seat back assembly, and then secure the clips (x5) that attach the seat back plastic to the assembly.
    G15402308Courtesy of TESLA, INC.

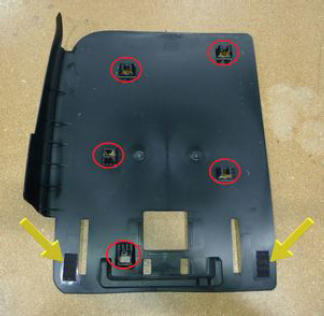

    G15402309Courtesy of TESLA, INC.

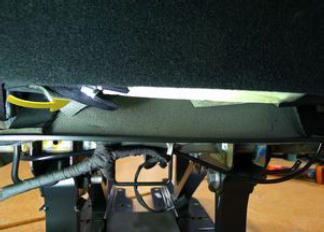

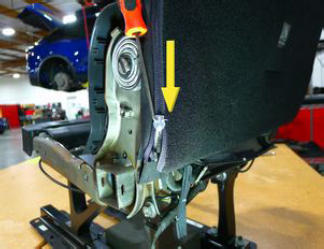

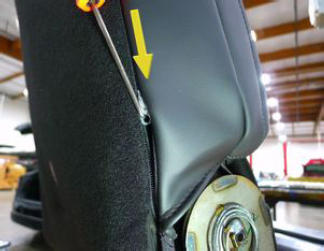

  11. Fold the seat back upholstery into position, secure the Velcro strips (x2), and then zip the upholstery on the LH and RH sides of backrest cover.
    NOTE: The ends of zippers are tucked underneath the upholstery.

    Tip: Use a pick to help move the zipper.

    G15402310Courtesy of TESLA, INC.

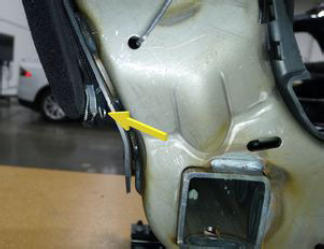

    G15402311Courtesy of TESLA, INC.
    G15402312Courtesy of TESLA, INC.
    G15402313Courtesy of TESLA, INC.

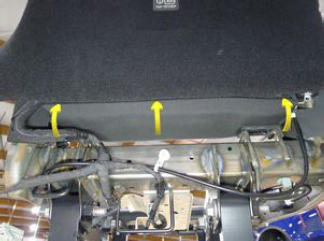

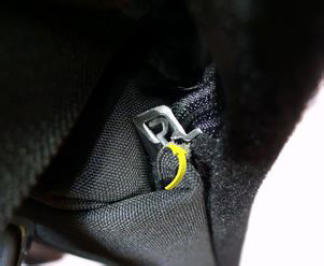

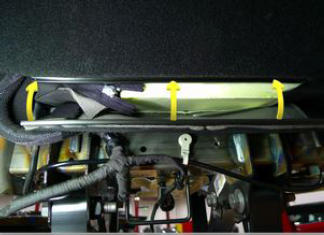

  12. Secure the J-hook that attaches the RH 2nd row seat back upholstery to the seat assembly.
    G15402314Courtesy of TESLA, INC.

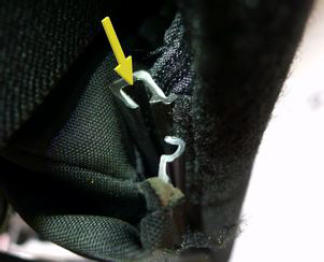

    G15402315Courtesy of TESLA, INC.
    G15402316Courtesy of TESLA, INC.
    G15402317Courtesy of TESLA, INC.

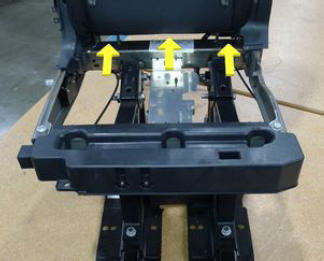

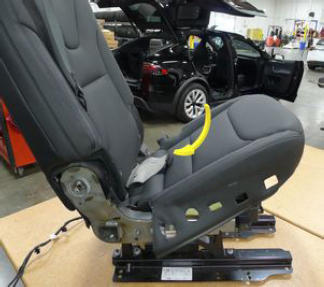

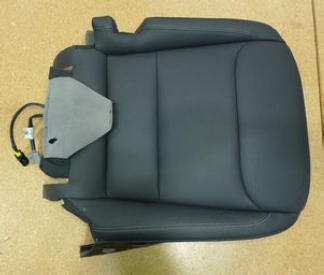

  13. Position the RH 2nd row seat cushion into the seat assembly.
    NOTE: Guide the harness and tension flaps underneath the seat back.
    G15402318Courtesy of TESLA, INC.
    G15402319Courtesy of TESLA, INC.
    G15402320Courtesy of TESLA, INC.

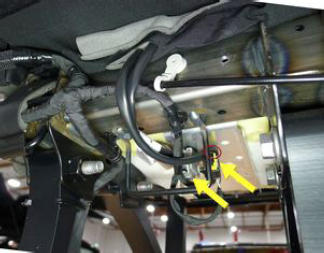

  14. Secure the clip that attaches the seat harness to the RH 2nd row seat assembly, and then connect the heater and seat belt reminder electrical connectors.

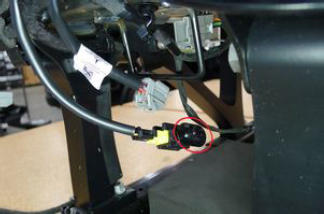

    G15402321Courtesy of TESLA, INC.
    G15402322Courtesy of TESLA, INC.

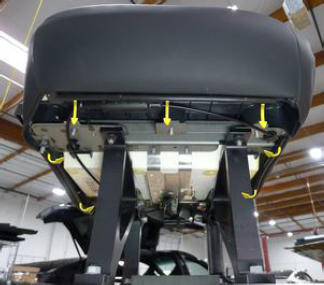

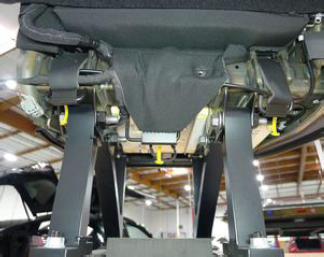

  15. Secure the J-clips (x6) that attach the RH 2nd row seat cushion trim to the seat bracket assembly.
    G15402323Courtesy of TESLA, INC.
    G15402324Courtesy of TESLA, INC.

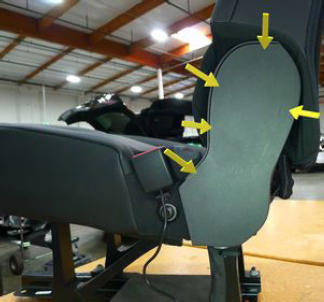

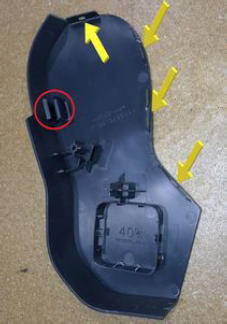

  16. Slide the upper tabs of the RH 2nd row seat inner hinge cover onto the seat frame, and then secure the clip and tabs (x4) that attach the cover to the seat assembly.
    G15402325Courtesy of TESLA, INC.
    G15402326Courtesy of TESLA, INC.

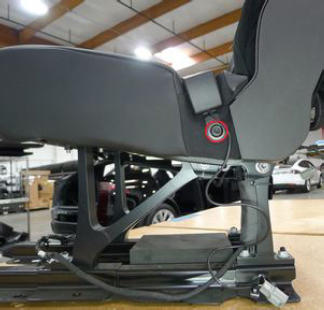

  17. Position the RH 2nd row seatbelt buckle to the seat assembly, and then install the bolt that attaches the buckle to the assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T50 socket
    G15402327Courtesy of TESLA, INC.

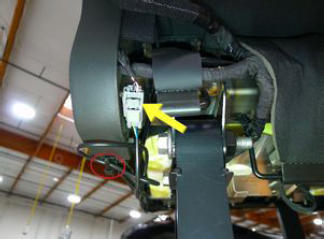

  18. Secure the clips (x2) that attach the RH 2nd row seatbelt buckle connector and harness to the seat assembly, and then connect the seatbelt buckle connector.

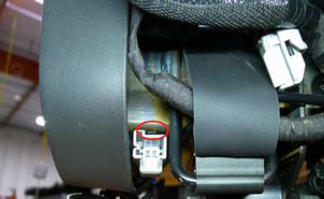

    G15402328Courtesy of TESLA, INC.
    G15402329Courtesy of TESLA, INC.
  19. Position the RH 2nd row seatbelt to the seat assembly, and then install a new bolt that attaches the seatbelt to the assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T50 socket

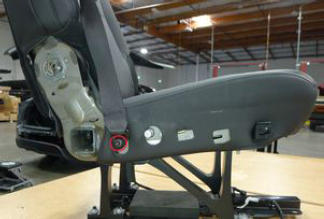

    G15402330Courtesy of TESLA, INC.
  20. Install the RH 2nd row recliner cover. See COVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
  21. Install the RH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
  22. Fold the RH 2nd row seat back to the down position.
  23. Install the RH 2nd row seat assembly. See SEAT ASSEMBLY - 2ND ROW - RH (7 SEAT) (REMOVE AND REPLACE) .
    NOTE: It is not necessary to redeploy software after install.
