Microswitch - EZ Entry - 2nd Row - LH (7 Seat) - Remove And Replace: Remove
- Remove the LH 2nd row seat assembly from the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (7 SEAT) (REMOVE AND REPLACE) .
- Move the LH 2nd row seat backs to the upright position.

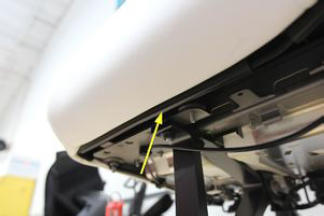

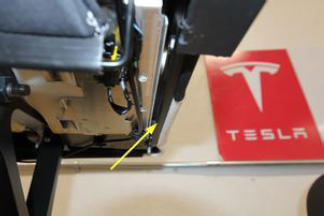

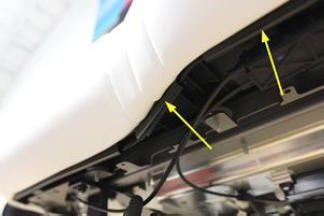

- Release the J-hooks (x6) that attach the rear toe kick to the LH 2nd row seat assembly.NOTE: Release lower outer hooks (x2) to expose the inner clips (x4).

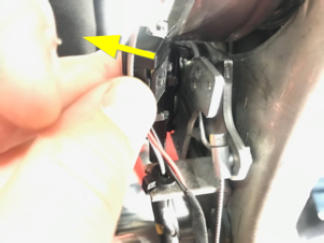

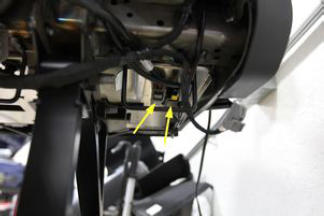

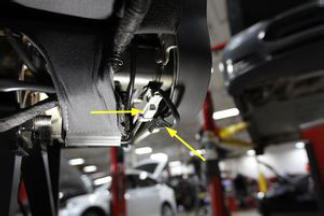

- Disconnect the 2nd row center seatbelt buckle electrical connector, and then release the edge clip that attaches the connector to the seat assembly.

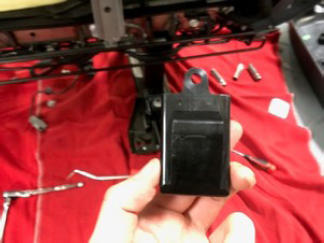

- Remove and discard the bolt that attaches the 2nd row center seatbelt buckle to the seat assembly, and then remove the buckle from the seat assembly.
45 N.m (33.2 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T50 socket
- Remove the LH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
- Remove the LH 2nd row recliner cover. See COVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .

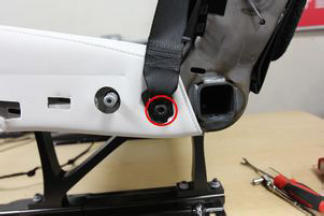

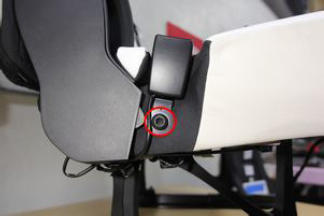

- Remove the bolt that attaches the LH 2nd row outer seatbelt to the seat assembly, and then remove the seatbelt from the seat assembly.
Tip: Use of the following tool(s) is recommended:
- Torx T50 socket

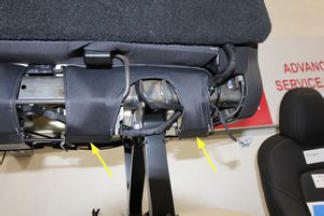

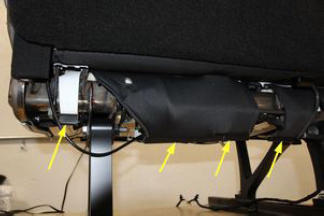

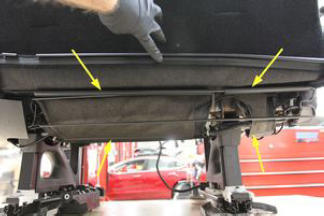

- Release the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.

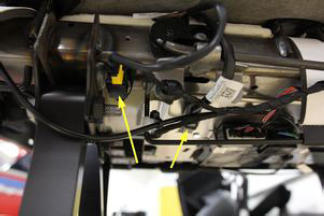

- Disconnect the LH 2nd row seat - seat cushion electrical connectors (x4), and then release the clips (x2) that attach the black connectors (x2) to the seat frame

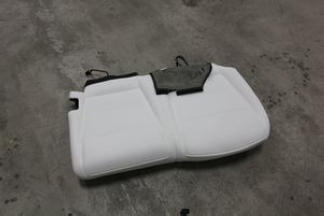

- Remove the LH 2nd row seat cushion assembly from the seat assembly.CAUTION: Use caution when feeding the J-hooks and connectors through the seat frame.

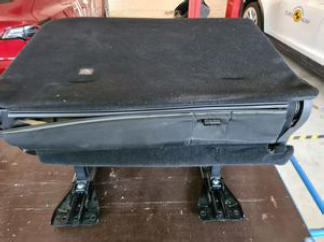

- Fold the LH 2nd row seat back to the down position.NOTE: Use LH recliner lever without installing clip.

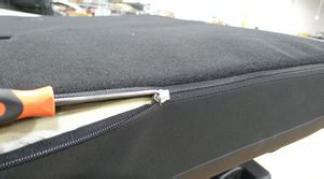

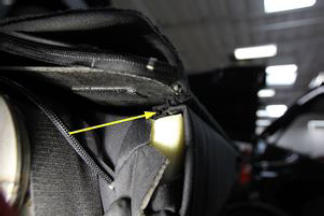

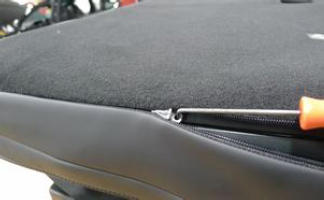

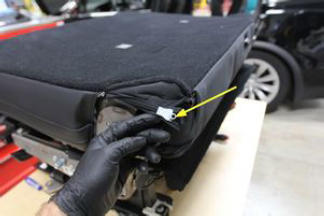

- Unzip the LH 2nd row seat back upholstery on both sides.NOTE: Ends of the zippers are tucked underneath the upholstery. Use a pick to aid in moving the zipper.
Tip: Use of the following tool(s) is recommended:
- Pick Miniature Soft Grip, 90 degree tip, 6 in

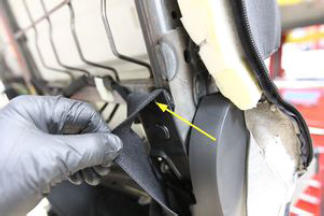

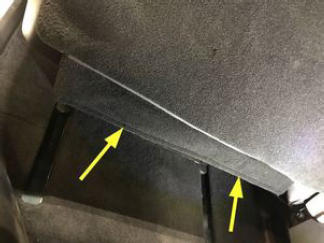

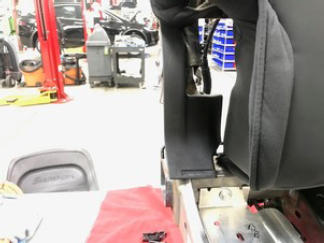

- Release 60 seat back upholstery and lift up.NOTE: Release J-hook holding the back down.

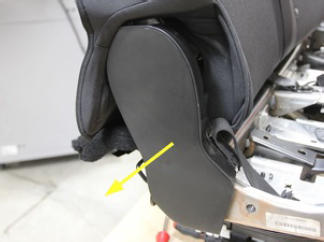

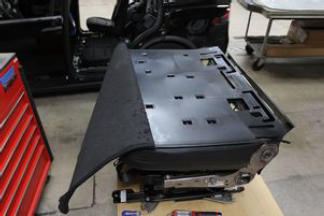

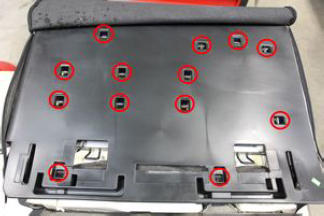

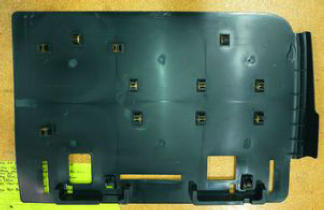

- Release the clips (x13) that attach the LH 2nd row seat plastic seat back to the seat, and then remove the plastic seat back from the seat.
Tip: Use of the following tool(s) is recommended:
- Clip prytool 20 in
- Fold the LH 2nd row seat to the upright position.

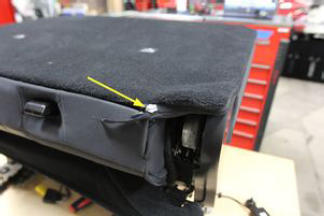

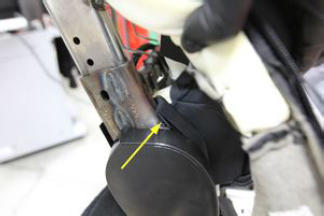

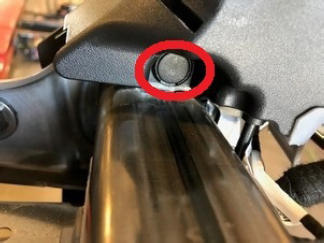

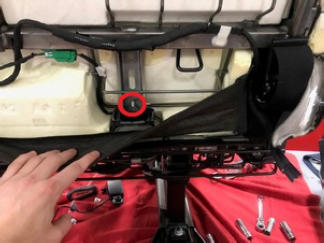

- Remove the bolt that attaches the LH 2nd row seat torsion spring bearing cap to the seat, and then remove the cap from the seat.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Flex head ratchet/flex head torque wrench

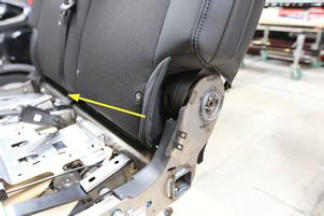

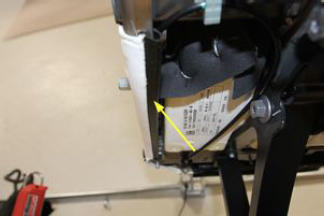

- Release the lower part of the LH 2nd row seat back cushion.
- Remove the elastic bands (x2) at the RH outer hinge cover.
- Release the harness clip and remove the push clip that attach the RH A-cover to the seat assembly, and then remove the A-cover from the seat assembly.

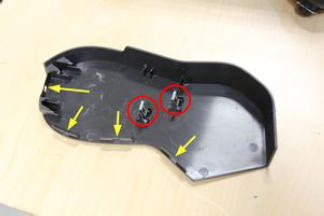

- Release the clips (x2) and tabs (x4) that attach the RH outer hinge cover to the seat assembly, and then remove the cover from the assembly.NOTE: Pull the cover away from seat to release the clips, release tabs from bottom up, and then lift the cover to release the top edge from the seat frame.
- Remove the push clip that attaches the RH inner B-cover to the seat assembly, and then remove the B-cover from the seat assembly.

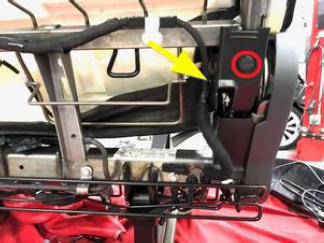

- Disconnect the LH 2nd row EZ entry microswitch electrical connector.

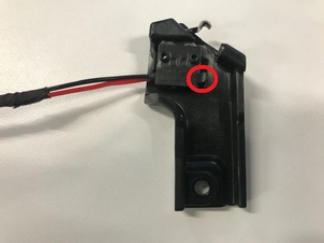

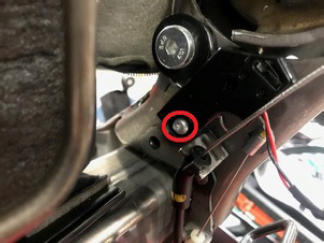

- Remove the screw that attaches the LH 2nd row EZ entry microswitch to the bracket.
Tip: Use of the following tool(s) is recommended:
- T20 socket

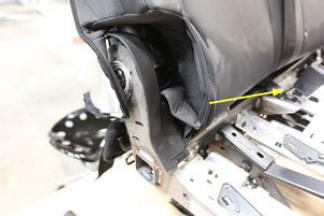

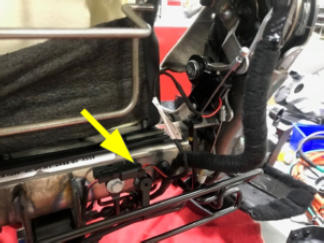

- Release the clip that attaches the EZ entry microswitch bracket to the seat assembly, and then remove the bracket from the assembly.

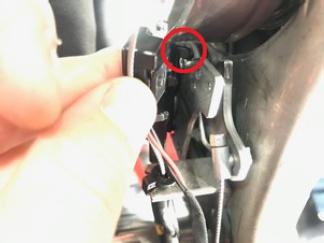

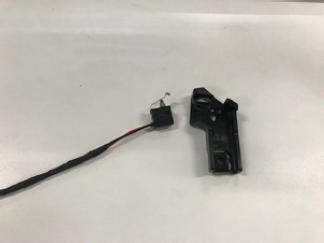

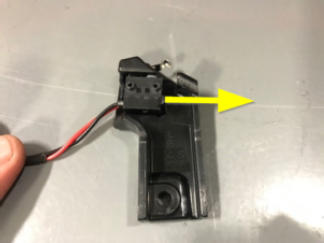

- Gently press the clip to the side to release the EZ entry microswitch from the bracket.
