Microswitch - EZ Entry - 2nd Row - LH (7 Seat) - Remove And Replace: Install

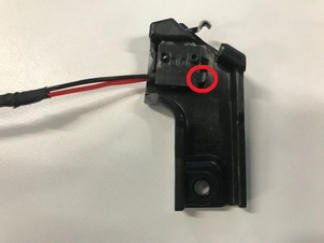

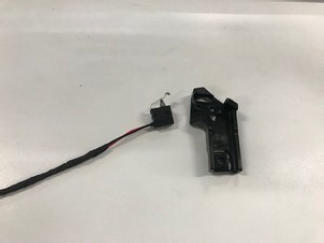

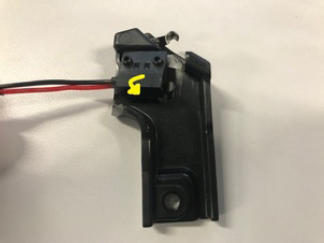

  1. Position the LH 2nd row EZ entry microswitch to the bracket, and then secure the clip that attaches the microswitch to the bracket.
    NOTE: Make sure the microswitch seats to bracket properly with the clip retaining switch.
    G15402216Courtesy of TESLA, INC.
    G15402217Courtesy of TESLA, INC.
    G15402218Courtesy of TESLA, INC.

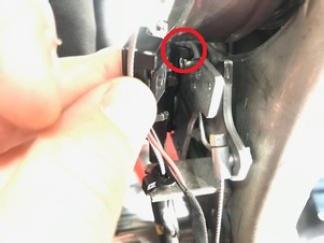

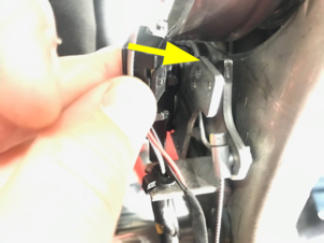

  2. Position the EZ entry microswitch bracket to the seat assembly, and then secure the clip that attaches the bracket to the assembly.
    NOTE: Make sure the micro sensor bracket clip seats to the recliner sensor bracket.
    G15402219Courtesy of TESLA, INC.
    G15402220Courtesy of TESLA, INC.

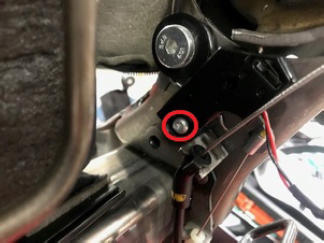

  3. Install the screw that attaches the LH 2nd row EZ entry microswitch to the bracket.

    3.5 N.m (2.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    G15402221Courtesy of TESLA, INC.

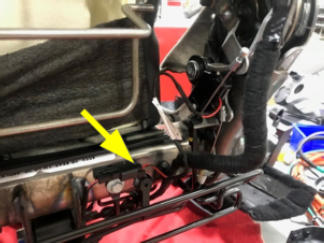

  4. Connect the LH 2nd row EZ entry microswitch electrical connector.
    G15402222Courtesy of TESLA, INC.

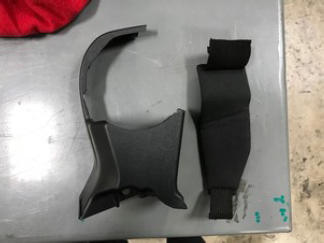

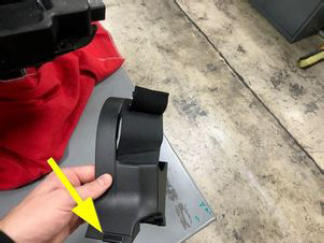

  5. Install the elastic band to the RH inner B-cover.
    G15402223Courtesy of TESLA, INC.
    G15402224Courtesy of TESLA, INC.

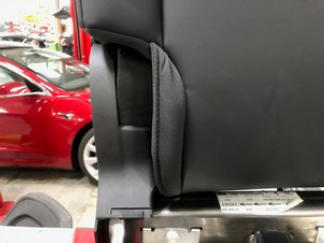

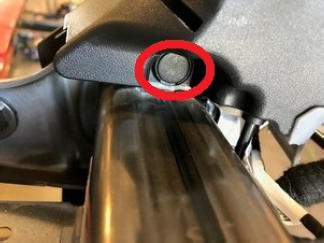

  6. Position the RH inner B-cover to the seat assembly, and then install the push clip that attaches the B-cover to the seat assembly.
    G15402225Courtesy of TESLA, INC.
    G15402226Courtesy of TESLA, INC.

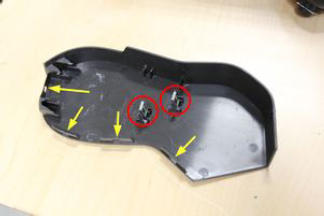

  7. Position the RH outer hinge cover to the seat assembly, and then secure the clips (x2) and tabs (x4) that attach the cover to the assembly.
    NOTE: Slide the upper tabs down onto the seat frame, and then secure the clips and tabs.
    G15402227Courtesy of TESLA, INC.

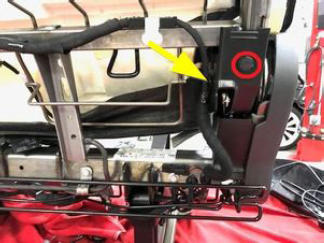

  8. Position the RH A-cover to the seat assembly, and then install the harness clip and push clip that attach the A-cover to the seat assembly.
    G15402228Courtesy of TESLA, INC.

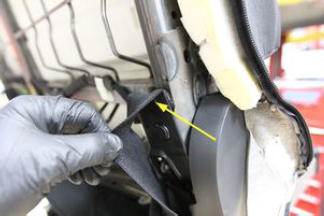

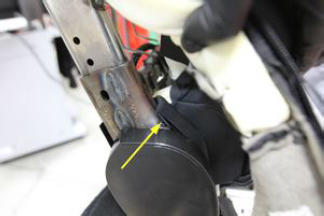

  9. Secure the elastic bands (x2) at the RH outer hinge cover.
    G15402229Courtesy of TESLA, INC.
    G15402230Courtesy of TESLA, INC.

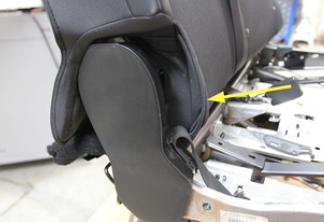

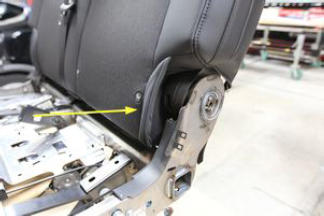

  10. Install the lower part of the LH 2nd row seat back cushion.
    G15402231Courtesy of TESLA, INC.
    G15402232Courtesy of TESLA, INC.

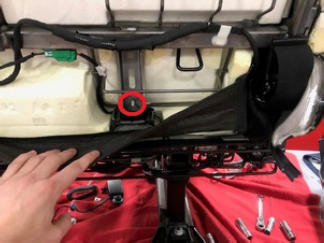

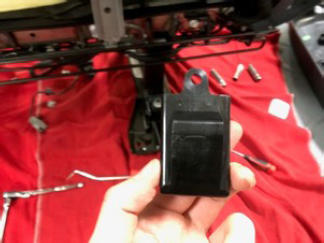

  11. Position the LH 2nd row seat torsion spring bearing cap on the seat, and then install the bolt that attaches the cap to the seat.

    0.5 N.m (4 in-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    G15402233Courtesy of TESLA, INC.
    G15402234Courtesy of TESLA, INC.
  12. Fold the LH 2nd row seat back to the down position.

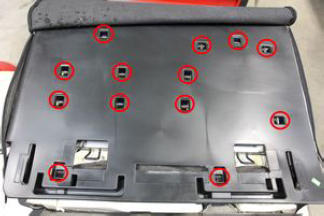

  13. Position the LH 2nd row seat plastic seat back on the seat, and then install the clips (x13) that attach the seat back to the seat.
    G15402235Courtesy of TESLA, INC.

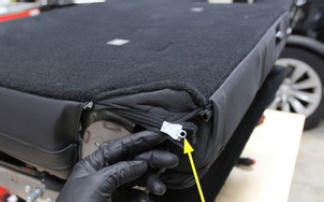

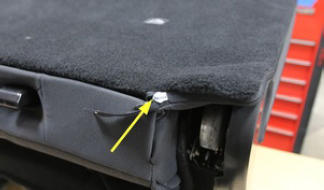

  14. Zip the LH 2nd row seat back upholstery on both sides.
    CAUTION: Use caution to not pull the zippers off the track.
    NOTE: Use a pick to aid in moving the zipper. Tuck the ends of the zippers underneath the upholstery.

    Tip: Use of the following tool(s) is recommended:

    • Pick Miniature Soft Grip, 90 degree tip, 6 in
    G15402236Courtesy of TESLA, INC.
    G15402237Courtesy of TESLA, INC.

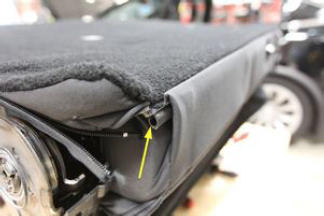

  15. Secure lower portion of 60 seat back upholstery.
    NOTE: Secure J-hook along lower edge.
    G15402238Courtesy of TESLA, INC.
  16. Fold the LH 2nd row seat back to the upright position.

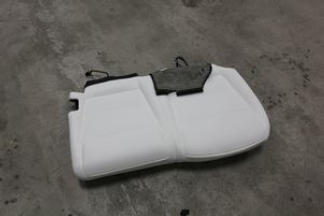

  17. Install the LH 2nd row seat cushion assembly into the seat assembly.
    CAUTION: Use caution when feeding the J-hooks and connectors through the seat frame.
    G15402239Courtesy of TESLA, INC.

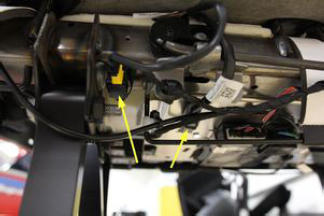

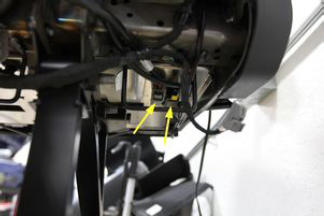

  18. Secure the black connectors (x2) to the LH 2nd row seat frame, and then connect the electrical connectors (x4).
    G15402240Courtesy of TESLA, INC.
    G15402241Courtesy of TESLA, INC.

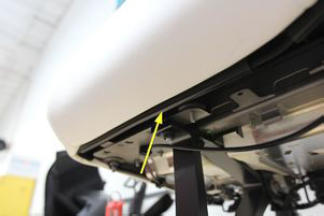

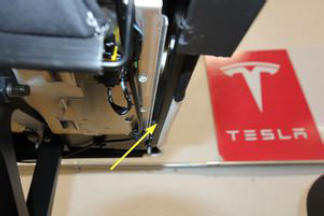

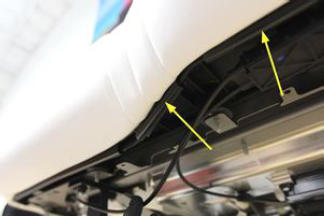

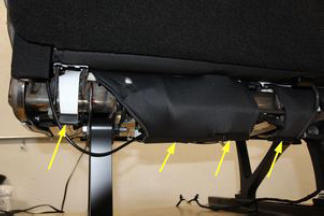

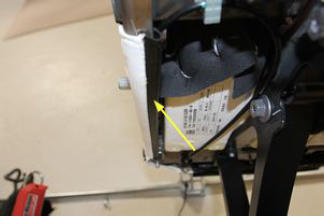

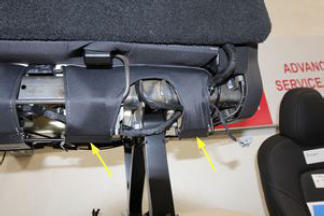

  19. Secure the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.
    G15402242Courtesy of TESLA, INC.
    G15402243Courtesy of TESLA, INC.
    G15402244Courtesy of TESLA, INC.
    G15402245Courtesy of TESLA, INC.
    G15402246Courtesy of TESLA, INC.
    G15402247Courtesy of TESLA, INC.

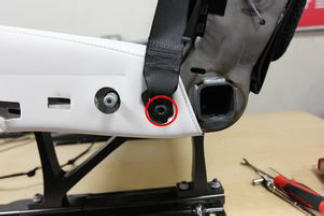

  20. Position the LH 2nd row outer seat belt to the seat assembly, and then install a new bolt that attaches seatbelt to the seat assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T50 socket
    G15402248Courtesy of TESLA, INC.
  21. Install the LH 2nd row recliner cover. See COVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
  22. Install the LH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .

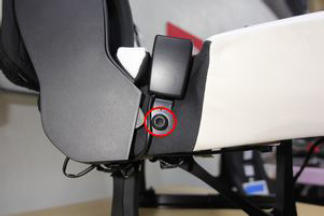

  23. Position the 2nd row center seatbelt buckle onto the seat assembly, and then install a new bolt that attaches the buckle to the seat assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T50 socket
    G15402249Courtesy of TESLA, INC.

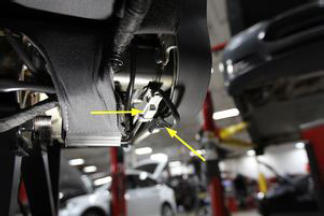

  24. Secure the edge clip that attaches the 2nd row center seatbelt buckle electrical connector to the seat assembly, and then connect the connector.
    G15402250Courtesy of TESLA, INC.

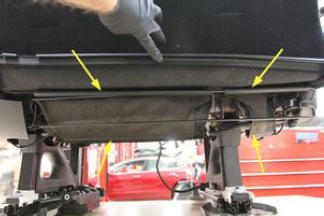

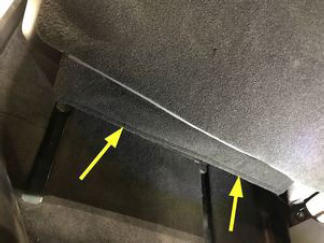

  25. Secure toe kick to 60 seat assembly.
    NOTE: 6x J-hooks, Secure inner 4 clips, then lower outer 2.
    G15402251Courtesy of TESLA, INC.
    G15402252Courtesy of TESLA, INC.
  26. Fold LH 2nd row seat back to the down position.
  27. Install the LH 2nd row seat assembly into the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (7 SEAT) (REMOVE AND REPLACE) .
    NOTE: It is not necessary to redeploy the vehicle firmware after installing the seat assembly.
