Cap - Switch - 2nd Row - LH (6 Seat) - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the LH falcon wing door.
  3. Use a trim pry tool to remove the LH 2nd row switch cap.
    NOTE: Release the cap from both ends.

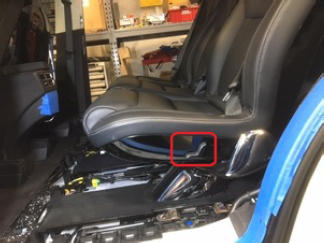

    G15402101Courtesy of TESLA, INC.

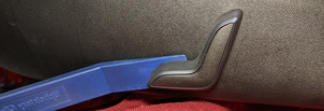

    G15402102Courtesy of TESLA, INC.

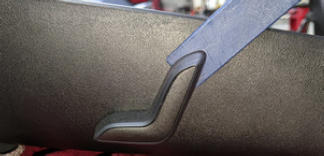

    G15402103Courtesy of TESLA, INC.

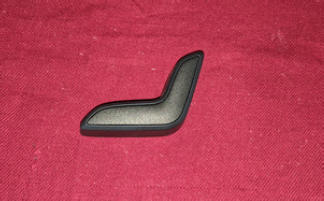

    G15402104Courtesy of TESLA, INC.
