Bracket - Catcher - 2nd Row Seat - LH (6 Seat) - Remove And Replace: Install
- Install the magic carpet onto the LH 2nd row seat catcher bracket.NOTE: Align the access holes for bolt installation.

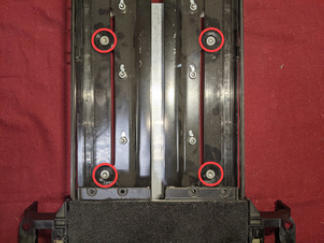

- Install new bolts (x4) and washers that attach the magic carpet to the LH 2nd row seat catcher bracket.
3.5 N.m (2.6 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T30 socket
- Install the LH 2nd row seat slider. See SLIDER - SEAT - 2ND ROW - LH (6 SEAT) (REMOVE AND REPLACE) .
- Install the LH 2nd row seat assembly into the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (WITHOUT 2ND ROW BENCH SEATS) (REMOVE AND REPLACE) .
- Raise the front windows and close all the doors.
