Actuator Assembly - Release - EZ Entry - 2nd Row - LH (7 Seat) - Remove And Replace: Install

Position the LH 2nd row EZ entry release actuator assembly into the seat assembly, and then secure the clips (x2) that attach the actuator assembly to the seat assembly.
NOTE: Follow the routing as noted during removal.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

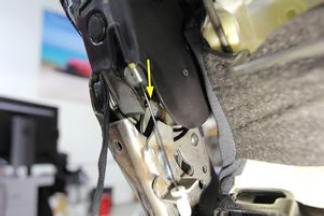

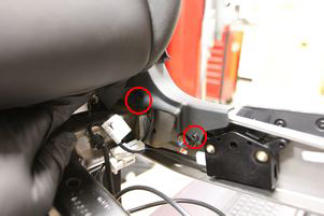

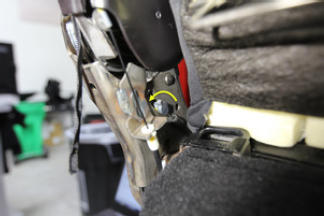

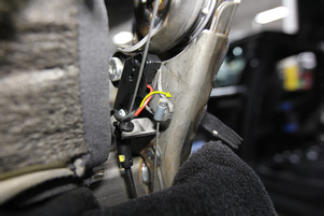

Secure the recline release actuator cable to the LH side hinge lever.
NOTE: Hold the hinge lever down so the hole is visible through the slot, insert the cable end, and then rotate 90 degrees to secure.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

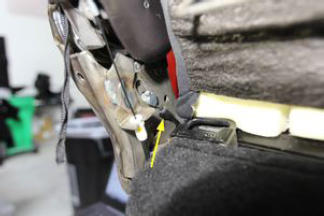

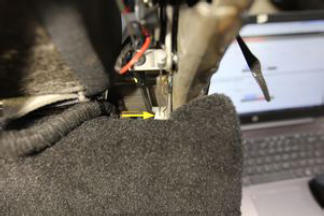

Secure the clip that attaches the LH side cable clip to the seat frame.

Courtesy of TESLA, INC.

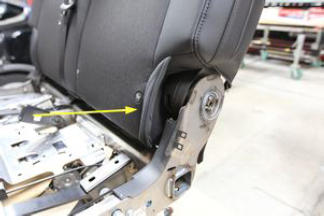

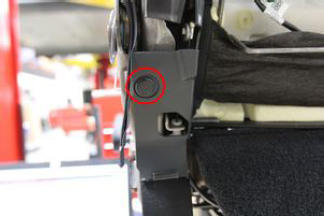

Position the LH lower inner hinge cover to the seat assembly, and then install the screw and clips (x2) that attach the cover to the seat assembly.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T20 socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Secure the recline release actuator cable to the RH side hinge lever.
NOTE: Hold the hinge lever down to allow cable to reach the hole, insert the cable end, and then rotate 90 degrees to secure.

Courtesy of TESLA, INC.
Secure the recline release actuator cable to RH side cable mount.

Courtesy of TESLA, INC.

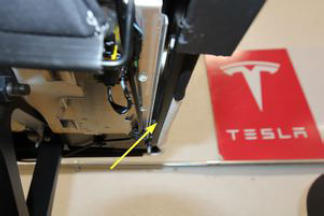

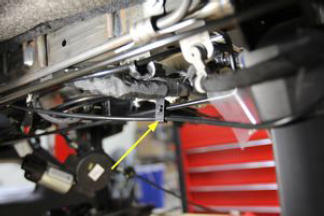

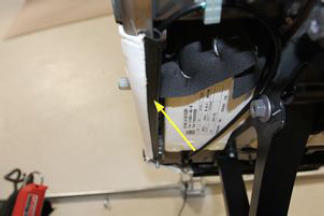

Secure the recline release actuator cable clip to the seat frame.
NOTE: The clip is mounted along the lower rear of the seat frame.

Courtesy of TESLA, INC.

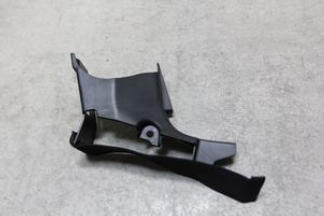

Position the RH lower inner hinge cover into the seat assembly, and then install the clip that attaches the cover to the seat assembly.

Courtesy of TESLA, INC.

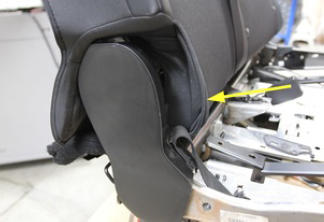

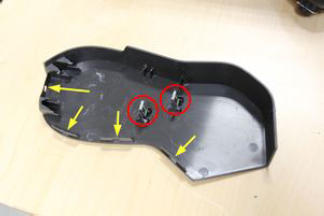

Position the RH outer hinge cover to the seat assembly, and then secure the clips (x2) and tabs (x4) that attach the cover to the assembly.
NOTE: Slide the upper tabs down onto the seat frame, and then secure the clips and tabs.

Courtesy of TESLA, INC.

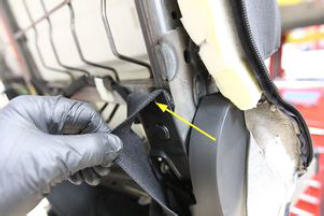

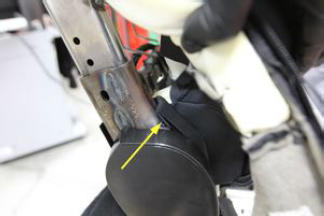

Secure the elastic bands (x2) at the RH outer hinge cover.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the lower part of the LH 2nd row seat back cushion.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Fold the LH 2nd row seat back to the down position.

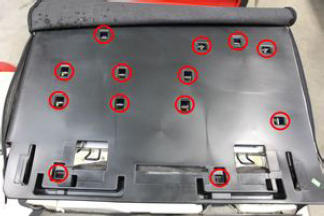

Position the LH 2nd row seat plastic seat back on the seat, and then install the clips (x13) that attach the seat back to the seat.

Courtesy of TESLA, INC.

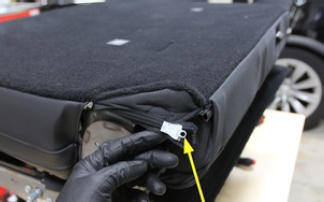

Zip the LH 2nd row seat back upholstery on both sides.
CAUTION: Use caution to not pull the zippers off the track.

NOTE: Use a pick to aid in moving the zipper. Tuck the ends of the zippers underneath the upholstery.

Tip: Use of the following tool(s) is recommended:
- Pick Miniature Soft Grip, 90 degree tip, 6 in
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

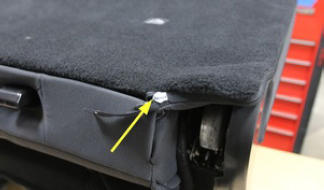

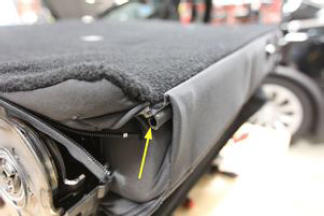

Secure lower portion of 60 seat back upholstery.
NOTE: Secure J-hook along lower edge.

Courtesy of TESLA, INC.
Fold the LH 2nd row seat back to the upright position.

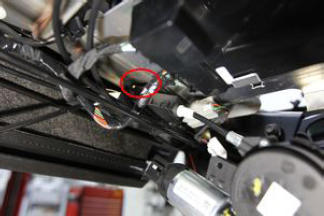

Connect recline release actuator.
NOTE: 1x connector.

Courtesy of TESLA, INC.

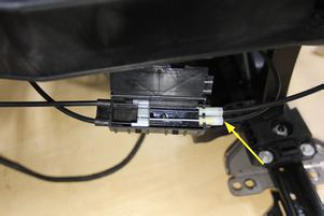

Connect the recline release actuator cable to the splitter box.
NOTE: The recline release actuator cable is the silver cable.

Courtesy of TESLA, INC.

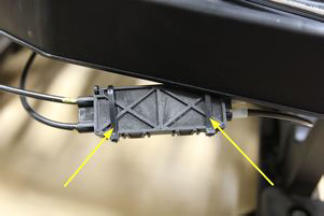

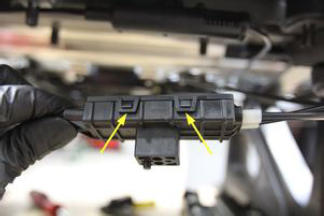

Secure the tabs (x2) to close the splitter box, and then install cable ties (x2) to secure the splitter box.
NOTE: Cut off excess cable tie ends.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

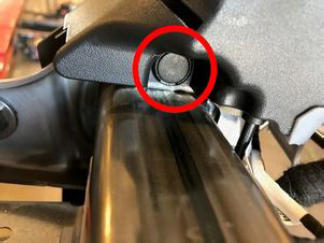

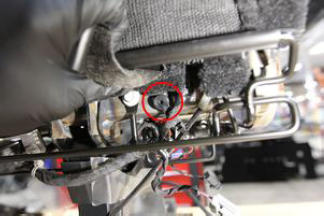

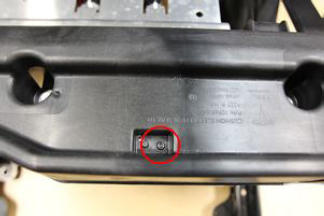

Install the screw that attaches the splitter box to the LH 2nd row seat assembly.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T20 socket
Courtesy of TESLA, INC.

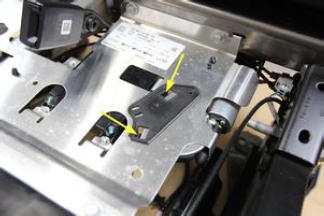

Position the bracket into the seat assembly, and then secure the tabs (x2) that attach the actuator bracket to the seat assembly.

Courtesy of TESLA, INC.

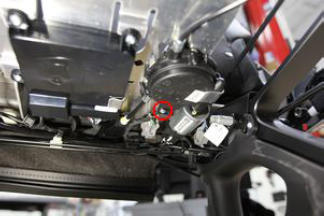

Install the screw that attaches the LH 2nd row EZ entry release actuator assembly to the bracket.
1 N.m (.7 ft-lbs)

NOTE: Align the fastener with the actuator bracket.

Tip: Use of the following tool(s) is recommended:
- T15 socket
Courtesy of TESLA, INC.

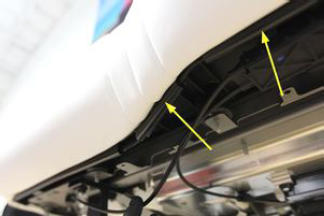

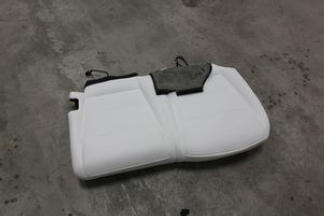

Install the LH 2nd row seat cushion assembly into the seat assembly.
CAUTION: Use caution when feeding the J-hooks and connectors through the seat frame.

Courtesy of TESLA, INC.

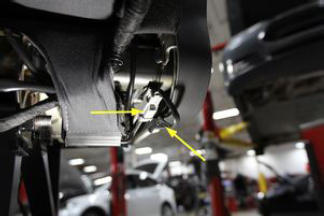

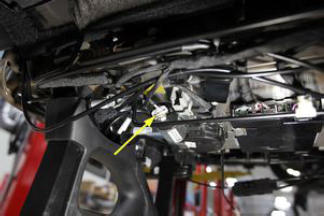

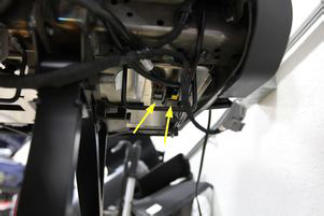

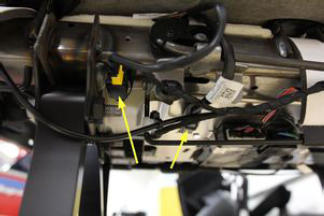

Secure the black connectors (x2) to the LH 2nd row seat frame, and then connect the electrical connectors (x4).

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

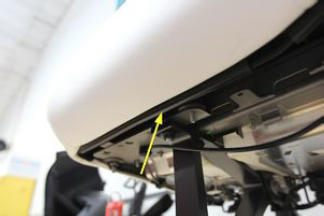

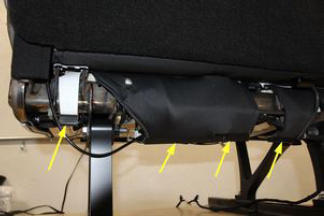

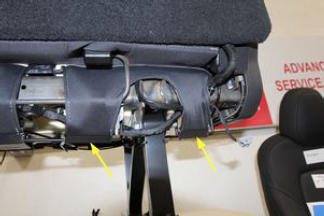

Secure the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

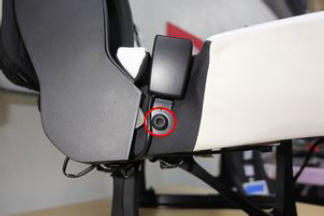

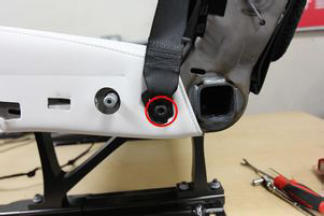

Position the LH 2nd row outer seat belt to the seat assembly, and then install a new bolt that attaches seatbelt to the seat assembly.
45 N.m (33.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T50 socket
Courtesy of TESLA, INC.
Install the LH 2nd row recliner cover. See COVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
Install the LH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
Position the 2nd row center seatbelt buckle onto the seat assembly, and then install a new bolt that attaches the buckle to the seat assembly.
45 N.m (33.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T50 socket
Courtesy of TESLA, INC.
Secure the edge clip that attaches the 2nd row center seatbelt buckle electrical connector to the seat assembly, and then connect the connector.

Courtesy of TESLA, INC.

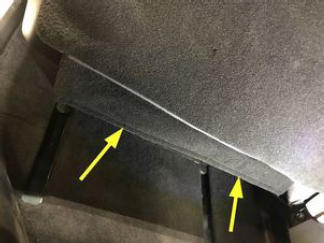

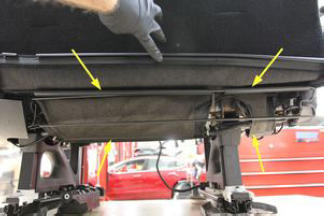

Secure toe kick to 60 seat assembly.
NOTE: 6x J-hooks, Secure inner 4 clips, then lower outer 2.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Fold LH 2nd row seat to the down position.
Install the LH 2nd row seat assembly into the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (7 SEAT) (REMOVE AND REPLACE) .
NOTE: It is not necessary to redeploy the vehicle firmware after installing the seat assembly.
