Actuator - Pitch Latch - 2nd Row Seat - LH (6 Seat) - Remove And Replace: Install

  1. Position the LH 2nd row seat pitch latch actuator into the seat assembly, and then install the screws (x3) that attach the actuator to the seat assembly.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket

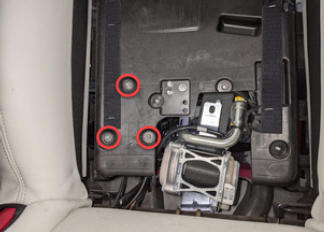

    G15402084Courtesy of TESLA, INC.
  2. Install the LH 2nd row seat pitch latch actuator cable into the cable bracket and actuator.

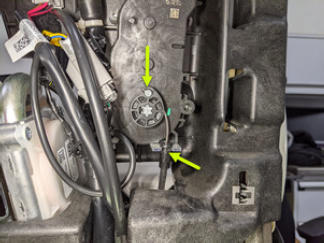

    G15402085Courtesy of TESLA, INC.

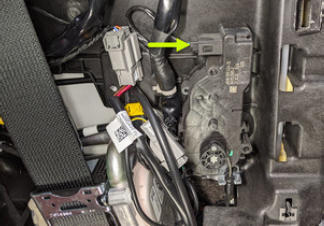

  3. Connect the LH 2nd row seat pitch latch actuator electrical connector.
    G15402086Courtesy of TESLA, INC.

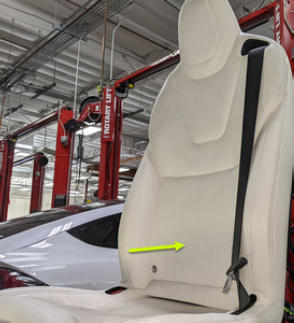

  4. Position the lower front side of the seat back trim onto the seat frame and secure the Velcro strips (x3).

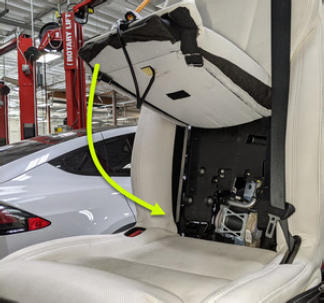

    G15402087Courtesy of TESLA, INC.
    G15402088Courtesy of TESLA, INC.
  5. Position the LH 2nd row seat OBSB heat pad electrical connector onto the seat back assembly, secure the clip that attaches the connector to the seat assembly, and then connect the connector.

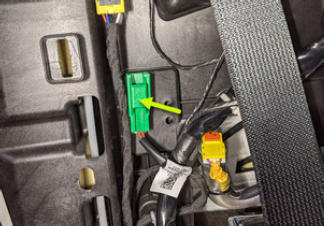

    G15402089Courtesy of TESLA, INC.

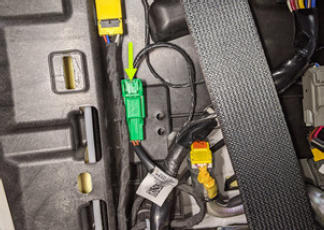

    G15402090Courtesy of TESLA, INC.
  6. Position the LH 2nd row seat - seat back cover onto the seat assembly, connect the electrical connector, and then secure the clips (x11) that attach the seat back cover to the seat assembly.
    NOTE: Align the lower datums and side tabs along the seat assembly, and then engage the clips fully.

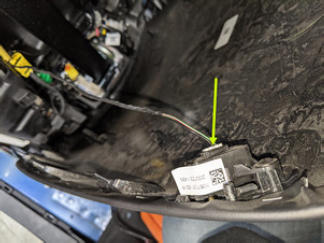

    G15402091Courtesy of TESLA, INC.

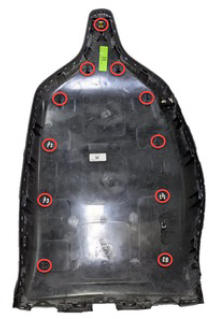

    G15402092Courtesy of TESLA, INC.

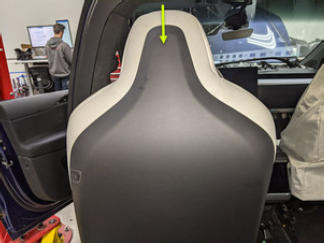

    G15402093Courtesy of TESLA, INC.
  7. Connect LV power. See LV Power (Disconnect and Connect) .
  8. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  9. Close the hood.
  10. Calibrate the rear doors.
    NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate  to calibrate the rear doors
  11. Move the LH 2nd row seat to the original position.
  12. Move driver seat to the original position.
  13. Connect a laptop with Toolbox 3 to the vehicle.
  14. In Toolbox, click the Actions  tab, and then search for "BCS2L".
  15. Click PROC_BCS2L_R2-L_CALIBRATE-S2L-PITCH  , and then click Run  and allow the routine to complete.
    NOTE: Click the X at the top right corner of the window to close once complete.
  16. Click PROC_BCS2L_R2-L_CALIBRATE-S2L-TRACK  , and then click Run  and allow the routine to complete.
    NOTE: Click the X at the top right corner of the window to close once complete.
  17. Disconnect Toolbox and remove the laptop from the vehicle.
  18. Raise the front windows and close the LH front door.
