Actuator - EZ Entry - 60 Track - 2nd Row Seat (7 Seat) - Remove And Replace: Remove

Remove the LH 2nd row seat assembly from the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (7 SEAT) (REMOVE AND REPLACE) .
Move the LH 2nd row seat backs to the upright position.

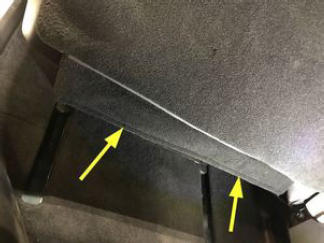

Release the J-hooks (x6) that attach the rear toe kick to the LH 2nd row seat assembly.
NOTE: Release lower outer hooks (x2) to expose the inner clips (x4).

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

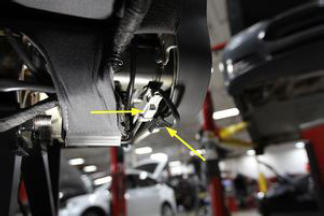

Disconnect the 2nd row center seatbelt buckle electrical connector, and then release the edge clip that attaches the connector to the seat assembly.

Courtesy of TESLA, INC.
Remove and discard the bolt that attaches the 2nd row center seatbelt buckle to the seat assembly, and then remove the buckle from the seat assembly.
45 N.m (33.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T50 socket
Courtesy of TESLA, INC.
Remove the LH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
Remove the LH 2nd row recliner cover. See COVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .

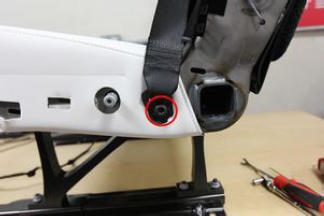

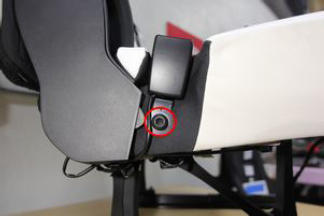

Remove the bolt that attaches the LH 2nd row outer seatbelt to the seat assembly, and then remove the seatbelt from the seat assembly.
45 N.m (33.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T50 socket
Courtesy of TESLA, INC.

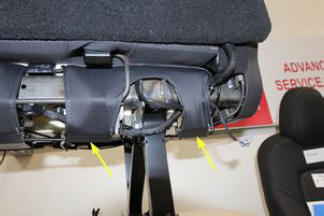

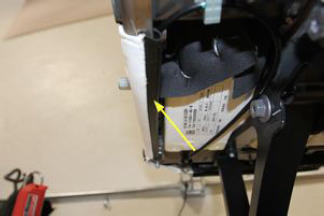

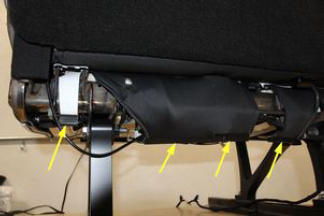

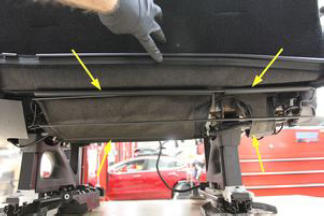

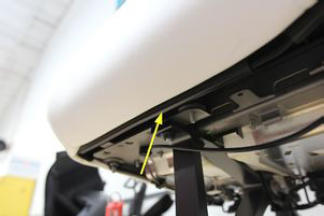

Release the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

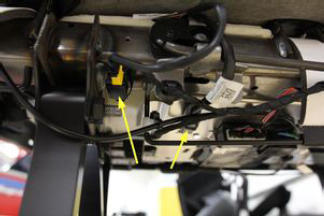

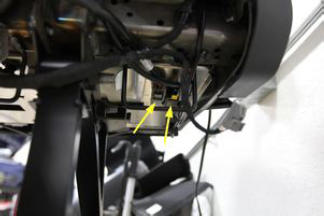

Disconnect the LH 2nd row seat - seat cushion electrical connectors (x4), and then release the clips (x2) that attach the black connectors (x2) to the seat frame.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

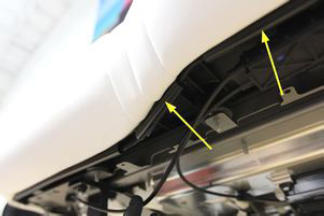

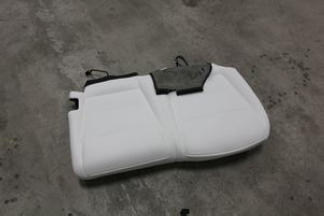

Remove the LH 2nd row seat cushion assembly from the seat assembly.
CAUTION: Use caution when feeding the J-hooks and connectors through the seat frame.

Courtesy of TESLA, INC.

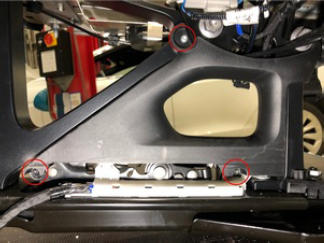

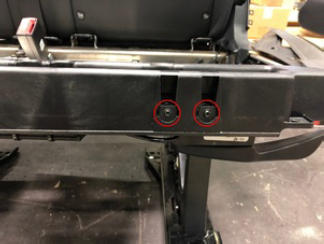

Remove the screws (x3) that attach the inboard seat riser cover to the LH 2nd row inboard seat riser.
Tip: Use of the following tool(s) is recommended:
- T20 socket
Courtesy of TESLA, INC.

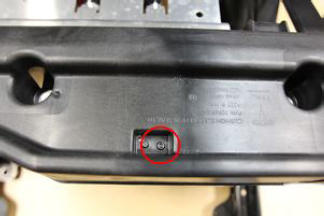

Remove the screw that attaches the outboard seat riser cover to the LH 2nd row inboard seat riser.
Tip: Use of the following tool(s) is recommended:
- T20 socket
Courtesy of TESLA, INC.

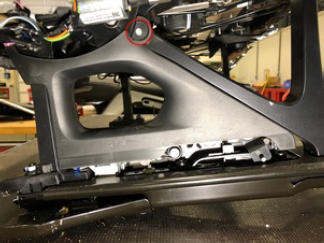

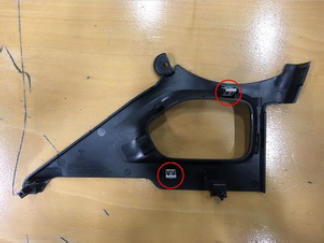

Release the clips (x2) that attach the outboard seat riser cover to the LH 2nd row inboard seat riser, and then remove the inboard and outboard covers from the seat riser.

Courtesy of TESLA, INC.
Repeat step 12 through step 14 for the 2nd row outboard seat riser.
Remove the screw that attaches the splitter box to the LH 2nd row seat assembly.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T20 socket
Courtesy of TESLA, INC.
Remove the screw that attaches the splitter box spring to the LH 2nd row seat assembly.
1.5 N.m (1.1 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T20 socket
Courtesy of TESLA, INC.

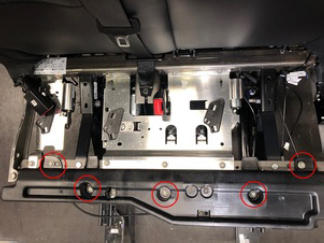

Remove the bolts (x5) that attach the front cushion support to the seat assembly, and then remove the support from the assembly.
6 N.m (4.4 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

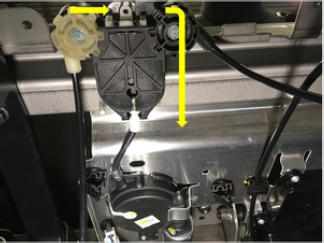

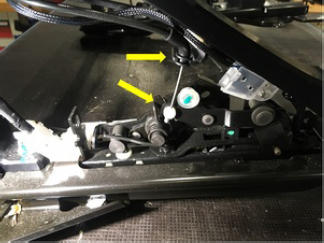

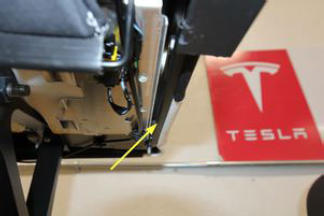

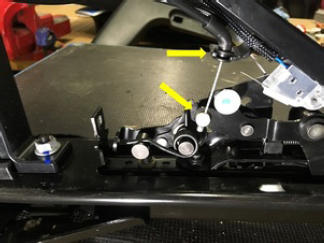

Release the actuator cable from the LH track.

Courtesy of TESLA, INC.
Release the actuator cable from the RH track.

Courtesy of TESLA, INC.

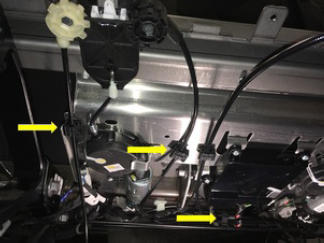

Release the actuator cables from the cable clips (x3).
NOTE: Do not remove the clip from the seat frame.

Courtesy of TESLA, INC.

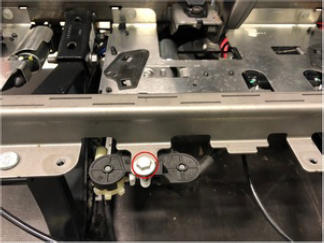

Remove the bolt that attaches the 2nd row seat 60 track EZ entry actuator to the seat frame.
6 N.m (4.4 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.

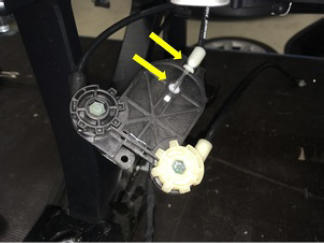

Remove the 2nd row seat 60 track EZ entry actuator from seat frame.
NOTE: Turn 30 degrees to the right, and then push back to remove from the seat frame.

Courtesy of TESLA, INC.

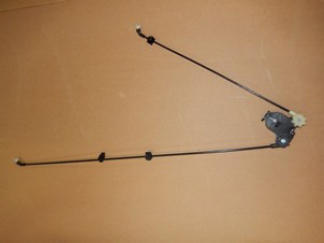

Remove the 2nd row seat 60 track EZ entry actuator from the seat assembly.

Courtesy of TESLA, INC.
