Actuator - EZ Entry - 60 Track - 2nd Row Seat (7 Seat) - Remove And Replace: Install

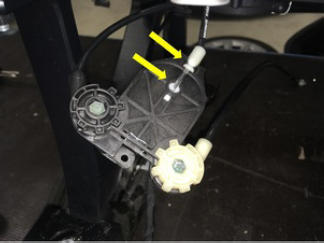

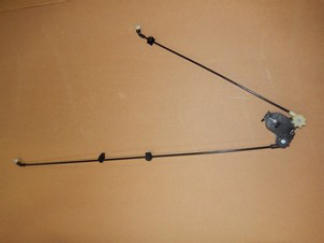

  1. Install the 2nd row seat 60 track EZ entry actuator to the actuator assembly.
    NOTE: Do not remove the black pin before the actuator assembly cable is attached to the actuator.
    G15402045Courtesy of TESLA, INC.
    G15402046Courtesy of TESLA, INC.

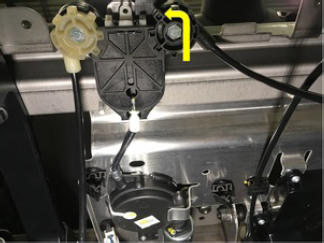

  2. Install the actuator assembly onto the seat frame.
    NOTE: Attach the actuator assembly onto the back tab, and then move forward and turn 30 degrees to latch on the second tab.
    G15402047Courtesy of TESLA, INC.

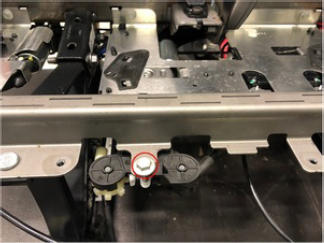

  3. Install the bolt that attaches the 2nd row seat 60 track EZ entry actuator to the seat frame.

    6 N.m (4.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15402048Courtesy of TESLA, INC.

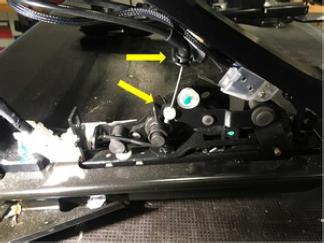

  4. Secure the actuator cable to the RH track.
    G15402049Courtesy of TESLA, INC.

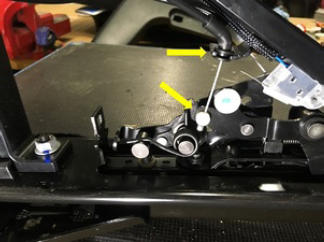

  5. Secure the actuator cable to the LH track.
    G15402050Courtesy of TESLA, INC.

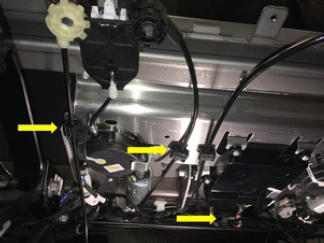

  6. Install the actuator cables to the cable clips (x3).
    G15402051Courtesy of TESLA, INC.

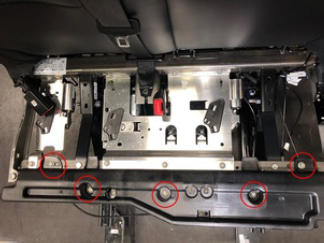

  7. Install the bolts (x5) that attach the front cushion support to the seat assembly.

    6 N.m (4.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G15402052Courtesy of TESLA, INC.

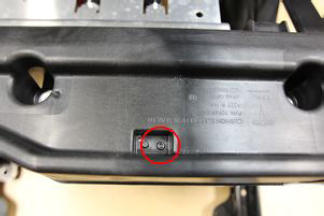

  8. Install the screw that attaches the splitter box to the LH 2nd row seat assembly.

    1.5 N.m (1.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    G15402053Courtesy of TESLA, INC.

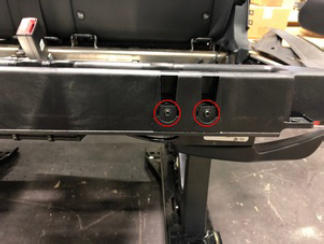

  9. Install the screw that attaches the splitter box spring to the LH 2nd row seat assembly.

    1.5 N.m (1.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    G15402054Courtesy of TESLA, INC.

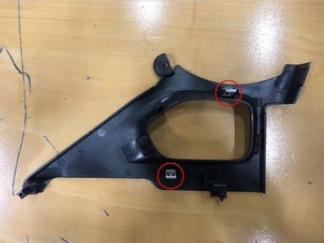

  10. Position the inboard and outboard seat riser covers onto the LH 2nd row inboard seat riser, and then secure the clips (x2) that attach the inboard and outboard covers to the seat riser.
    G15402055Courtesy of TESLA, INC.

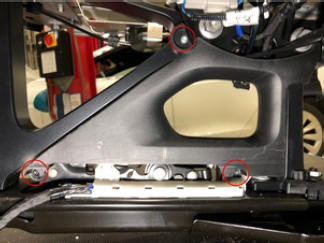

  11. Install the screws (x3) that attach the inboard seat riser cover to the LH 2nd row inboard seat riser.

    2 N.m (1.5 ft-lbs)

    4 N.m (2.9 ft-lbs)

    NOTE: The top screw has a torque value of 4 N.m and the bottom screws (x2) have a torque value of 2 N.m.

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    G15402056Courtesy of TESLA, INC.

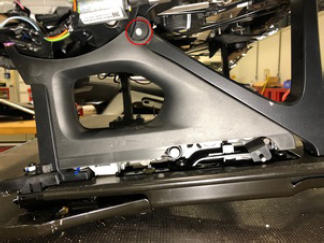

  12. Install the screw that attaches the outboard seat riser cover to the LH 2nd row inboard seat riser.

    4 N.m (2.9 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    G15402057Courtesy of TESLA, INC.
  13. Repeat step  10 through step  12 for the inboard seat riser.

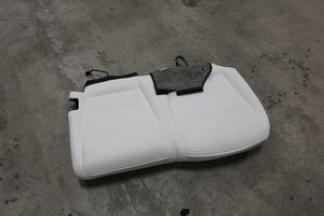

  14. Install the LH 2nd row seat cushion assembly into the seat assembly.
    CAUTION: Use caution when feeding the J-hooks and connectors through the seat frame.
    G15402058Courtesy of TESLA, INC.

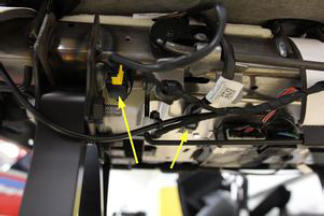

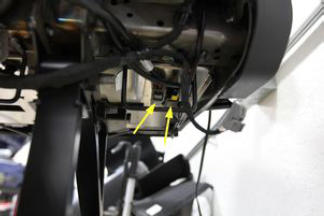

  15. Secure the black connectors (x2) to the LH 2nd row seat frame, and then connect the electrical connectors (x4).
    G15402059Courtesy of TESLA, INC.
    G15402060Courtesy of TESLA, INC.

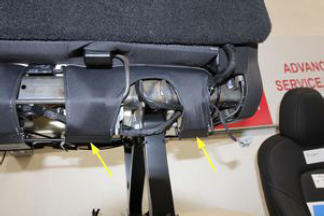

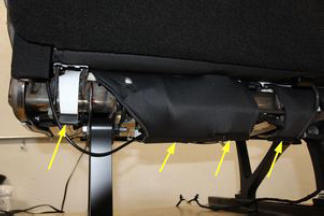

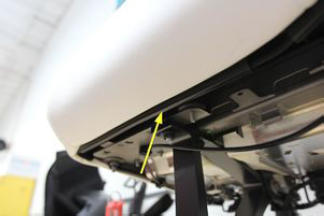

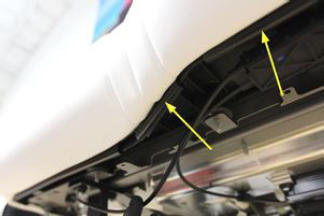

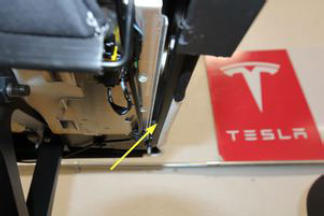

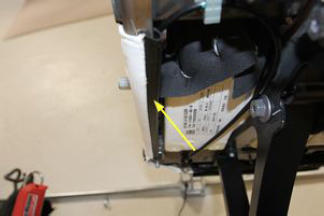

  16. Secure the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.
    G15402061Courtesy of TESLA, INC.
    G15402062Courtesy of TESLA, INC.
    G15402063Courtesy of TESLA, INC.
    G15402064Courtesy of TESLA, INC.
    G15402065Courtesy of TESLA, INC.
    G15402066Courtesy of TESLA, INC.

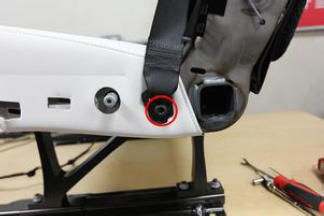

  17. Position the LH 2nd row outer seat belt to the seat assembly, and then install a new bolt that attaches seatbelt to the seat assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T50 socket
    G15402067Courtesy of TESLA, INC.
  18. Install the LH 2nd row recliner cover. See COVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
  19. Install the LH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .

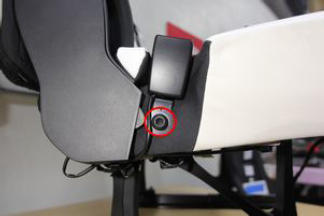

  20. Position the 2nd row center seatbelt buckle onto the seat assembly, and then install a new bolt that attaches the buckle to the seat assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T50 socket
    G15402068Courtesy of TESLA, INC.

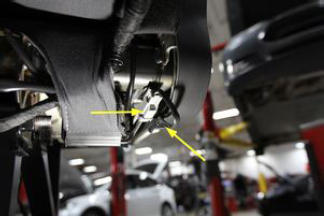

  21. Secure the edge clip that attaches the 2nd row center seatbelt buckle electrical connector to the seat assembly, and then connect the connector.
    G15402069Courtesy of TESLA, INC.

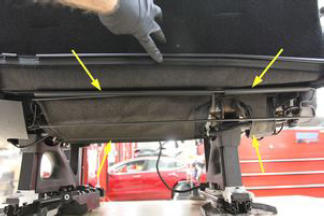

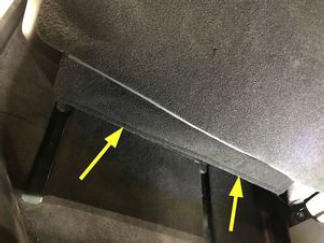

  22. Secure toe kick to 60 seat assembly.
    NOTE: 6x J-hooks, Secure inner 4 clips, then lower outer 2.
    G15402070Courtesy of TESLA, INC.
    G15402071Courtesy of TESLA, INC.
  23. Fold LH 2nd row seat to the down position.
  24. Install the LH 2nd row seat assembly into the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (7 SEAT) (REMOVE AND REPLACE) .
    NOTE: It is not necessary to redeploy the vehicle firmware after installing the seat assembly.
