Actuator - EZ Entry - 40 Track - 2nd Row Seat (7 Seat) - Remove And Replace: Install

Position the 2nd row seat 40 track EZ entry actuator on the vehicle, and then install the tabs (x3) that attach the actuator to the bracket.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

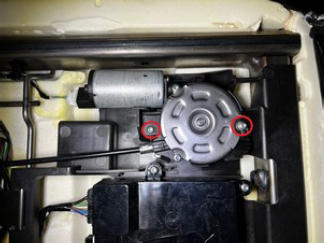

Install the screws (x3) that attach the 2nd row seat 40 track EZ entry actuator to the bracket.
1 N.m (.7 ft-lbs)

NOTE: Align the screws with the actuator bracket.

Tip: Use of the following tool(s) is recommended:
- Flex head ratchet/flex head torque wrench
- Ratchet/torque wrench
- Torx T15 socket
Courtesy of TESLA, INC.

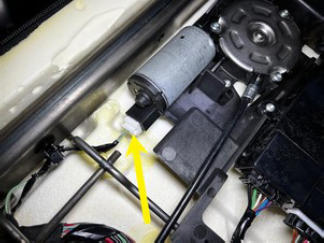

Connect the 2nd row seat 40 track EZ entry actuator connector.

Courtesy of TESLA, INC.

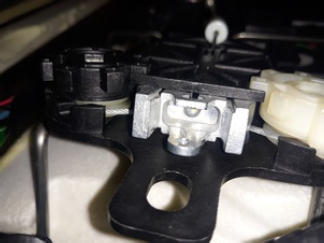

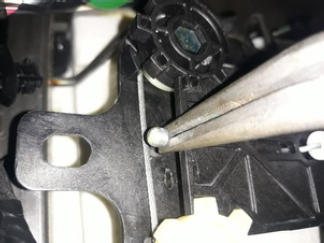

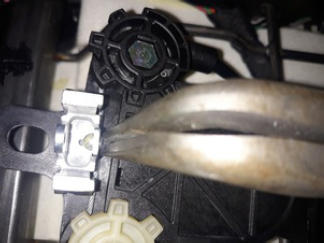

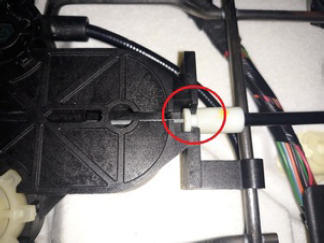

Position the 2nd row 40 seat actuator slider vertically on the vehicle, and then install the cable end fitting into the slider opening.
CAUTION: Do not kink or damage the cable.

NOTE: Use the pliers to hold the cable end fitting in place during slider installation.

Tip: Use of the following tool(s) is recommended:
- Needle nose long bent pliers
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

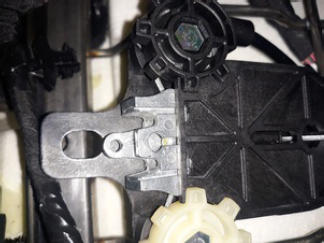

Attach the 2nd row 40 seat actuator slider cable to the slider.
CAUTION: Do not kink or damage the cable.

Courtesy of TESLA, INC.
Install the clips (x2) that attach the 2nd row 40 seat actuator slider to the seat frame.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

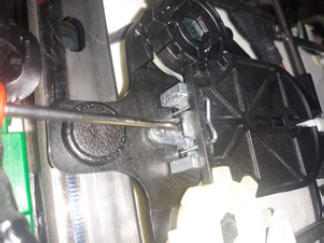

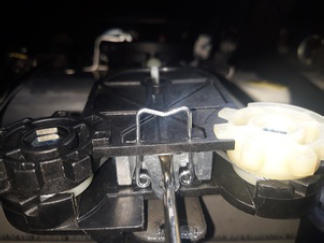

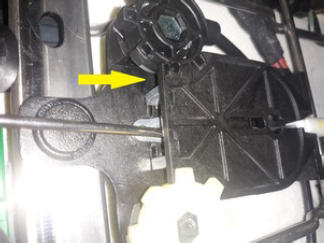

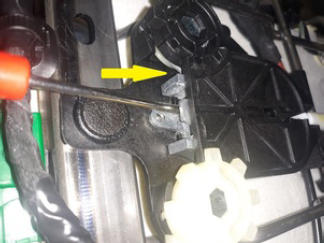

Apply forward pressure to the 2nd row 40 seat actuator slider, and then install the new metal clip on the slider.
NOTE: Do not deform or damage the clip.

NOTE: Use the flat side of the plastic trim tool to aid clip installation. Verify slider operation, and ensure proper functionality.

Tip: Use of the following tool(s) is recommended:
- Plastic trim tool
- Small flat head screwdriver
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

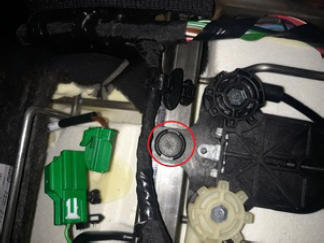

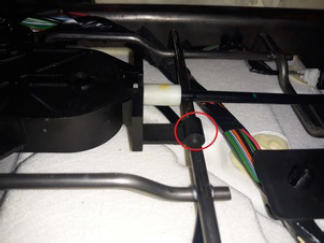

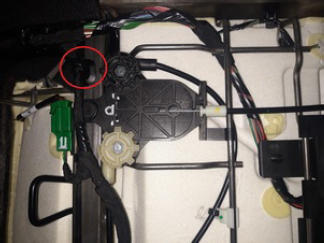

Install the clip that attaches the 2nd row 40 seat harness to the seat frame.

Courtesy of TESLA, INC.

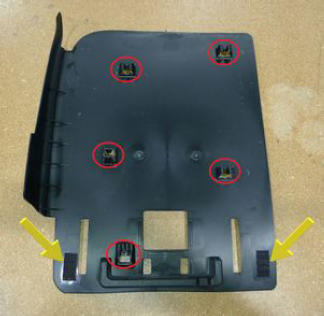

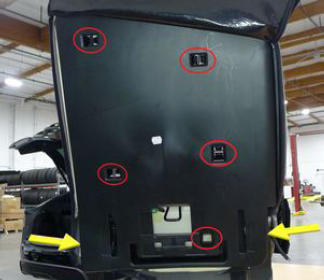

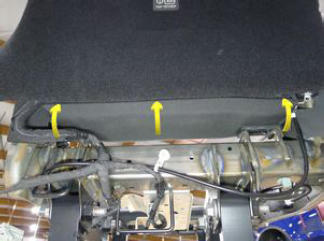

Position the 2nd row 40 seat plastic seat back on the seat, and then install the clips (x5) and Velcro strips (x2) that attach the seat back to the seat.
NOTE: Fold the backrest cover and attach the corners of the Velcro strips.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

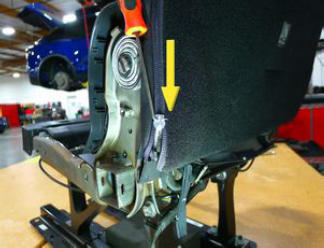

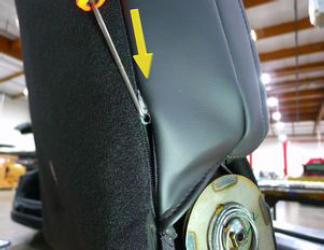

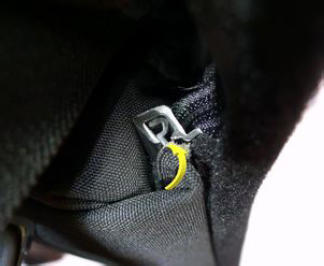

Zip the 2nd row 40 seat back upholstery on the LH and RH sides of the backrest cover.
NOTE: Ensure the ends of the zippers are tucked underneath the seat upholstery. Use a pick to aid in tucking the zippers.

Tip: Use of the following tool(s) is recommended:
- 6 in 90 degree tip miniature soft grip pick
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

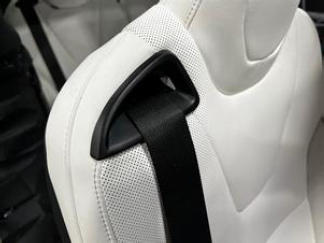

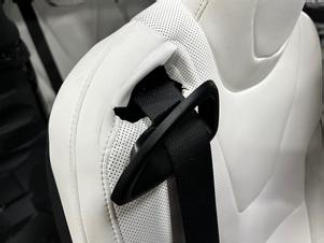

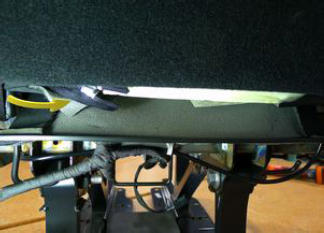

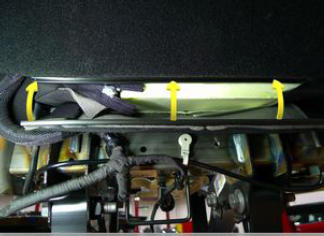

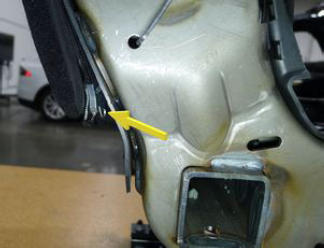

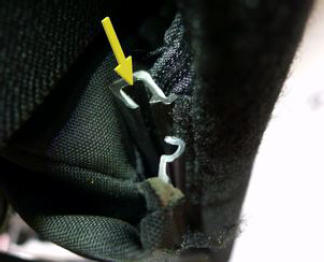

Install the J-hook that attaches the 2nd row 40 seat back upholstery to the seat.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

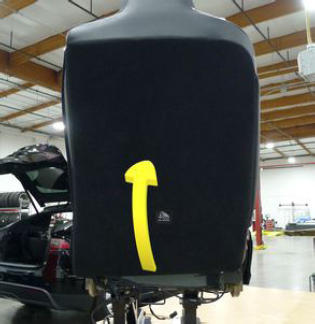

Unfold the 2nd row 40 seat into original position.

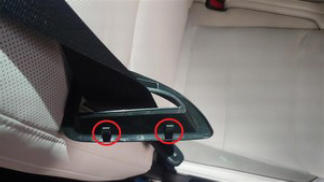

Starting at the top, carefully install the clips (x2) that attach the 2nd row 40 seat escutcheon to the seat.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Close the RH falcon wing door.
Move the RH front seat into original position.
Raise the RH front window.
Close the RH front door.
