Actuator - 60 Track - 2nd Row Seat (7 Seat) - Remove And Replace: Remove
- Remove the LH 2nd row seat assembly from the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (7 SEAT) (REMOVE AND REPLACE) .
- Move the LH 2nd row seat backs to the upright position.

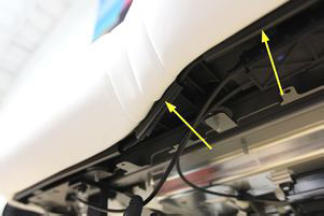

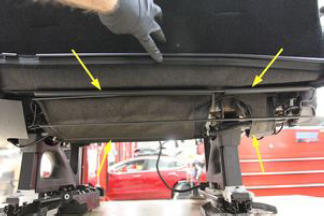

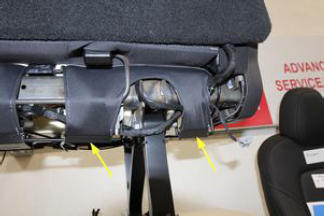

- Release the J-hooks (x6) that attach the rear toe kick to the LH 2nd row seat assembly.NOTE: Release the outer clips (x2) to expose the inner clips (x4).

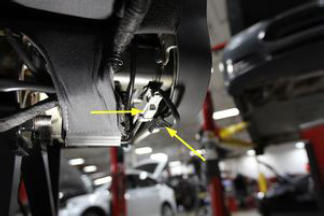

- Disconnect the 2nd row center seatbelt buckle electrical connector, and then release the edge clip that attaches the connector to the seat assembly.

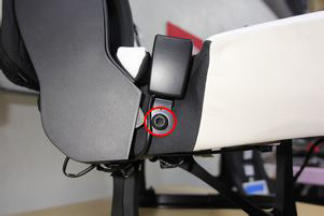

- Remove and discard the bolt that attaches the 2nd row center seatbelt buckle to the seat assembly, and then remove the buckle from the seat assembly.
45 N.m (33.2 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T50 socket
- Remove the LH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
- Remove the LH 2nd row recliner cover. See COVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .

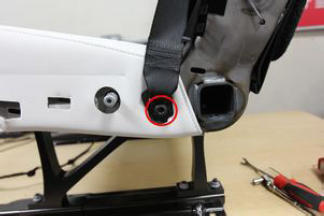

- Remove the bolt that attaches the LH 2nd row outer seatbelt to the seat assembly, and then remove the seatbelt from the seat assembly.
Tip: Use of the following tool(s) is recommended:
- Torx T50 socket

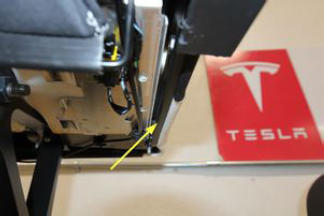

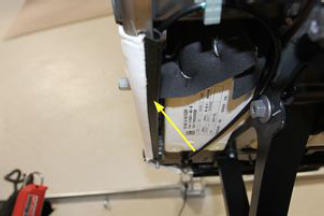

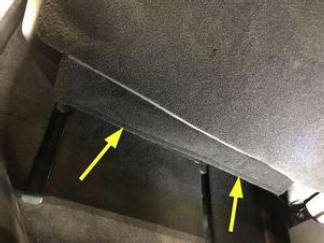

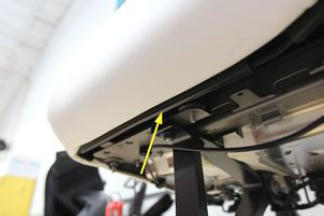

- Release the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.

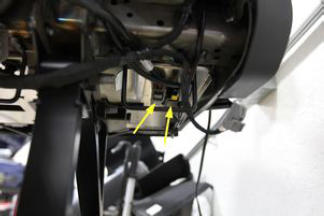

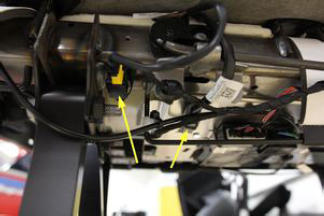

- Disconnect the LH 2nd row seat - seat cushion electrical connectors (x4), and then release the black connectors (x2) from the seat frame.

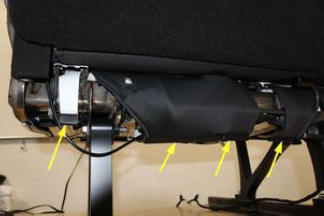

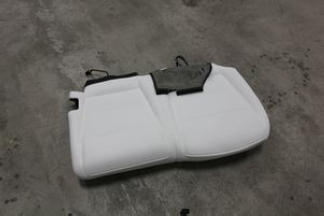

- Remove the LH 2nd row seat cushion assembly from the seat assembly.CAUTION: Use caution when feeding the J-hooks and connectors through the seat frame.

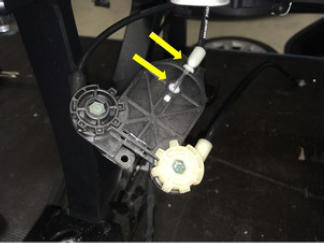

- Release the cable from the actuator assembly.

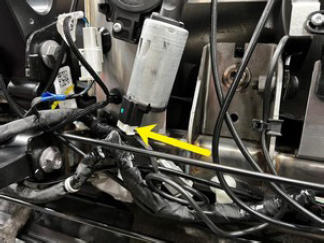

- Disconnect the 2nd row seat 60 track actuator electrical connector.

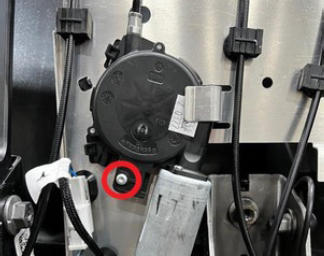

- Remove the screw that attaches the 2nd row seat 60 track actuator to the bracket.
Tip: Use of the following tool(s) is recommended:
- Torx T15 socket

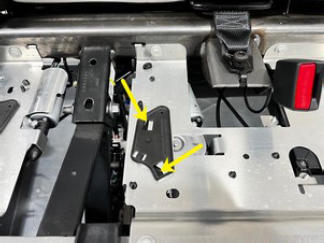

- Release the tabs (x2) that attach the 2nd row seat 60 track actuator to the seat assembly, and then remove the actuator from the assembly.
