Actuator - 60 Track - 2nd Row Seat (7 Seat) - Remove And Replace: Install

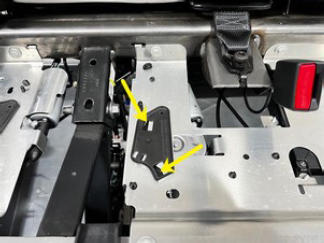

  1. Position the 2nd row seat 60 track actuator into the seat assembly, and then secure the tabs (x2) that attach the actuator to the assembly.
    G15401777Courtesy of TESLA, INC.

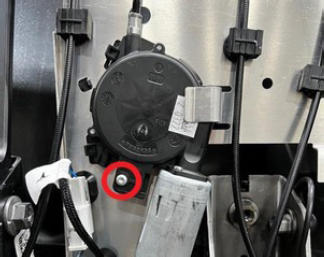

  2. Install the screw that attaches the 2nd row seat 60 track actuator to the bracket.

    1 N.m (.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T15 socket
    G15401778Courtesy of TESLA, INC.

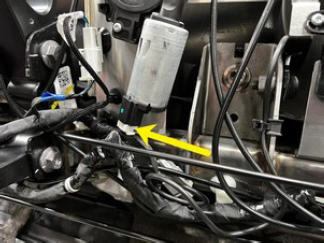

  3. Connect the 2nd row seat 60 track actuator electrical connector.
    G15401779Courtesy of TESLA, INC.

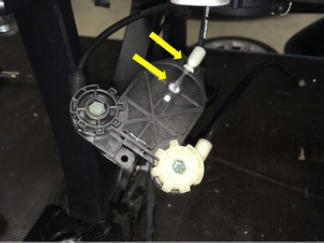

  4. Install the cable into the actuator assembly.
    NOTE: Do not remove the black pin before the actuator assembly cable is attached to the actuator.
    G15401780Courtesy of TESLA, INC.

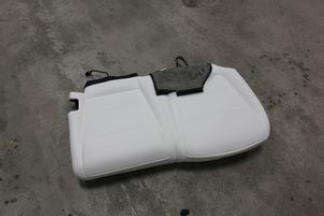

  5. Install the LH 2nd row seat cushion assembly into the seat assembly.
    CAUTION: Use caution when feeding the J-hooks and connectors through the seat frame.
    G15401781Courtesy of TESLA, INC.

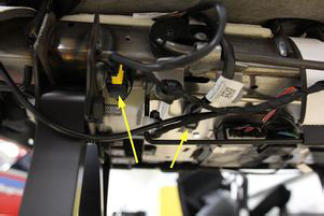

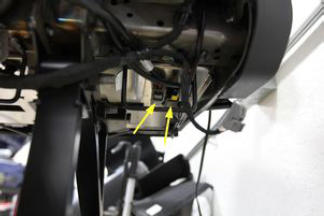

  6. Secure the black connectors (x2) to the LH 2nd row seat frame, and then connect the electrical connectors (x4).
    G15401782Courtesy of TESLA, INC.
    G15401783Courtesy of TESLA, INC.

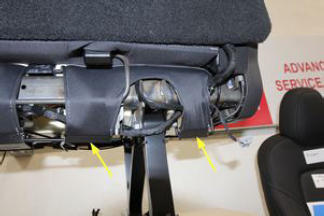

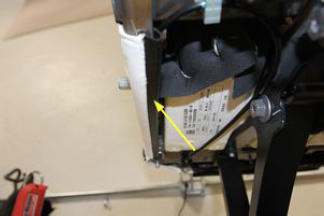

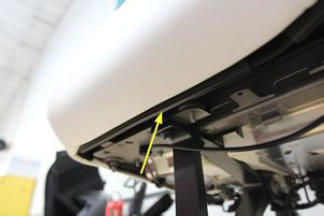

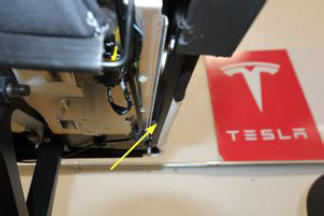

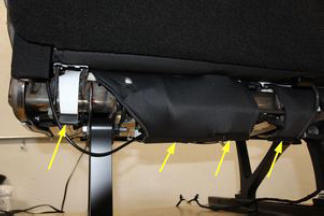

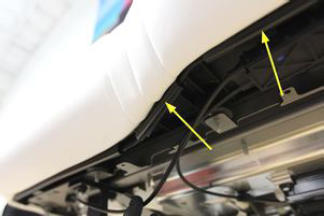

  7. Secure the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.
    G15401784Courtesy of TESLA, INC.
    G15401785Courtesy of TESLA, INC.
    G15401786Courtesy of TESLA, INC.
    G15401787Courtesy of TESLA, INC.
    G15401788Courtesy of TESLA, INC.
    G15401789Courtesy of TESLA, INC.

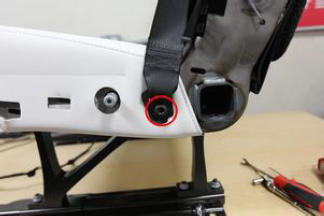

  8. Position the LH 2nd row outer seat belt to the seat assembly, and then install a new bolt that attaches seatbelt to the seat assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T50 socket
    G15401790Courtesy of TESLA, INC.
  9. Install the LH 2nd row recliner cover. See COVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .
  10. Install the LH 2nd row recliner lever. See LEVER - RECLINER - 2ND ROW - LH (REMOVE AND REPLACE) .

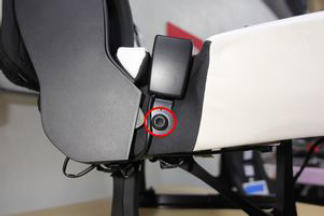

  11. Position the 2nd row center seatbelt buckle onto the seat assembly, and then install a new bolt that attaches the buckle to the seat assembly.

    45 N.m (33.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T50 socket
    G15401791Courtesy of TESLA, INC.

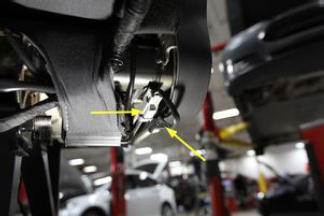

  12. Secure the edge clip that attaches the 2nd row center seatbelt buckle electrical connector to the seat assembly, and then connect the connector.
    G15401792Courtesy of TESLA, INC.

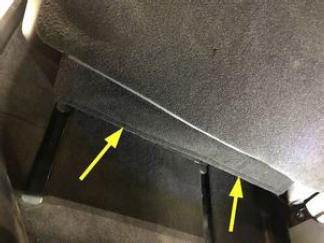

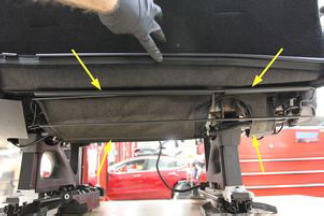

  13. Secure the J-hooks (x6) that attach the rear toe kick to the LH 2nd row seat assembly.
    NOTE: Secure the inner clips (x4), and then secure the outer clips (x2).
    G15401793Courtesy of TESLA, INC.
    G15401794Courtesy of TESLA, INC.
  14. Fold the LH 2nd row seat back to the down position.
  15. Install the LH 2nd row seat assembly from the vehicle. See SEAT ASSEMBLY - 2ND ROW - LH (7 SEAT) (REMOVE AND REPLACE) .
    NOTE: It is not necessary to perform Service Redeploy after installation.
