- Position the RH 2nd row 60/40 seat switch into the belt escutcheon bracket, and then secure the tabs (x2) that attach the switch to the bracket.
NOTE:
Make sure the tabs are fully secured to the bracket.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Connect the RH 2nd row 60/40 seat switch electrical connector.
 Courtesy of TESLA, INC.
|

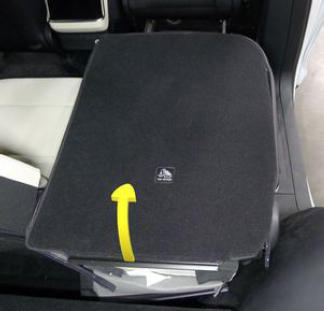

- Position the RH 2nd row plastic seat back into the seat assembly, and then secure the clips (x5) and Velcro strips (x2) that attach the plastic seat back to the assembly.
NOTE:
Fold the backrest cover over the headrest for access.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Zip the RH 2nd row seat back upholstery on both sides of the RH 2nd row seat back.
NOTE:
Use a pick to aid in moving the zipper.
NOTE:
Tuck the ends of zippers underneath the upholstery.
CAUTION:
Be careful not to pull the zipper off track.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Secure the J-hook that attaches the RH 2nd row seat back upholstery to the seat
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Move the RH 2nd row seat the original position.

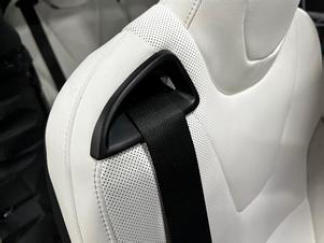

- Position the RH outer 2nd row escutcheon into from the RH 2nd row seat back, and then secure the clips (x2) that attach the escutcheon to the seat back.
NOTE:
Press in the top and carefully seat the lower clips.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Close the RH doors and raise the RH front window.
