Trim - C-Pillar - Upper - LH - Remove And Replace: Remove
- Open the liftgate and LH rear door.

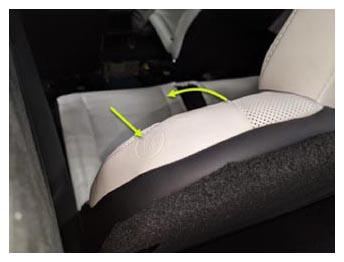

- Fold the LH 3rd row seat back into the down position.
 Courtesy of TESLA, INC.
|

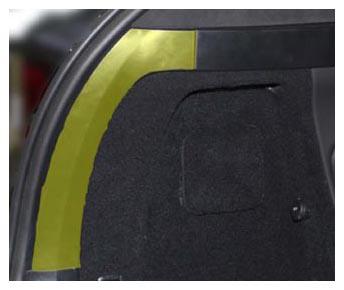

- Release the clips (x4) that attach the LH trunk sill side trim to the body, and then remove the side trim.
 Courtesy of TESLA, INC.
|

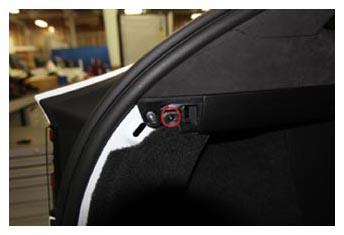

- Remove the screw that attaches the LH mid C-pillar trim to the LH C-pillar zone bracket.
 Courtesy of TESLA, INC.
|

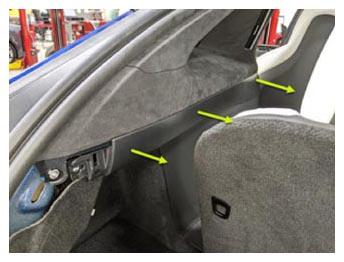

- Release the clips (x9) that attach the LH mid C-pillar trim to the LH mid C-pillar zone bracket, and then remove the mid C-pillar trim from the vehicle.
 Courtesy of TESLA, INC.
|

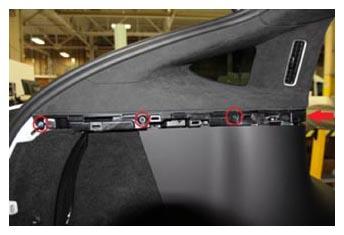

- Remove the screws (x3) and discard the bolt that attaches the upper LH C-pillar trim to the LH mid C-pillar zone bracket.
 Courtesy of TESLA, INC.
|

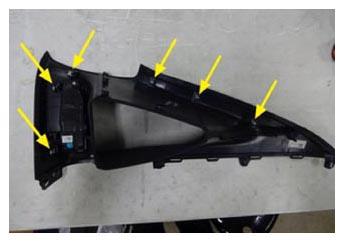

- Release the clips (x6) that attach the LH upper C-pillar trim to the body and remove the upper C-pillar trim from the vehicle.
 Courtesy of TESLA, INC.
|
