Trim - C-Pillar - Upper - LH - Remove And Replace: Install

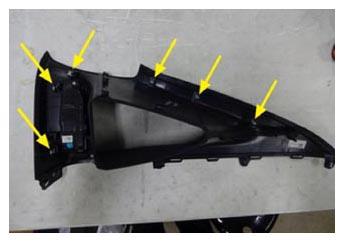

Install the LH upper C-pillar trim to the body and then fasten the clips (x6) that attach the upper C-pillar trim to the body.

Courtesy of TESLA, INC.

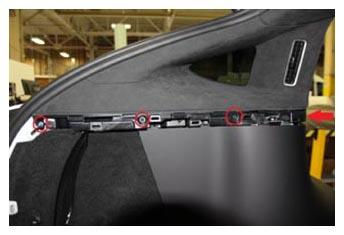

Install the screws (x3) and a new bolt to attach the upper LH C-pillar trim to the LH mid C-pillar zone bracket.
2 N.m (1.5 ft-lbs)

3 N.m (2.2 ft-lbs)

NOTE: Torque T20 screws to 2 N.m, T25 bolts to 3 N.m.

Courtesy of TESLA, INC.

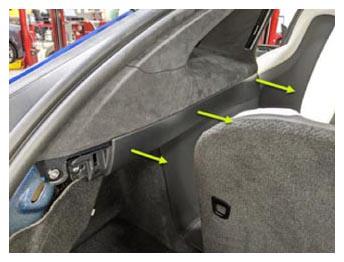

Install the LH mid C-pillar trim to the LH mid C-pillar zone bracket, and then fasten the clips (x9) that attach the mid C-pillar trim to the C-pillar zone bracket.

Courtesy of TESLA, INC.

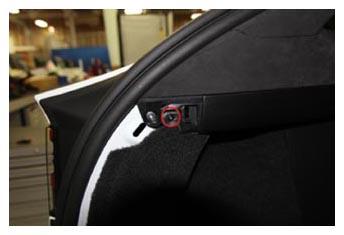

Install the screw that attaches the LH mid C-pillar trim to the LH C-pillar zone bracket.
2 N.m (1.5 ft-lbs)

Courtesy of TESLA, INC.

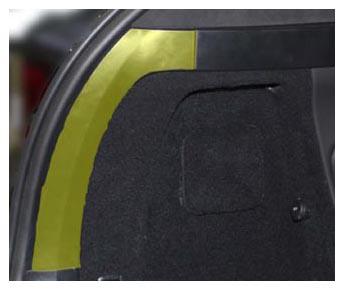

Install the LH trunk sill side trim to the body, and then fasten the clips (x4) that attach the side trim to the body.

Courtesy of TESLA, INC.

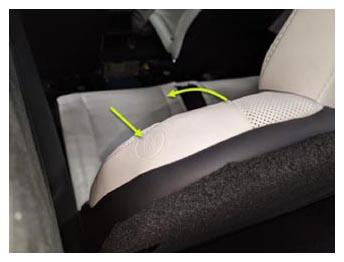

Fold the LH 3rd row seat back into the up position.

Courtesy of TESLA, INC.
Close the liftgate and LH rear door.
