Trim - C-Pillar - Mid - LH - Remove And Replace: Remove

  1. Open the liftgate.

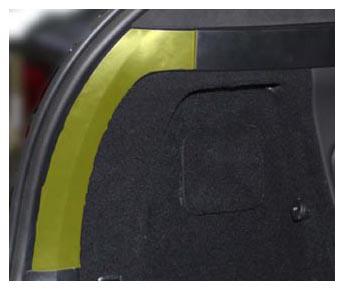

  2. Release the clips (x4) that attach the LH trunk sill side trim to the body, and then remove the side trim.
    G15396072Courtesy of TESLA, INC.

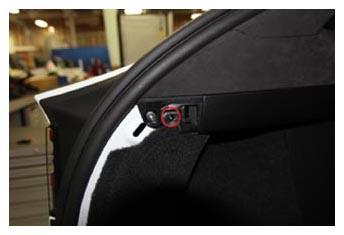

  3. Remove the screw that attaches the LH mid C-pillar trim to the LH C-pillar zone bracket.
    G15396073Courtesy of TESLA, INC.

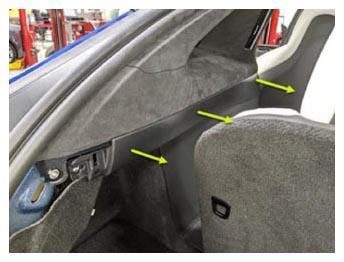

  4. Release the clips (x9) that attach the LH mid C-pillar trim to the LH mid C-pillar zone bracket, and then remove the mid C-pillar trim from the vehicle.
    G15396074Courtesy of TESLA, INC.
