Trim - C-Pillar - Mid - LH - Remove And Replace: Install

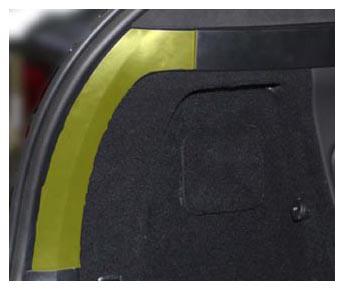

- Install the LH mid C-pillar trim to the LH mid C-pillar zone bracket, and then fasten the clips (x9) that attach the mid C-pillar trim to the C-pillar zone bracket.

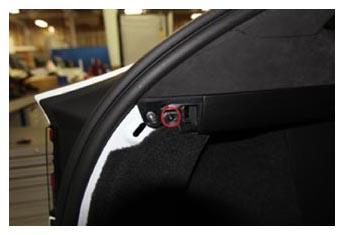

- Install the screw that attaches the LH mid C-pillar trim to the LH C-pillar zone bracket.
2 N.m (1.5 ft-lbs)

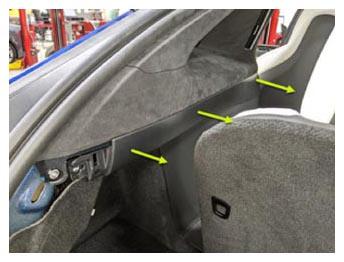

- Install the LH trunk sill side trim to the body, and then fasten the clips (x4) that attach the side trim to the body.
- Close the liftgate.
