Trim - C-Pillar - Lower - LH - Remove And Replace: Remove

Open the LH falcon wing door.
Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
Open the liftgate.

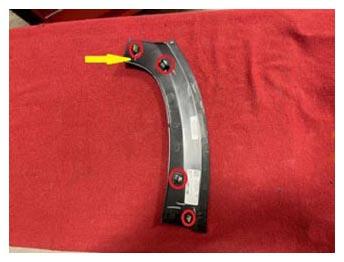

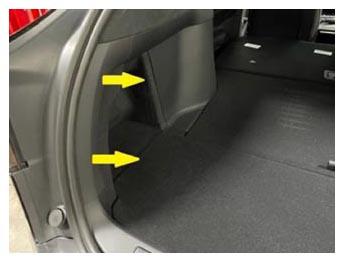

Release the clips (x4) that attach the LH trunk sill side trim to the body, and then remove the side trim from the vehicle.
Tip: Use of the following tool(s) is recommended:
- Plastic trim tool
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Remove the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .

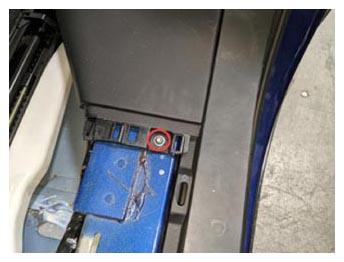

Remove and discard the bolt that attaches the LH lower C-pillar trim to the vehicle.
Tip: Use of the following tool(s) is recommended:
- Flex head ratchet/flex head torque wrench
- Torx T25 socket
Courtesy of TESLA, INC.

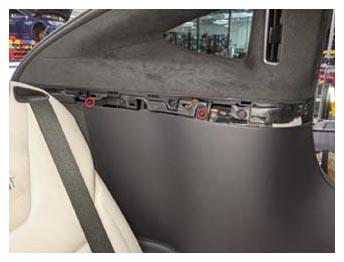

Remove the screws (x2) that attach the LH lower C-pillar trim to the LH mid C-pillar zone bracket, and then remove the trim from the vehicle.
Tip: Use of the following tool(s) is recommended:
- 4 in extension
- Flex head ratchet/flex head torque wrench
- Torx T20 socket
Courtesy of TESLA, INC.
