Trim - C-Pillar - Lower - LH - Remove And Replace: Install

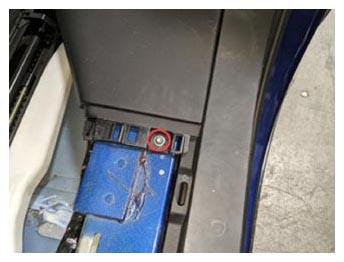

Position the LH lower C-pillar trim on the vehicle, and then install the screws (x2) that attach the trim to the LH mid C-pillar bracket.
2 N.m (1.5 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 4 in extension
- Flex head ratchet/flex head torque wrench
- Ratchet/torque wrench
- Torx T20 socket
Courtesy of TESLA, INC.

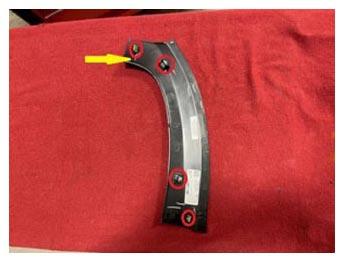

Install a new bolt that attaches the LH lower C-pillar trim to the vehicle.
2.5 N.m (1.8 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Flex head ratchet/flex head torque wrench
- Ratchet/torque wrench
- Torx T25 socket
Courtesy of TESLA, INC.

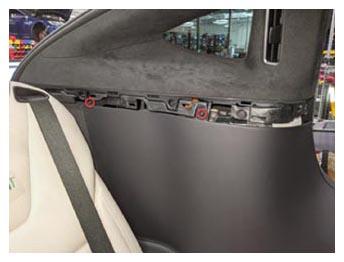

Install the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .

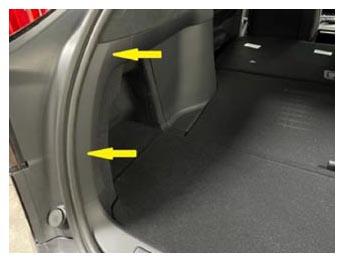

Install the clips (x4) that attach the LH trunk sill side trim to the vehicle.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Close the liftgate.
Install the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
Close the LH falcon wing door.
