Trim - B-Pillar - Upper - LH - Remove And Replace: Remove

  1. Open the LH front door and lower the LH front window.

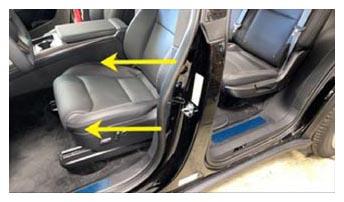

  2. Move the driver seat backward.
  3. Open the LH falcon wing door.

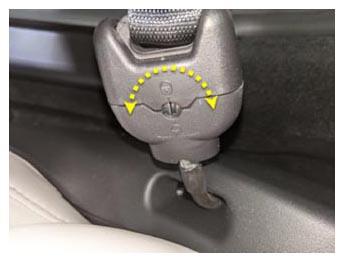

  4. Release the LH front seat belt.
    NOTE: Turn the release mechanism counter clockwise, and then it turn clockwise after releasing.
    G15396047Courtesy of TESLA, INC.

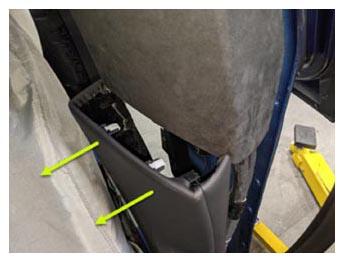

  5. Release the LH front door seal from the B-pillar trim.
    G15396048Courtesy of TESLA, INC.

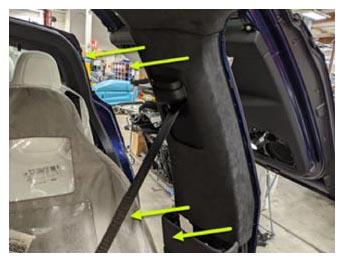

  6. Release the clips (x5) that attach the upper portion of the LH lower B-pillar trim to the LH upper B-pillar trim.
    G15396049Courtesy of TESLA, INC.

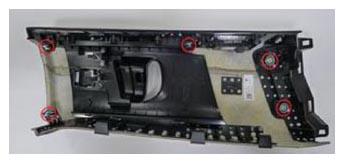

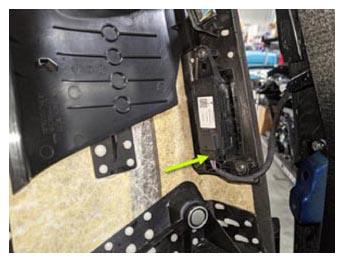

  7. Release the clips (x3) and magnets (x2) that attach the LH upper B-pillar trim to the B-pillar, and then disconnect the LH falcon wing door button electrical connector.
    G15396050Courtesy of TESLA, INC.
    G15396051Courtesy of TESLA, INC.
    G15396052Courtesy of TESLA, INC.

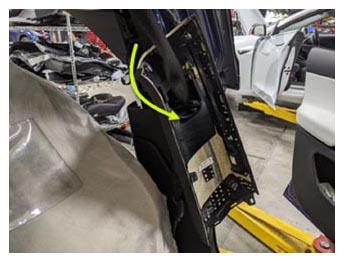

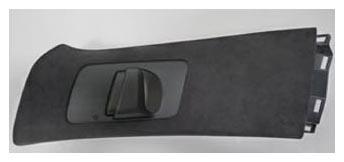

  8. Guide the driver seat seat belt through the height adjuster, and then remove the LH upper B-Pillar trim from the vehicle.
    G15396053Courtesy of TESLA, INC.
    G15396054Courtesy of TESLA, INC.
