Trim - B-Pillar - Upper - LH - Remove And Replace: Install

  1. Guide the driver seat belt through the height adjuster opening, connect the LH falcon wing door button electrical connector, and then secure the clips (x3) and magnets (x2) that attach the LH upper B-pillar trim to the B-pillar.
    NOTE: Align the height adjuster slider to the adjustable D-ring.
    NOTE: Replace any damaged clips.

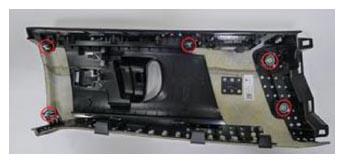

    G15396055Courtesy of TESLA, INC.

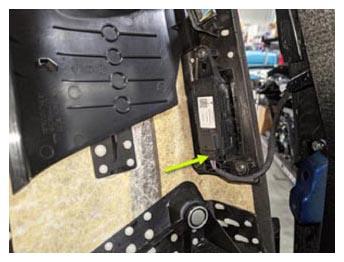

    G15396056Courtesy of TESLA, INC.

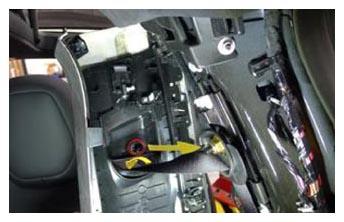

    G15396057Courtesy of TESLA, INC.

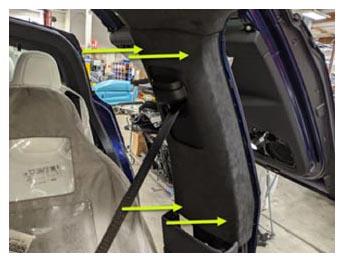

    G15396058Courtesy of TESLA, INC.
  2. Secure the clips (x5) that attach the upper portion of the LH lower B-pillar trim to the LH upper B-pillar trim.
    NOTE: Replace any damaged clips.

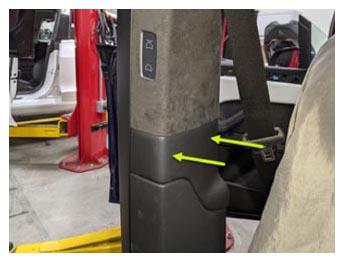

    G15396059Courtesy of TESLA, INC.
  3. Fully seat the LH front door seal along the LH B-pillar.

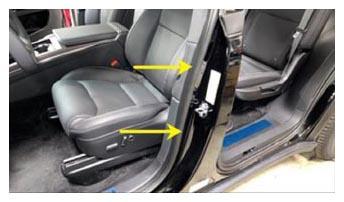

    G15396060Courtesy of TESLA, INC.
  4. Secure the driver seat seat belt.

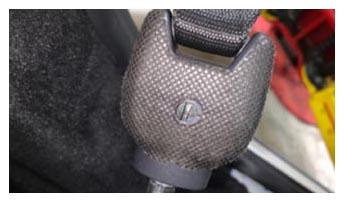

    G15396061Courtesy of TESLA, INC.
  5. Move the driver seat to the original position.
  6. Close the LH falcon wing door.
  7. Raise the LH front window and close the LH front door.
