Trim - B-Pillar - Lower - LH - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.

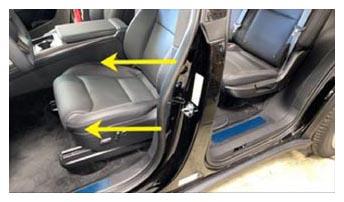

- Move the driver seat forward.
- Open the LH falcon wing door.
- Release the LH front door seal from the B-pillar trim.
- Remove the LH front sill panel trim. See TRIM - SILL PANEL - FRONT - LH (REMOVE AND REPLACE) .
- Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .

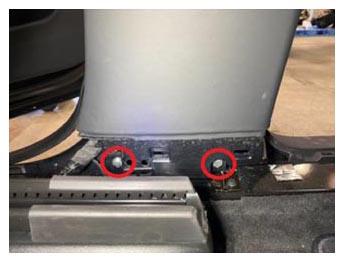

- Remove the bolts (x2) that attach the LH lower B-pillar trim to the B-pillar
3 N.m (2.2 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 8 mm socket

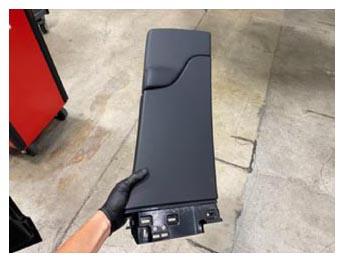

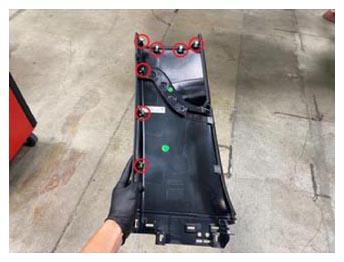

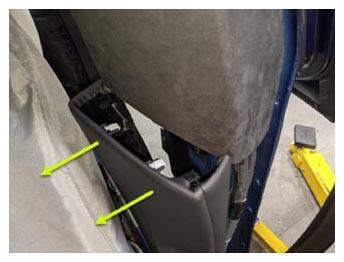

- Release the clips (x7) that attach the LH lower B-pillar trim to the B-pillar, and then remove the trim from the vehicle.
