Trim - B-Pillar - Lower - LH - Remove And Replace: Install

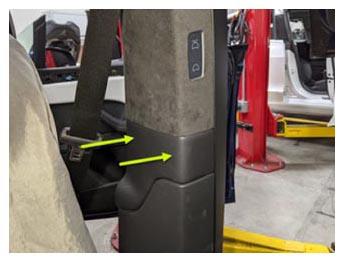

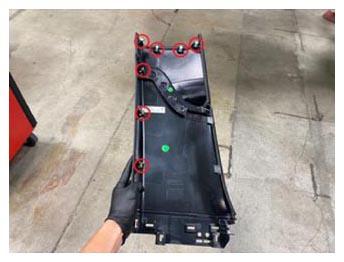

- Position the LH lower B-pillar trim onto the B-pillar, and then secure the clips (x7) that attach the trim to the B-pillar.

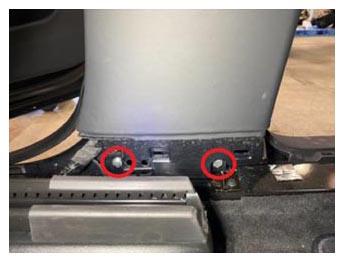

- Install the bolts (x2) that attach the LH lower B-pillar trim to the B-pillar.
3 N.m (2.2 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 8 mm socket
- Install the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
- Install the LH front sill panel trim. See TRIM - SILL PANEL - FRONT - LH (REMOVE AND REPLACE) .

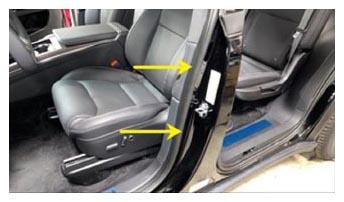

- Fully seat the LH front door seal along the LH B-pillar.
- Move the driver seat to the original position.
- Close the LH falcon wing door.
- Raise the LH front window and close the LH front door.
