Trim - A-Pillar - Upper - LH - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.
- Move the driver seat rearward.
- Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace)
- Remove the LH middle A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
- Remove the LH sun visor bezel A-pillar trim. See TRIM - A-PILLAR - SUN VISOR BEZEL - LH (REMOVE AND REPLACE) .

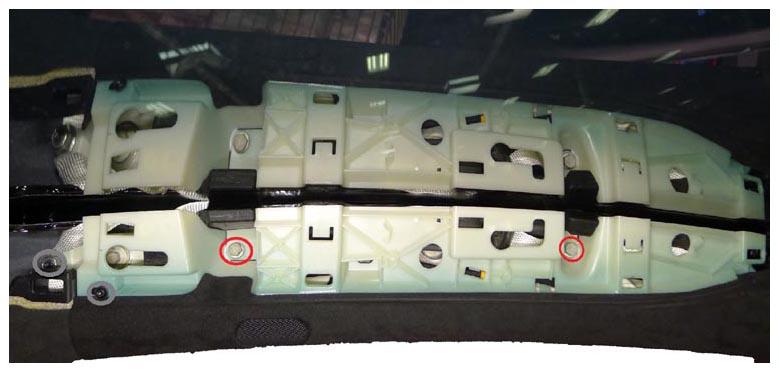

- Remove the bolts (x2) that attach the LH upper A-pillar trim to the vehicle.
Tip: Use of the following tool(s) is recommended:
- 10 mm socket

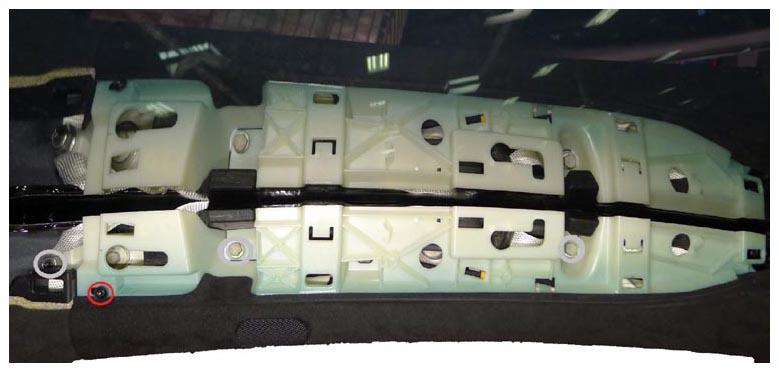

- Remove the screw that attaches the LH upper A-pillar trim to the vehicle.
Tip: Use of the following tool(s) is recommended:
- T20 socket
- Remove and discard the nut that attaches the LH upper A-pillar trim to the vehicle.
Tip: Use of the following tool(s) is recommended:
- 13 mm socket

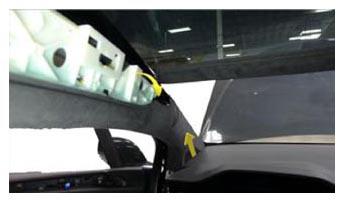

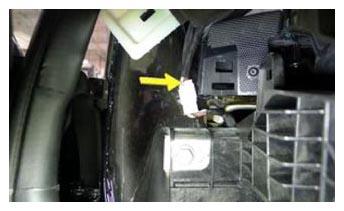

- Release the clips (x6) that attach the LH upper A-pillar trim to the vehicle, disconnect the electrical connector, and then remove the trim from the vehicle.NOTE: Release the clips, and then rotate the trim inboard to access the connector.NOTE: Release the datums upward and out of the instrument panel sub assembly.
