Trim - A-Pillar - Upper - LH - Remove And Replace: Install

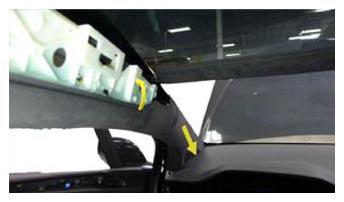

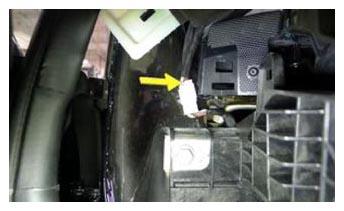

Position the LH upper A-pillar trim into the vehicle, connect the electrical connector and secure the harness, and then secure the clips (x6) that attach the trim to the vehicle.
NOTE: Align the datums into the instrument panel sub assembly.

NOTE: Rotate trim into position to full engage the clips.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install a new nut that attaches the LH upper A-pillar trim to the vehicle.
5 N.m (3.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 13 mm socket
Courtesy of TESLA, INC.

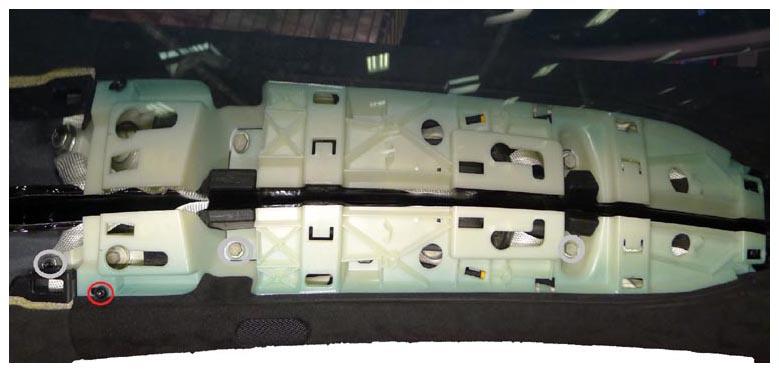

Install the screw that attaches the LH upper A-pillar trim to the vehicle.
2.5 N.m (1.8 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T20 socket
Courtesy of TESLA, INC.

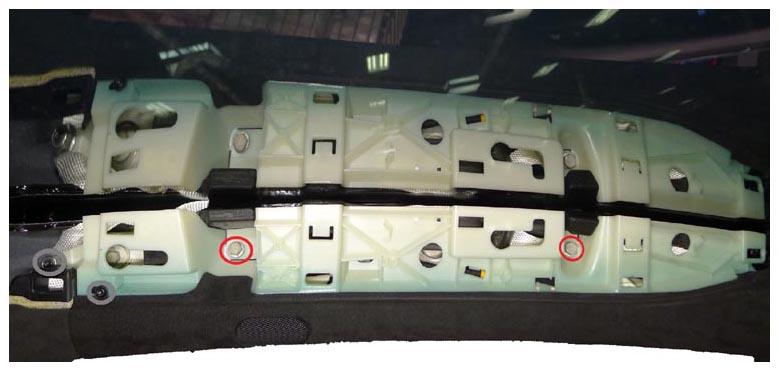

Install the bolts (x2) that attach the LH upper A-pillar trim to the vehicle.
5 N.m (3.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.
Install the LH sun visor bezel A-pillar trim. See TRIM - A-PILLAR - SUN VISOR BEZEL - LH (REMOVE AND REPLACE) .
Install the LH middle A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace)
Move the driver seat to the original position.
Raise the LH front window and close the LH front door.
