Trim - A-Pillar - Middle - LH - Remove And Replace: Remove

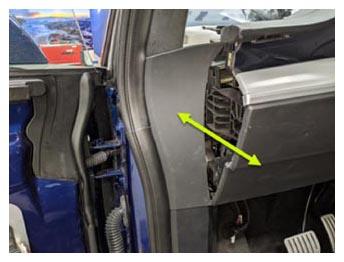

- Open the LH front door and lower the LH front window.

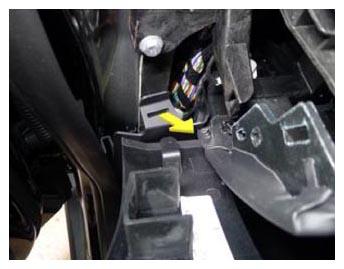

- Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace)
.

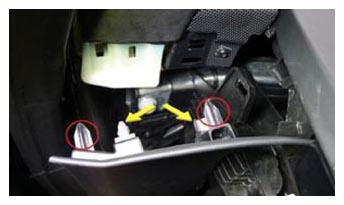

- Release the clips (x2) that attach the LH middle A-pillar trim to the LH upper A-pillar trim and instrument panel sub assembly, and then lift the trim upward and out of the LH lower A-pillar trim to remove it from the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
