Trim - A-Pillar - Middle - LH - Remove And Replace: Install

  1. Position the LH middle A-pillar trim into the LH lower A-pillar trim, and then secure the clips (x2) that attach the middle trim the LH upper A-pillar trim and instrument panel sub assembly.
    NOTE: Make sure the weather seal is seated properly.

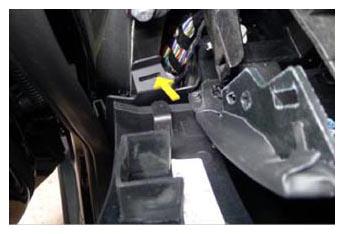

    G15396013Courtesy of TESLA, INC.

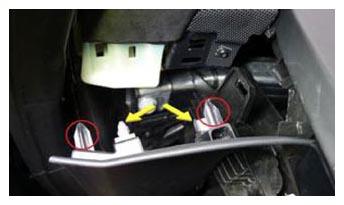

    G15396014Courtesy of TESLA, INC.

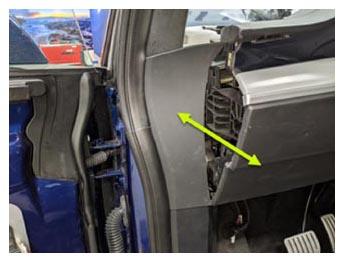

    G15396015Courtesy of TESLA, INC.
  2. Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace) .
  3. Raise the LH front window and close the LH front door.
