Trim - A-Pillar - Lower - LH - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.
- Remove the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace)
- Remove the LH middle A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
- Remove the LH front sill panel trim. See TRIM - SILL PANEL - FRONT - LH (REMOVE AND REPLACE) .

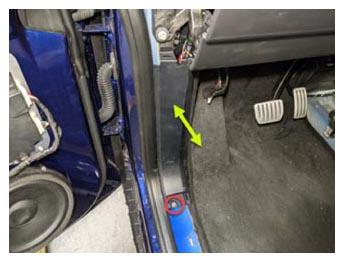

- Remove the bolt and release the clips (x2) that attach the LH lower A-pillar trim to the vehicle, and then remove the trim from the vehicle.
5 N.m (3.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T25 socket
