Trim - A-Pillar - Lower - LH - Remove And Replace: Install

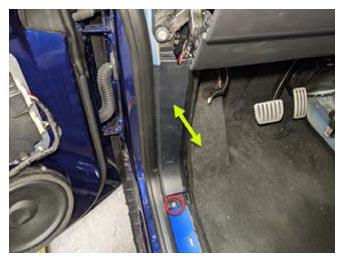

Position the LH lower A-pillar trim into the vehicle, and then install the bolt and secure the clips (x2) that attach the trim to the vehicle.
5 N.m (3.7 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- T25 socket
Courtesy of TESLA, INC.
Install the LH front sill panel trim. See TRIM - SILL PANEL - FRONT - LH (REMOVE AND REPLACE) .
Install the LH middle A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove and Replace)
Raise the LH front window and close the LH front door.
