Racetrack Trim - Upper - LH - Remove And Replace: Remove

  1. Open the LH and RH front doors.
  2. Lower the LH and RH front windows.
  3. Open the LH and RH falcon wing doors.
  4. Move the LH front seat rearward.
  5. Remove the LH sun visor bezel A-pillar trim. See TRIM - A-PILLAR - SUN VISOR BEZEL - LH (REMOVE AND REPLACE) .

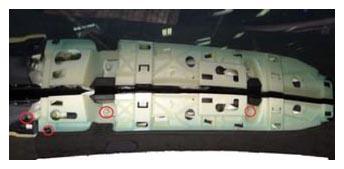

  6. Remove the bolts (x2), screw, and nut that attach the LH upper A-pillar trim to the vehicle.
    NOTE: Discard the nut after removal.
    NOTE: Use of the following tool(s) is recommended:
    • 2 in extension
    • 10 mm hex
    • 13 mm hex
    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket
    G15395961Courtesy of TESLA, INC.

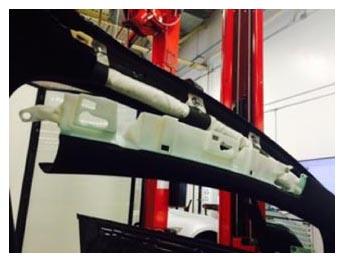

  7. Move the LH upper A-pillar trim for access to the headliner.
    G15395962Courtesy of TESLA, INC.

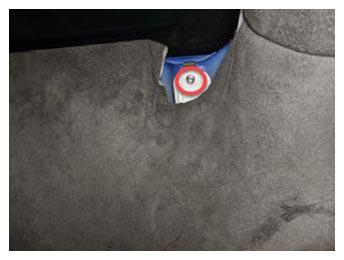

  8. Remove the screw that attaches the LH front end of the headliner to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • 2 in extension
    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket
    G15395963Courtesy of TESLA, INC.

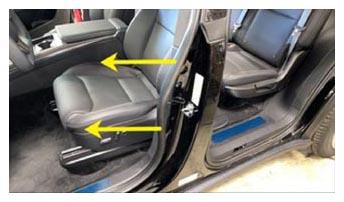

  9. Move the LH front seat forward.
  10. Release the LH front door seal from the B-pillar trim.
    G15395964Courtesy of TESLA, INC.
  11. Remove the LH front sill panel trim. See TRIM - SILL PANEL - FRONT - LH (REMOVE AND REPLACE) .
  12. Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  13. Remove the LH lower B-pillar trim. See TRIM - B-PILLAR - LOWER - LH (REMOVE AND REPLACE) .

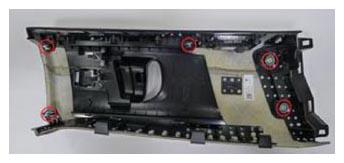

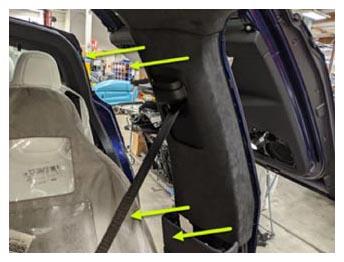

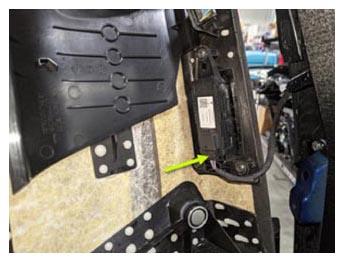

  14. Release the clips (x3) and magnets (x2) that attach the LH upper B-pillar trim to the B-pillar, and then disconnect the LH falcon wing door button electrical connector.
    NOTE: Use of the following tool(s) is recommended:
    • Clip pry tool
    • Plastic trim tool
    • Pocket screwdriver
    G15395965Courtesy of TESLA, INC.
    G15395966Courtesy of TESLA, INC.
    G15395967Courtesy of TESLA, INC.

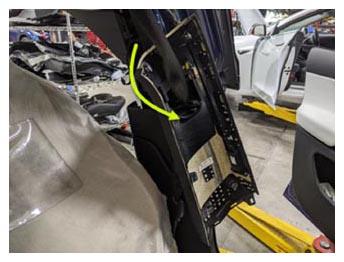

  15. Move the LH upper B-pillar trim aside.
    G15395968Courtesy of TESLA, INC.
  16. Open the liftgate.
  17. Fold the LH 3rd row seat downwards.

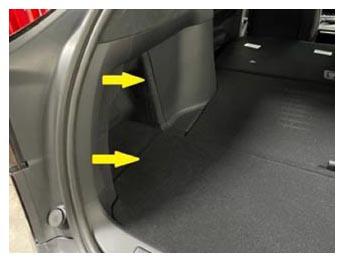

  18. Release the clips (x4) that attach the LH trunk sill side trim to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • Plastic trim tool
    G15395969Courtesy of TESLA, INC.
    G15395970Courtesy of TESLA, INC.
  19. Remove the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  20. Remove the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .

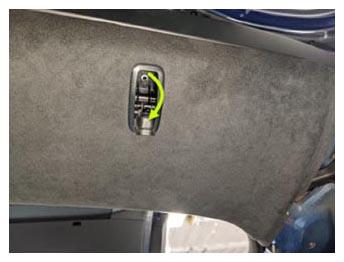

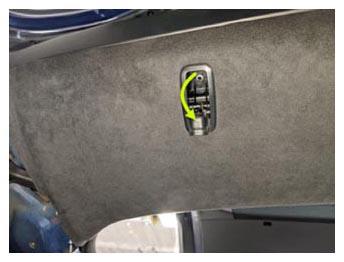

  21. Open the LH and RH side rear coat hooks.
    NOTE: Press the coat hooks inward, and then release to open.
    G15395971Courtesy of TESLA, INC.
    G15395972Courtesy of TESLA, INC.

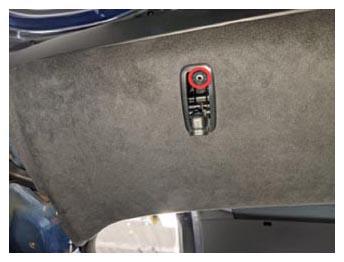

  22. Remove the screws (x2) that attach the LH and RH rear coat hooks to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • 2 in extension
    • Ratchet/torque wrench
    • Torx T20 socket
    G15395973Courtesy of TESLA, INC.
    G15395974Courtesy of TESLA, INC.

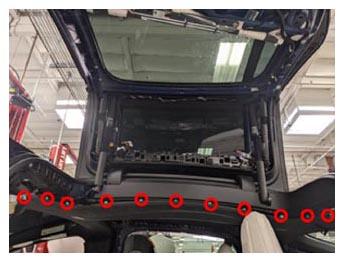

  23. Partially release the clips (x11) that attach the LH headliner to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • Clip pry tool
    • Plastic trim tool
    G15395975Courtesy of TESLA, INC.
  24. Remove the LH front racetrack trim. See RACETRACK TRIM - FRONT - LH (REMOVE AND REPLACE) .
  25. Remove the LH rear racetrack trim. See RACETRACK TRIM - REAR - LH (REMOVE AND REPLACE) .

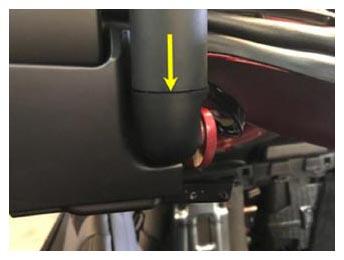

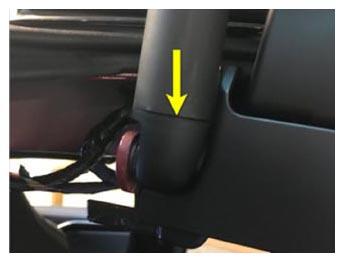

  26. Remove the LH falcon wing door primary strut covers (x2).
    G15395976Courtesy of TESLA, INC.
    G15395977Courtesy of TESLA, INC.

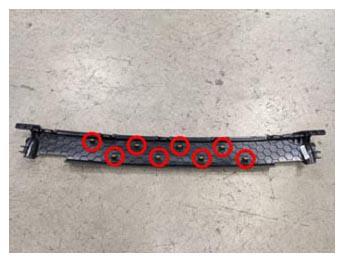

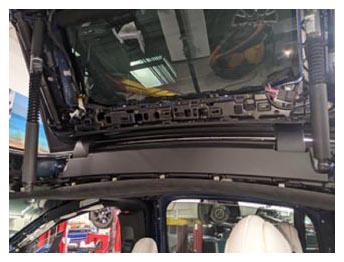

  27. Release the clips (x8) that attach the LH upper racetrack trim to the vehicle, and then remove the trim from the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • Clip pry tool
    G15395978Courtesy of TESLA, INC.
    G15395979Courtesy of TESLA, INC.
