Racetrack Trim - Upper - LH - Remove And Replace: Install

  1. Position the LH upper racetrack trim on the vehicle, and then install the clips (x8) that attach the trim to the vehicle.

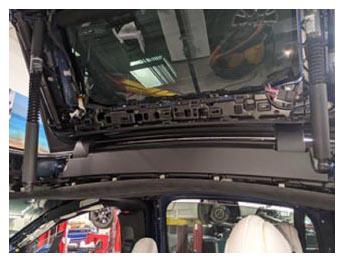

    G15395980Courtesy of TESLA, INC.

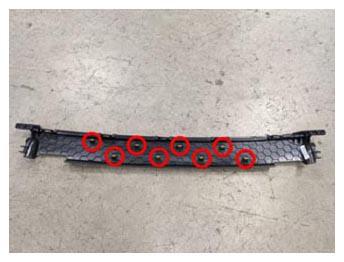

    G15395981Courtesy of TESLA, INC.

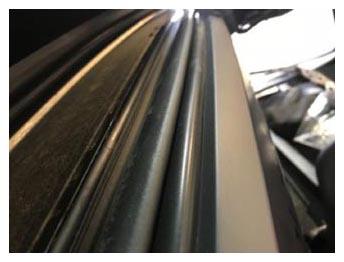

  2. Ensure that the LH falcon wing door seal is seated behind the LH upper racetrack trim.
    G15395982Courtesy of TESLA, INC.

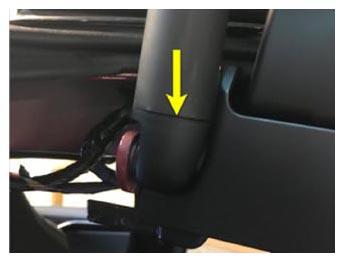

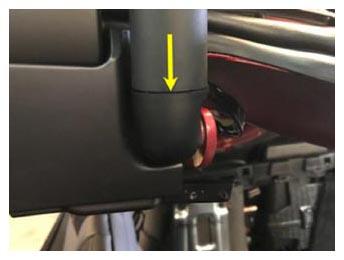

  3. Install the LH falcon wing door primary strut covers (x2).
    G15395983Courtesy of TESLA, INC.
    G15395984Courtesy of TESLA, INC.
  4. Install the LH rear racetrack trim. See RACETRACK TRIM - REAR - LH (REMOVE AND REPLACE) .
  5. Install the LH front racetrack trim. See RACETRACK TRIM - FRONT - LH (REMOVE AND REPLACE) .

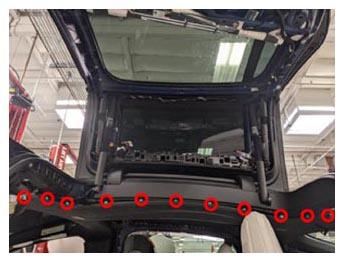

  6. Install the clips (x11) that attach the LH headliner to the vehicle.
    G15395985Courtesy of TESLA, INC.
  7. Install the screws (x2) that attach the LH and RH rear coat hooks to the vehicle.

    2.5 N.m (1.8 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • Ratchet/torque wrench
    • Torx T20 socket

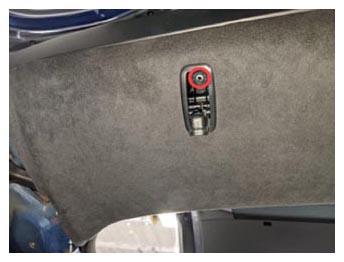

    G15395986Courtesy of TESLA, INC.

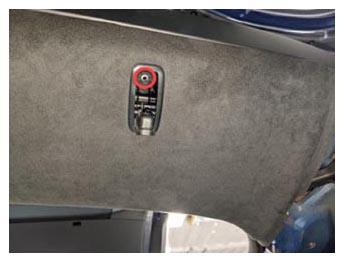

    G15395987Courtesy of TESLA, INC.

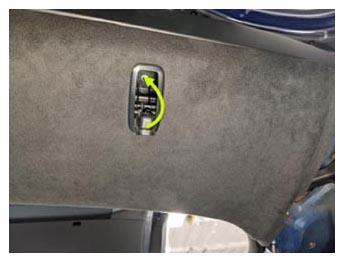

  8. Close the LH and RH side rear coat hooks.

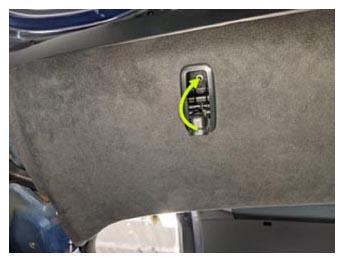

    G15395988Courtesy of TESLA, INC.
    G15395989Courtesy of TESLA, INC.
  9. Install the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  10. Install the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  11. Install the clips (x4) that attach the LH trunk sill side trim to the vehicle.
    G15395990Courtesy of TESLA, INC.

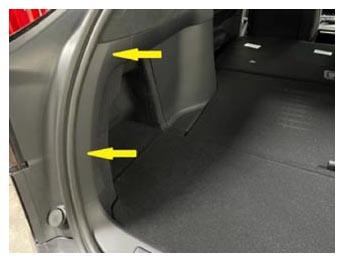

    G15395991Courtesy of TESLA, INC.
  12. Move the LH 3rd row seat to original position.
  13. Close the liftgate.
  14. Install the screw that attaches the LH front end of the headliner to the vehicle.

    2 N.m (1.5 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • 2 in extension
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    • Torx T20 socket

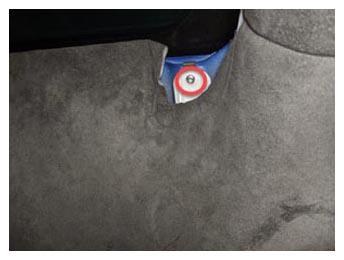

    G15395992Courtesy of TESLA, INC.

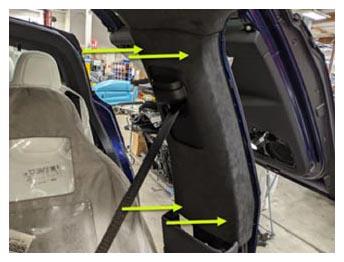

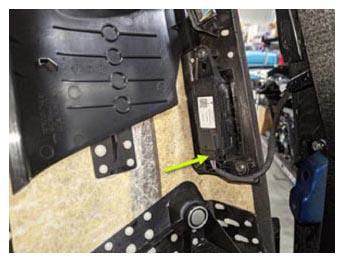

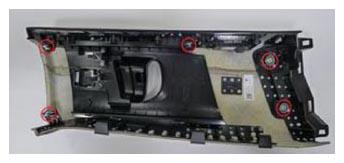

  15. Connect the LH falcon wing door button electrical connector, and then install the clips (x3) and magnets (x2) that attach the LH upper B-pillar trim to the B-pillar.
    NOTE: Replace the clips if damaged.
    G15395993Courtesy of TESLA, INC.
    G15395994Courtesy of TESLA, INC.
    G15395995Courtesy of TESLA, INC.
  16. Install the LH lower B-pillar trim. See TRIM - B-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  17. Install the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  18. Install the LH front sill panel trim. See TRIM - SILL PANEL - FRONT - LH (REMOVE AND REPLACE) .

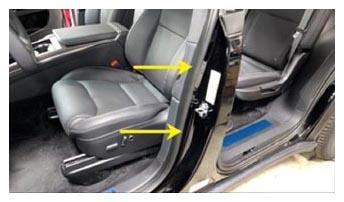

  19. Fully seat the LH front door seal on the B-pillar trim.
    G15395996Courtesy of TESLA, INC.
  20. Move the LH front seat rearward.
  21. Position the LH upper A-pillar trim for installation.

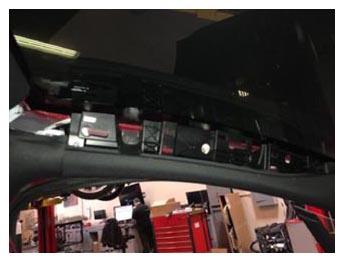

    G15395997Courtesy of TESLA, INC.

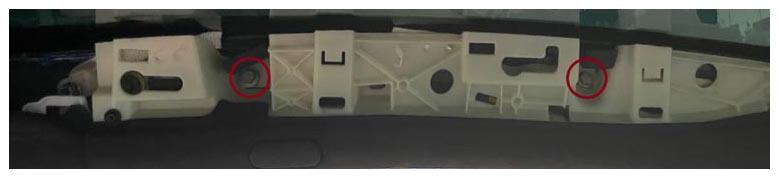

  22. Install the bolts (x2) that attach the LH upper A-pillar trim to the vehicle.

    5 N.m (3.7 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • 2 in extension
    • 10 mm hex
    • Flex head ratchet/flex head torque wrench
    G15395998Courtesy of TESLA, INC.

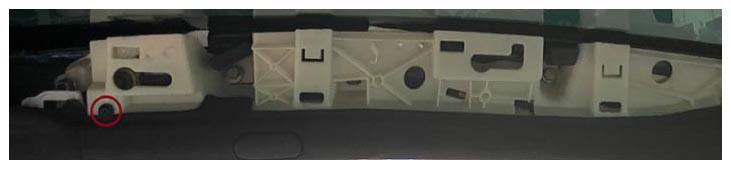

  23. Install the screw that attaches the LH upper A-pillar trim to the vehicle.

    2.5 N.m (1.8 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket
    G15395999Courtesy of TESLA, INC.
  24. Install the nut that attaches the LH upper A-pillar trim to the vehicle.

    5 N.m (3.7 ft-lbs)

    NOTE: Install a new nut.
    NOTE: Use of the following tool(s) is recommended:
    • 2 in extension
    • 13 mm hex
    • Flex head ratchet/flex head torque wrench
    G15396000Courtesy of TESLA, INC.
  25. Install the LH sun visor bezel A-pillar trim. See TRIM - A-PILLAR - SUN VISOR BEZEL - LH (REMOVE AND REPLACE) .
  26. Move the LH front seat to original position.
  27. Close the LH and RH falcon wing doors.
  28. Raise the LH and RH front windows.
  29. Close the LH and RH front doors.
