Racetrack Trim - Rear - LH - Remove And Replace: Remove

  1. Open the LH and RH front doors.
  2. Lower the LH and RH front windows.
  3. Open the LH and RH falcon wing doors.
  4. Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  5. Open the liftgate.
  6. Fold the LH 3rd row seat downward.

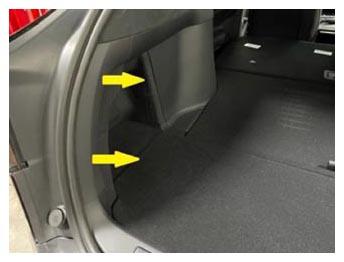

  7. Release the clips (x4) that attach the LH trunk sill side trim to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • Plastic trim tool
    G15395937Courtesy of TESLA, INC.
    G15395938Courtesy of TESLA, INC.
  8. Remove the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  9. Remove the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  10. Remove the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .

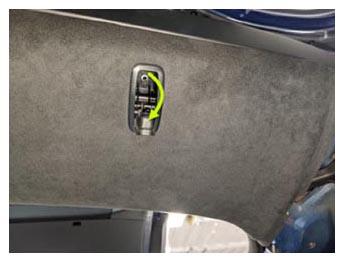

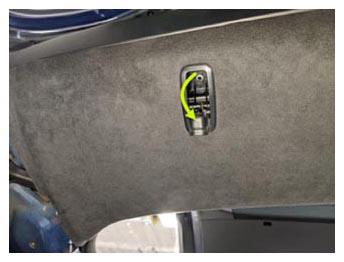

  11. Open the LH and RH side rear coat hooks.
    NOTE: Press the coat hooks inward, and then release to open.
    G15395939Courtesy of TESLA, INC.
    G15395940Courtesy of TESLA, INC.

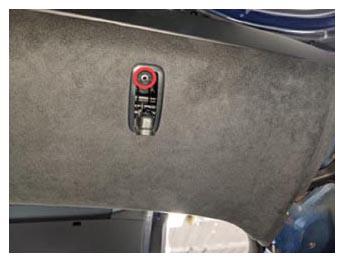

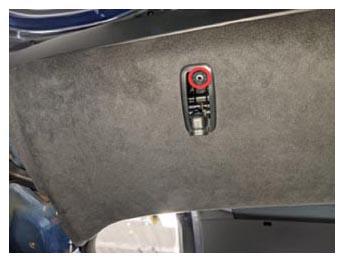

  12. Remove the screws (x2) that secure the LH and RH rear coat hooks to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • 2 in extension
    • Ratchet/torque wrench
    • Torx T20 socket
    G15395941Courtesy of TESLA, INC.
    G15395942Courtesy of TESLA, INC.

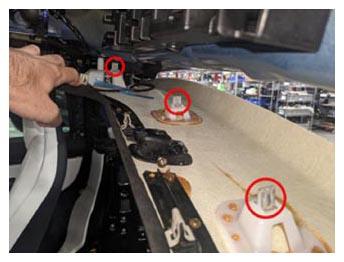

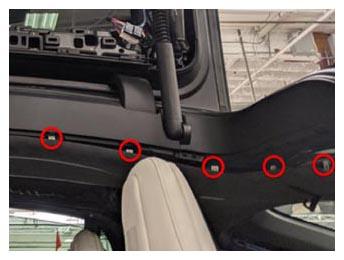

  13. Partially release the clips (x8) that attach the LH rear headliner to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • Clip pry tool
    • Plastic trim tool
    G15395943Courtesy of TESLA, INC.
    G15395944Courtesy of TESLA, INC.

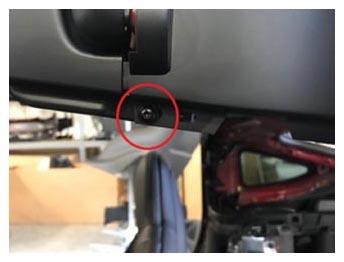

  14. Remove the screw that secures the LH rear racetrack trim to the spine racetrack.
    NOTE: Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket
    G15395945Courtesy of TESLA, INC.

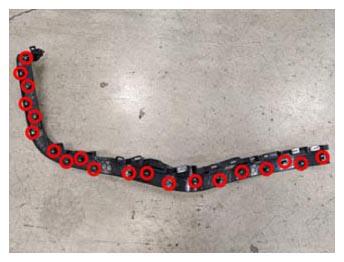

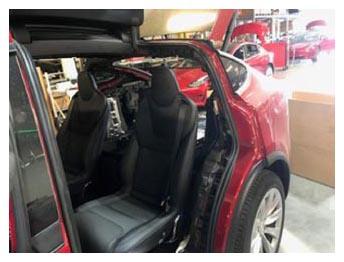

  15. Release the clips (x21) that attach the LH rear racetrack trim to the vehicle, and then remove the trim from the vehicle.
    NOTE: Release the clips from the bottom of the trim first, and then work towards the top.
    NOTE: Use of the following tool(s) is recommended:
    • Clip pry tool
    G15395946Courtesy of TESLA, INC.
    G15395947Courtesy of TESLA, INC.
