Racetrack Trim - Lower - LH - Remove And Replace: Remove
- Open the LH and RH front doors.
- Lower the LH and RH front windows.
- Open the LH and RH falcon wing doors.
- Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
- Open the liftgate.
- Fold the LH 3rd row seat downward.

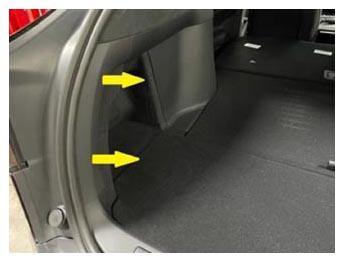

- Release the clips (x4) that attach the LH trunk sill side trim to the vehicle.
NOTE:
Use of the following tool(s) is recommended:
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Remove the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
- Remove the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .

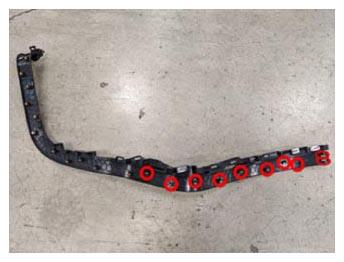

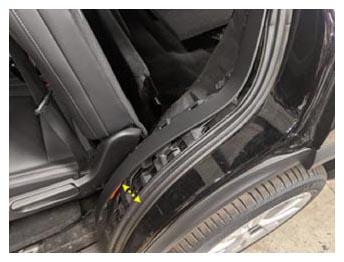

- Release the clips (x10) that attach the lower portion of the LH rear racetrack trim to the vehicle, and then move the trim inward to gain access to the LH lower racetrack trim.
NOTE:
Use of the following tool(s) is recommended:
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

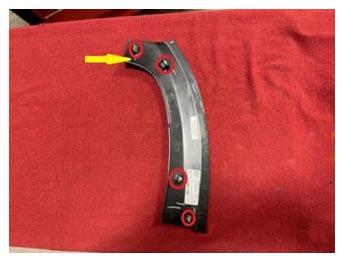

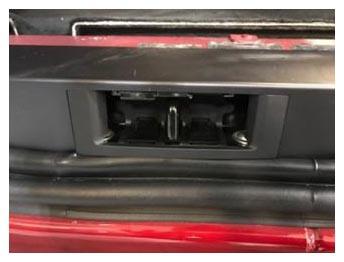

- Release the tabs (x4) that attach the LH rear door striker insert to the LH lower racetrack trim, and then remove the insert from the vehicle.
NOTE:
Use of the following tool(s) is recommended:
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

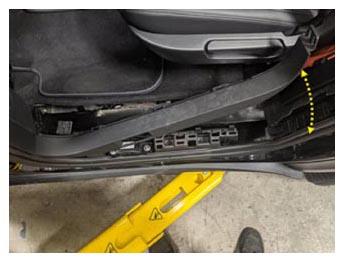

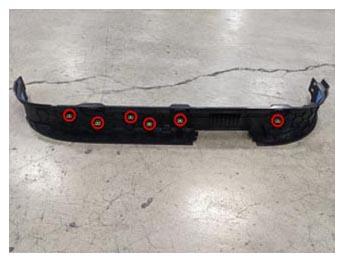

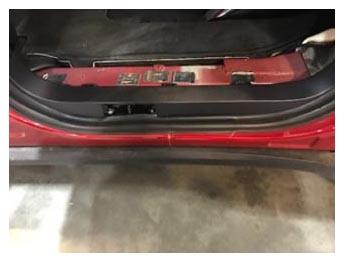

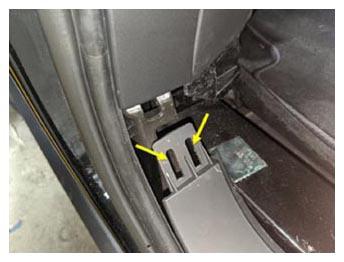

- Release the clips (x6) that attach the inboard side of the LH lower racetrack trim to the vehicle, rotate the trim upwards to release the clips (x2) that attach the trim to the lower B-pillar racetrack bracket, and then remove the trim from the vehicle.
NOTE:
Use of the following tool(s) is recommended:
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
