Racetrack Trim - Lower - LH - Remove And Replace: Install

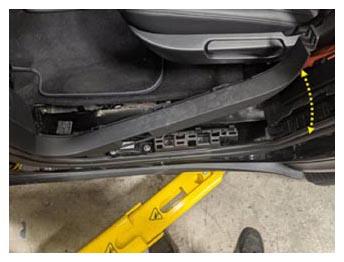

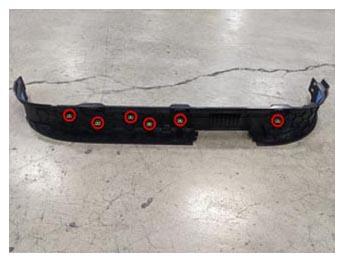

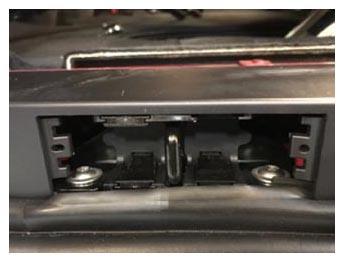

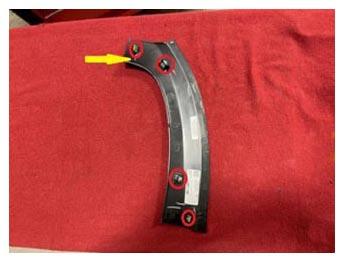

- Position the LH lower racetrack trim on the vehicle, install the clips (x2) that attach the trim to the lower B-pillar racetrack bracket, and then rotate the trim downwards to install the clips (x6) that attach the trim to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

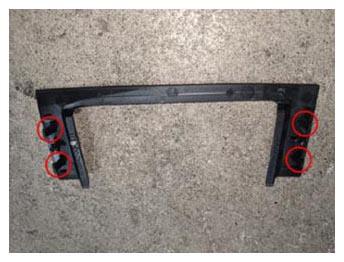

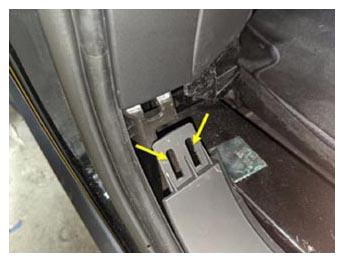

- Position the LH rear door striker insert on the vehicle, and then install the tabs (x4) that attach the insert to the LH lower racetrack trim.
NOTE:
4x tabs
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

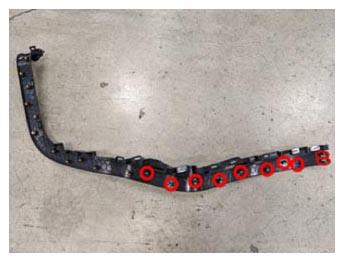

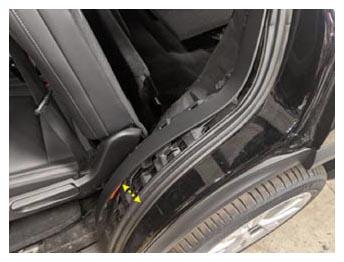

- Install the clips (x10) that attach the lower portion of the LH rear racetrack trim to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

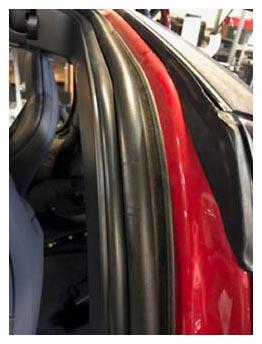

- Ensure that the falcon wing door seal is seated behind the LH rear racetrack trim.
 Courtesy of TESLA, INC.
|
- Install the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
- Install the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .

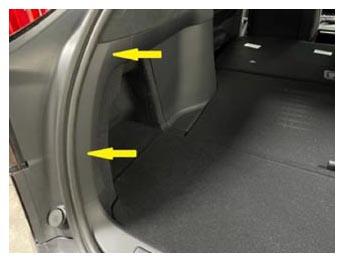

- Install the clips (x4) that attach the LH trunk sill side trim to the vehicle.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Move the LH 3rd row seat to original position.
- Close the liftgate.
- Install the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
- Close the LH and RH falcon wing doors.
- Raise the LH and RH front windows.
- Close the LH and RH front doors.
