Racetrack Trim - Front - LH - Remove And Replace: Remove

  1. Open the LH and RH front doors.
  2. Lower the LH and RH front windows.
  3. Open the LH and RH falcon wing doors.
  4. Move the LH front seat rearward.
  5. Remove the LH sun visor bezel A-pillar trim. See TRIM - A-PILLAR - SUN VISOR BEZEL - LH (REMOVE AND REPLACE) .
  6. Remove the bolts (x2), screw, and nut that attach the LH upper A-pillar trim to the vehicle.
    NOTE: Discard the nut after removal.

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • 10 mm hex
    • 13 mm socket
    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket

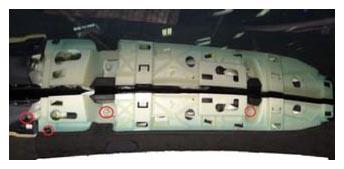

    G15395890Courtesy of TESLA, INC.
  7. Move the LH upper A-pillar trim to gain access to the headliner.

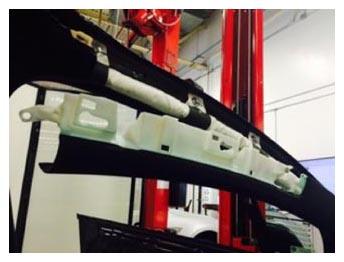

    G15395891Courtesy of TESLA, INC.
  8. Remove the screw that attaches the LH front end of the headliner to the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • 2 in extension
    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket

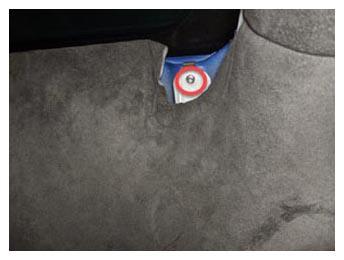

    G15395892Courtesy of TESLA, INC.

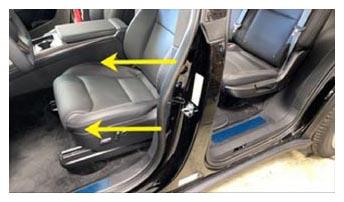

  9. Move the LH front seat forward.
  10. Release the LH front door seal from the B-pillar trim.
    G15395893Courtesy of TESLA, INC.
  11. Remove the LH front sill panel trim. See TRIM - SILL PANEL - FRONT - LH (REMOVE AND REPLACE) .
  12. Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  13. Remove the LH lower B-pillar trim. See TRIM - B-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  14. Release the clips (x3) and magnets (x2) that attach the LH upper B-pillar trim to the B-pillar, and then disconnect the LH falcon wing door button electrical connector.

    Tip: Use of the following tool(s) is recommended:

    • Clip pry tool
    • Plastic trim tool
    • Pocket screwdriver

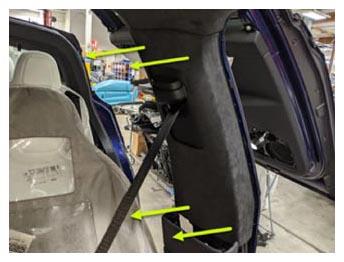

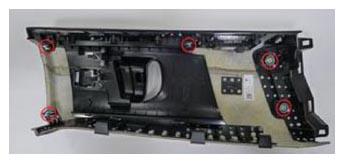

    G15395894Courtesy of TESLA, INC.

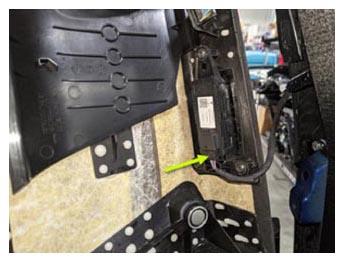

    G15395895Courtesy of TESLA, INC.
    G15395896Courtesy of TESLA, INC.
  15. Move the LH upper B-pillar trim aside.

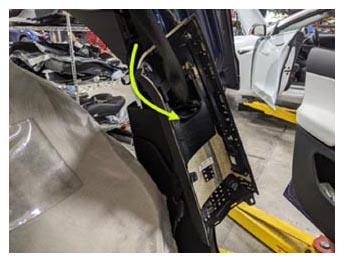

    G15395897Courtesy of TESLA, INC.
  16. Partially release the clips (x5) that attach the LH front headliner to the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • Clip pry tool
    • Plastic trim tool

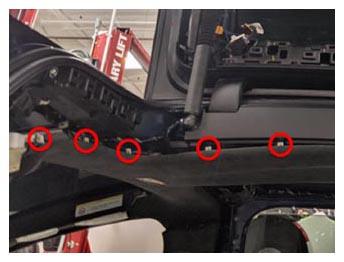

    G15395898Courtesy of TESLA, INC.
  17. Remove the screw that attaches the LH front racetrack trim to the spine racetrack.
    NOTE: Use of the following tool(s) is recommended:
    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket

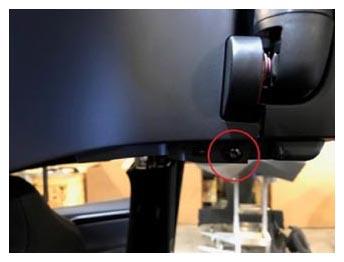

    G15395899Courtesy of TESLA, INC.
  18. Starting at the bottom of the LH front racetrack trim and working upwards, release the clips (x22) that attach the racetrack trim to the vehicle, and then remove the trim from the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • Clip pry tool
    • Plastic trim tool

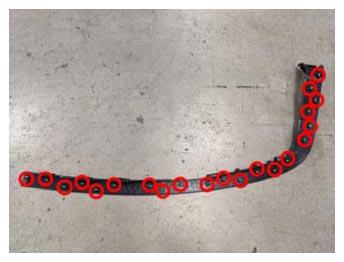

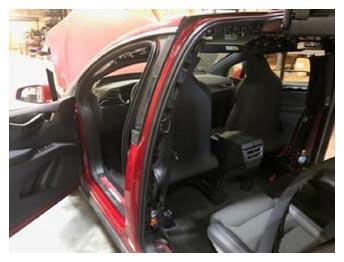

    G15395900Courtesy of TESLA, INC.
    G15395901Courtesy of TESLA, INC.
