Bracket - Zone - C-Pillar - Mid - LH (6/7 Seat) - Remove And Replace: Remove
- Open the LH rear door.
- Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
- Remove the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE) .
- Remove the side trunk load floor. See TRUNK LOAD FLOOR - SIDE (REMOVE AND REPLACE) .

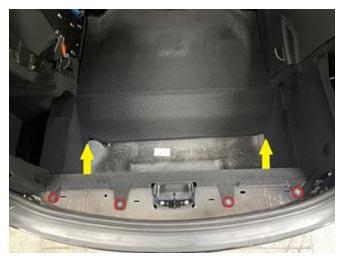

- Remove the trunk tub floor insulator

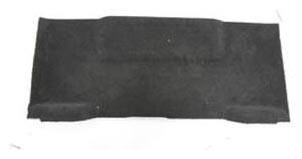

- Remove the trunk carpet
- Remove the LH and RH side rear trunk garnishes. See GARNISH - REAR TRUNK - SIDE - LH (REMOVE AND REPLACE) .

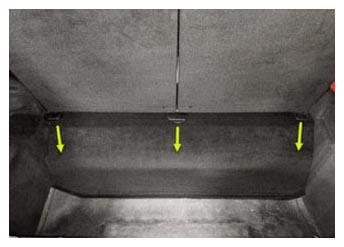

- Remove the trunk sill trim. See TRIM - SILL - TRUNK (REMOVE AND REPLACE) .

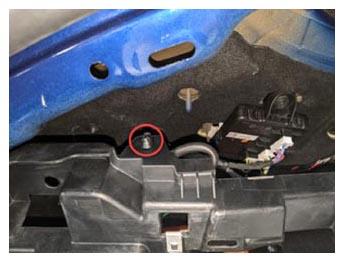

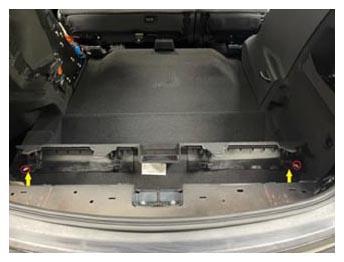

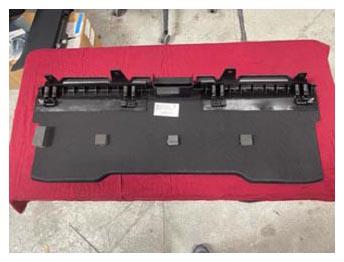

- Remove the clips (x6) that attach the rear wall load support to the vehicle.

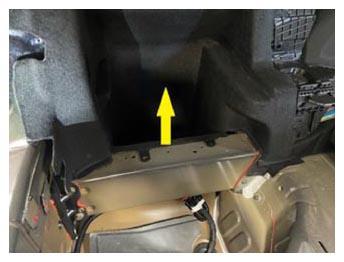

- Remove the LH crush can bracket. See TRIM - CRUSH CAN - REAR TRUNK - LH (REMOVE AND REPLACE) .

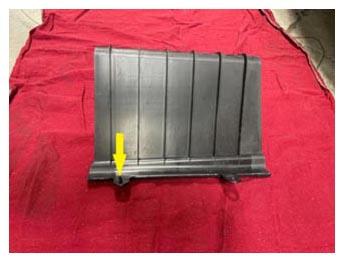

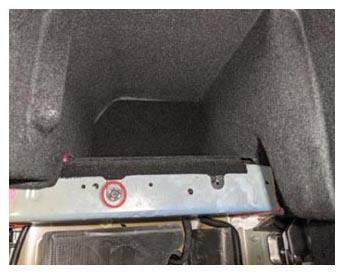

- Remove the push clip that attaches the LH soft trim pocket bracket to the vehicle, and then remove the bracket from the vehicle.
- Remove the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
- Remove the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
- Fold the LH 3rd row seat back into the down position.
- Remove the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
- Release the clip that attaches the charge port manual cable release to the LH mid C-pillar zone bracket.

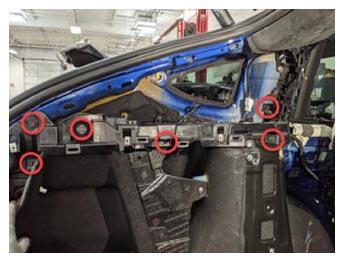

- Remove the screws (x2) and push clips (x4) that attach the LH mid C-pillar zone bracket to the vehicle, and then remove the bracket from the vehicle.
2.5 N.m (1.8 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T20 socket
