Bracket - Zone - C-Pillar - Mid - LH (5 Seat) - Remove And Replace: Remove

  1. Open the LH rear door.
  2. Open the liftgate.
  3. Fold the 2nd row seat backs to the down position.
  4. Remove the front trunk load floor. See TRUNK LOAD FLOOR - FRONT (REMOVE AND REPLACE) .
  5. Remove rear trunk gap hider. See GAP HIDER - TRUNK (5 SEAT) (REMOVE AND REPLACE) .
  6. Remove the LH trunk load floor bracket cover. See COVER - BRACKET - TRUNK LOAD FLOOR - LH (REMOVE AND REPLACE) .
  7. Remove the LH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove And Replace) .
  8. Remove the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  9. Remove the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  10. Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  11. Remove the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  12. Remove the push clips (x3) and screws (x2) that attach the LH mid C-pillar zone bracket to the vehicle, and then remove the bracket from the vehicle.

    2.5 N.m (1.8 ft-lbs)

    Use of the following tool(s) is recommended:

    • T20 socket

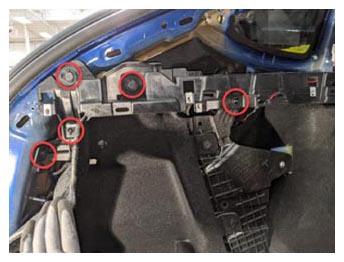

    G15395791Courtesy of TESLA, INC.
