Bracket - Zone - C-Pillar - Mid - LH (5 Seat) - Remove And Replace: Install

  1. Position the LH mid C-pillar zone bracket into the vehicle, and then install the push clips (x3) and screws (x2) that attach the bracket to the vehicle.

    2.5 N.m (1.8 ft-lbs)

    Use of the following tool(s) is recommended:

    • T20 socket

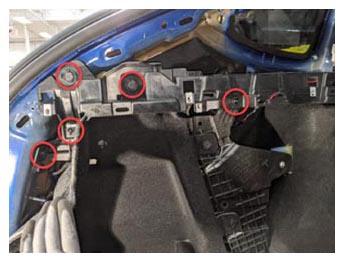

    G15395792Courtesy of TESLA, INC.
  2. Install the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  3. Install the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  4. Install the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  5. Install the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  6. Install the LH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove And Replace) .
  7. Install rear trunk gap hider. See GAP HIDER - TRUNK (5 SEAT) (REMOVE AND REPLACE) .
  8. Install the LH trunk load floor bracket cover. See COVER - BRACKET - TRUNK LOAD FLOOR - LH (REMOVE AND REPLACE) .
  9. Install the front trunk load floor. See TRUNK LOAD FLOOR - FRONT (REMOVE AND REPLACE) .
  10. Move the 2nd row seat backs to the original position.
  11. Close the liftgate.
