Bracket - Racetrack - Spine - LH - Remove And Replace: Remove

  1. Open the LH and RH front doors.
  2. Lower the LH and RH front windows.
  3. Open the LH and RH falcon wing doors.
  4. Move the LH front seat rearward.
  5. Remove the LH sun visor bezel A-pillar trim. See TRIM - A-PILLAR - SUN VISOR BEZEL - LH (REMOVE AND REPLACE) .
  6. Remove the bolts (x2), screw, and nut that attach the LH upper A-pillar trim to the vehicle.
    NOTE: Discard the nut after removal.
    NOTE: Use of the following tool(s) is recommended:
    • 2 in extension
    • 10 mm hex
    • 13 mm hex
    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket

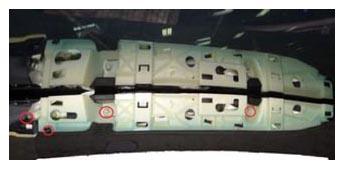

    G15395734Courtesy of TESLA, INC.

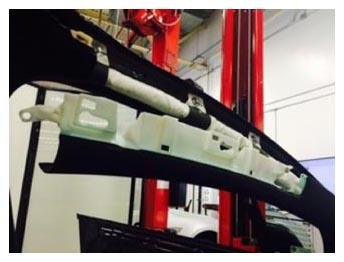

  7. Move the LH upper A-pillar trim to access the headliner.
    G15395735Courtesy of TESLA, INC.
  8. Remove the screw that attaches the LH front end of the headliner to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • 2 in extension
    • Flex head ratchet/flex head torque wrench
    • Torx T20 socket

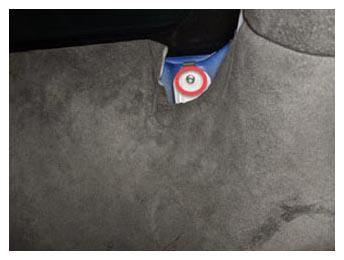

    G15395736Courtesy of TESLA, INC.
  9. Move the LH front seat forward.
  10. Release the LH front door seal from the B-pillar trim.

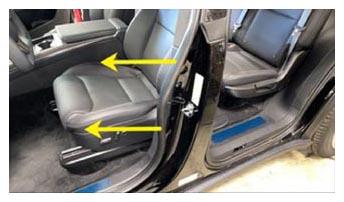

    G15395737Courtesy of TESLA, INC.
  11. Remove the LH front sill panel trim. See TRIM - SILL PANEL - FRONT - LH (REMOVE AND REPLACE) .
  12. Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  13. Remove the LH lower B-pillar trim. See TRIM - B-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  14. Remove the LH upper B-pillar trim. See TRIM - B-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  15. Open the liftgate.
  16. Fold the LH 3rd row seat downwards.
  17. Release the clips (x4) that attach the LH trunk sill side trim to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • Plastic trim tool

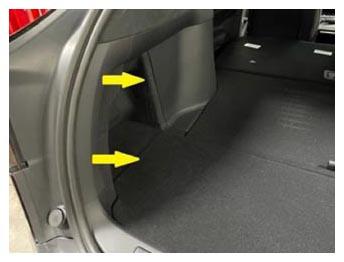

    G15395738Courtesy of TESLA, INC.
    G15395739Courtesy of TESLA, INC.
  18. Remove the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  19. Remove the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  20. Open the LH and RH side rear coat hooks.
    NOTE: Press the coat hooks inward, and then release to open.

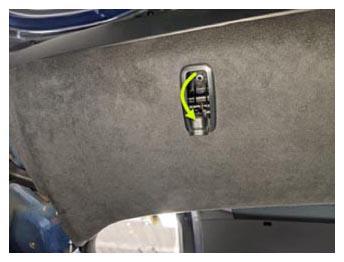

    G15395740Courtesy of TESLA, INC.

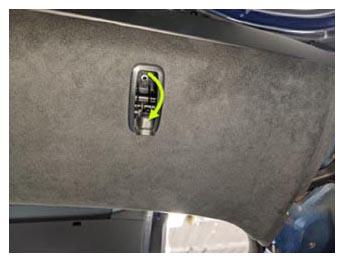

    G15395741Courtesy of TESLA, INC.

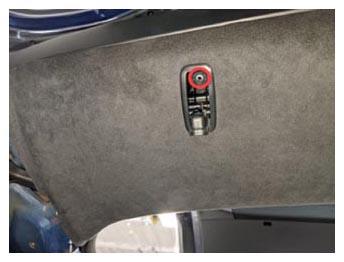

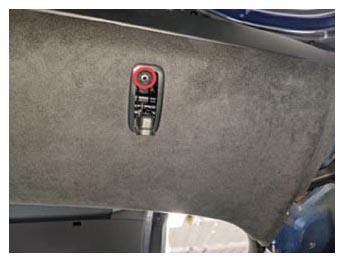

  21. Remove the screws (x2) that attach the LH and RH rear coat hooks to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • 2 in extension
    • Ratchet/torque wrench
    • Torx T20 socket
    G15395742Courtesy of TESLA, INC.
    G15395743Courtesy of TESLA, INC.

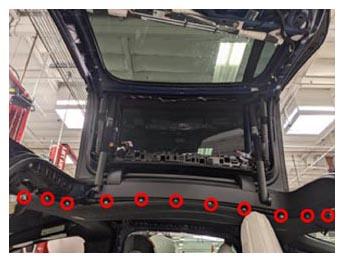

  22. Partially release the clips (x11) that attach the LH headliner to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • Clip pry tool
    • Plastic trim tool
    G15395744Courtesy of TESLA, INC.
  23. Remove the LH front racetrack trim. See RACETRACK TRIM - FRONT - LH (REMOVE AND REPLACE) .
  24. Remove the LH rear racetrack trim. See RACETRACK TRIM - REAR - LH (REMOVE AND REPLACE) .

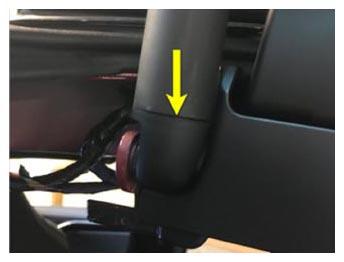

  25. Remove the LH falcon wing door primary strut covers (x2).
    G15395745Courtesy of TESLA, INC.

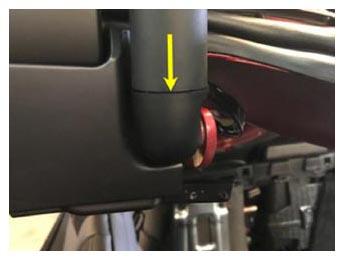

    G15395746Courtesy of TESLA, INC.
  26. Remove the LH upper racetrack trim. See RACETRACK TRIM - UPPER - LH (REMOVE AND REPLACE) .
  27. Remove the bolts (x3) that attach the LH spine racetrack bracket to the vehicle, and then remove the bracket from the vehicle.

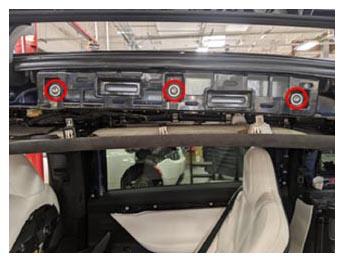

    G15395747Courtesy of TESLA, INC.
