Bracket - Racetrack - Sill - LH - Remove And Replace: Install

  1. Position the LH rear sill racetrack bracket on the vehicle, and then install the bolts (x3) that secure the bracket to the vehicle.

    4.5 N.m (3.3 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • 4 in extension
    • Flex head ratchet/flex head torque wrench
    • Ratchet/torque wrench
    • Torx T25 socket

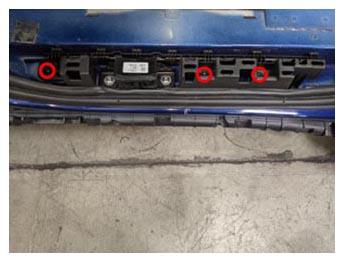

    G15395727Courtesy of TESLA, INC.
  2. Install the LH lower racetrack trim. See RACETRACK TRIM - LOWER - LH (REMOVE AND REPLACE) .
  3. Install the clips (x10) that attach the lower portion of the LH C-pillar racetrack to the vehicle.

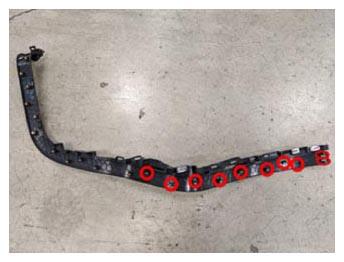

    G15395728Courtesy of TESLA, INC.

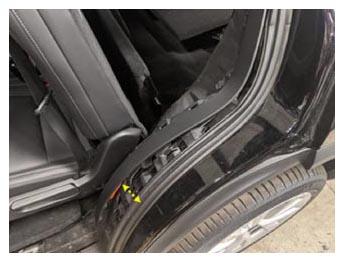

    G15395729Courtesy of TESLA, INC.

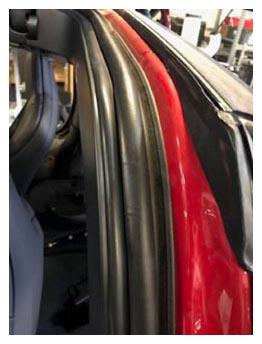

  4. Ensure that the LH falcon wing door seal is seated behind the LH C-pillar racetrack.
    G15395730Courtesy of TESLA, INC.
  5. Install the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  6. Install the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  7. Install the clips (x4) that attach the LH trunk sill side trim to the vehicle.
    G15395731Courtesy of TESLA, INC.

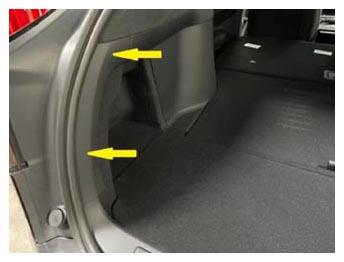

    G15395732Courtesy of TESLA, INC.
  8. Move the LH 3rd row seat to original position.
  9. Close the liftgate.
  10. Install the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  11. Close the LH and RH falcon wing doors.
  12. Raise the LH and RH front windows.
  13. Close the LH and RH front doors.
