Bracket - Racetrack - Header - Rear - LH - Remove And Replace: Remove

  1. Open the LH and RH front doors.
  2. Lower the LH and RH front windows.
  3. Open the LH and RH falcon wing doors.
  4. Remove the LH rear sill panel trim. See TRIM - SILL PANEL - REAR - LH (REMOVE AND REPLACE) .
  5. Open the liftgate.
  6. Fold the LH 3rd row seat downwards.

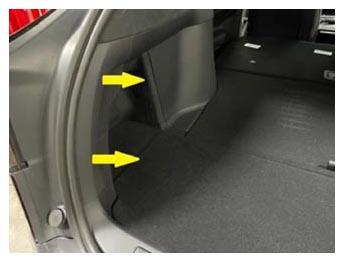

  7. Release the clips (x4) that attach the LH trunk sill side trim to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • Plastic trim tool
    G15395702Courtesy of TESLA, INC.
    G15395703Courtesy of TESLA, INC.
  8. Remove the LH mid C-pillar trim. See TRIM - C-PILLAR - MID - LH (REMOVE AND REPLACE) .
  9. Remove the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  10. Remove the LH upper C-pillar trim. See TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
  11. Open the LH and RH side rear coat hooks.
    NOTE: Press the coat hooks inward, and then release to open.

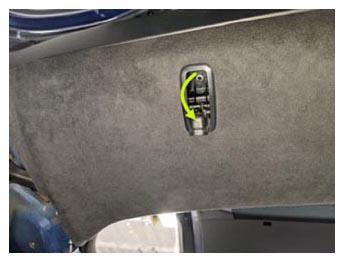

    G15395704Courtesy of TESLA, INC.

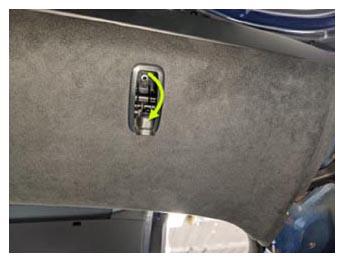

    G15395705Courtesy of TESLA, INC.
  12. Remove the screws (x2) that secure the LH and RH rear coat hooks to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • 2 in extension
    • Ratchet/torque wrench
    • Torx T20 socket

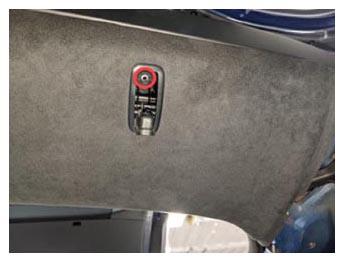

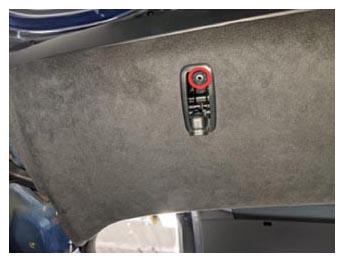

    G15395706Courtesy of TESLA, INC.
    G15395707Courtesy of TESLA, INC.
  13. Partially release the clips (x11) that attach the LH headliner to the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • Clip pry tool
    • Plastic trim tool

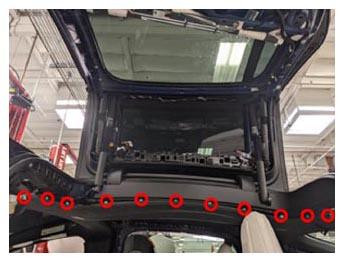

    G15395708Courtesy of TESLA, INC.
  14. Remove the LH rear racetrack trim. See RACETRACK TRIM - REAR - LH (REMOVE AND REPLACE) .
  15. Remove the bolts (x2) and clip that secure the LH rear header racetrack bracket to the vehicle, and then remove the bracket from the vehicle.
    NOTE: Use of the following tool(s) is recommended:
    • 1/4 in to 3/8 in adapter
    • Flex head ratchet/flex head torque wrench
    • Plastic trim tool
    • Torx T40 socket

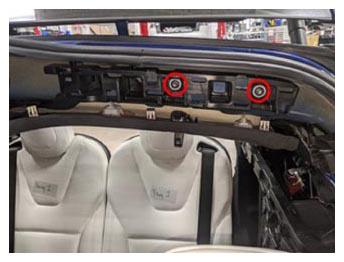

    G15395709Courtesy of TESLA, INC.

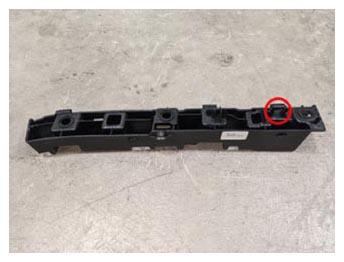

    G15395710Courtesy of TESLA, INC.
